ST_CrankModuleItf - General Information
|
Type: |
data structure |
|
Available as of: |
V1.0.2.0 |
|
Inherits from: |
- |
|
Versions: |
current version |

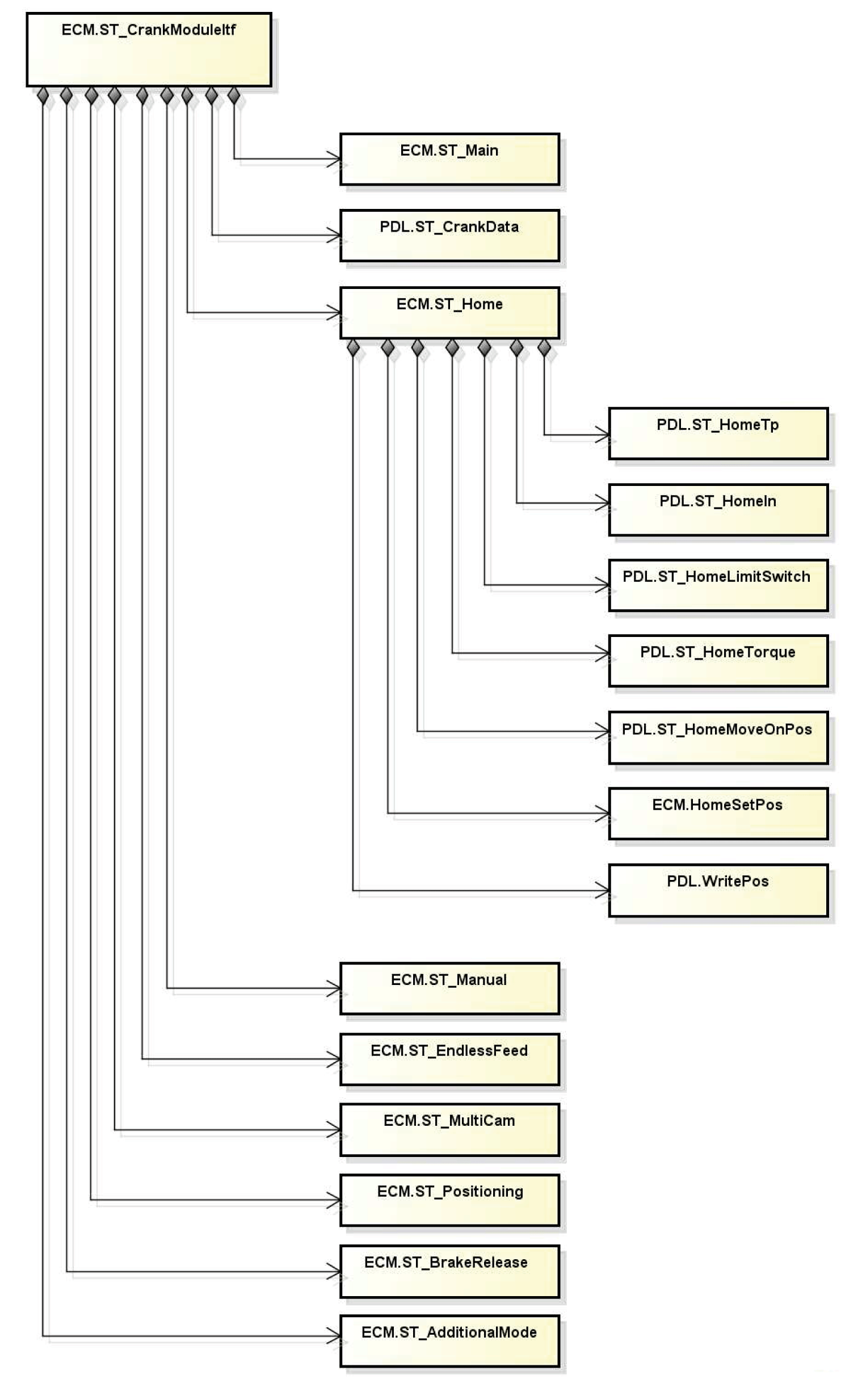

The structure contains all module-specific parameters and return values for the FB_CrankModule. The POUs, data structures, enumerations and constants of the crank module have to be addressed via the ECM namespace.
|
Variable |
Data type |
Description |
|---|---|---|
|
stMain |
ST_Main |
Cross-operation mode parameters and return value |
|
stCrank |
PDL.ST_CrankData |
Crank parameterization |
|
stHome |
ST_Home |
Parameters and return values of the operation mode Homing |
|
stManual |
ST_Manual |
Parameters and return values of the operation mode Manual |
|
stEndless |
ST_EndlessFeed |
Parameters and return values of the operation modes Endless and Endlesslls |
|
stMultiCam |
ST_MultiCam |
Parameters and return values of the operation mode MultiCam |
|
stPos |
ST_Positioning |
Parameters and return values of the operation mode Positioning |
|
stBrake |
ST_BrakeRelease |
Parameters and return values of the operation mode Brake |
|
stAdditional |
ST_AdditionalMode |
Parameters and return values of the operation mode Additional |
