Time-Stamped Outputs

Contents of This Topic

This topic contains the following information:

oGeneral information on time-stamped outputs

oEdge generation cycle

oCalculating a time-stamp

oConfiguration of a time-stamped output

oExample implementation

oInternal time stamp buffer

oTime stamp not valid

General Information on Time-Stamped Outputs

The time-stamped outputs can be handled via the I/O mapping channels of the module.

You can transmit one pulse (consisting of one rising edge and one falling edge) per cycle to the time-stamped output unit on the module.

The following I/O mapping channels manage each of the time-stamped outputs:

I/O mapping channel	Meaning	Data type
EdgeGen0xEnable	Set to 1 to enable the time-stamped output unit. Set to 0 to disable the time-stamped output unit.	BYTE
EdgeGen0xSequence	If new time-stamped data is to be applied to the module, the sequence number must be increased. For each pulse data transmitted to the time-stamped unit, this sequence must be increased by 1.	BYTE
EdgeGen0xTimestamp	The absolute time-stamp when the rising edge is generated. The time-stamp can be calculated with the SystemInterface function FC_GetRelativeTM5Nettime16Bit ().	WORD
EdgeGen0xOffset2	Relative offset in μs when the falling edge is generated. The module generates the falling edge at the absolute time EdgeGen0xTimestamp + EdgeGen0xOffset2.	WORD
EdgeGen0xEnableReadback	Reads back the value of EdgeGen0xEnable in the time-stamped unit of the module.	BYTE
EdgeGen0xSequenceReadback	Reads back the value of EdgeGen0xSequence in the timestamped unit of the module. This read back value shows the EdgeGen0xSequence if the timestamped unit accepted the given pulse (EdgeGen0xTimestamp + EdgeGen0xOffset2). If the EdgeGenUnit0xTimestampFifoLim is exceeded, the EdgeGen0xSequenceReadback shows the last EdgeGen0xSequence that was accepted.	BYTE

Edge Generation Cycle

The user parameters of timestamped output configuration profiles provide the Edge generation cycle parameter.

This parameter defines how often the time-stamped output unit can generate pulses.

In one Edge generation cycle, only one pulse (consisting of 1 rising edge and 1 falling edge) can be generated.

Calculating a Time-Stamp

To calculate a time-stamp relatively to the beginning of the last Real Time Process (RTP) cycle, the following function can be used:

FUNCTION FC_GetTM5Nettime16Bit : DINT
VAR_INPUT
  i_stLogAddrTM5 : ST_LogicalAddress;
  i_wRTPOffset : WORD;
END_VAR
VAR_IN_OUT
  iq_wTM5Nettime : WORD;
END_VAR

The function returns

0   OK
-1   i_stLogAdrTM5 invalid
-2   Calculation not possible because the Sercos bus is not in phase 4
-3   Calculation not possible because the device is virtual
-4   I_ wRTPOffset is too low
-5   I_ wRTPOffset is too high

If the function call returns 0 (OK), the TM5 net time at [last RTP cycle] + [i_wRTPOffset] is returned in iq_wTM5Nettime.

The iq_wTM5Nettime value can then be used to configure a pulse.

If the function call returns <0, then the value of iq_wTM5Nettime is not valid.

NOTE: If i_wRTPOffset is fewer than 4 cycles or higher than 32767 μs, the time-stamp is not valid. In this case, the function returns -4 / -5.

Configuration of a Time-Stamped Output

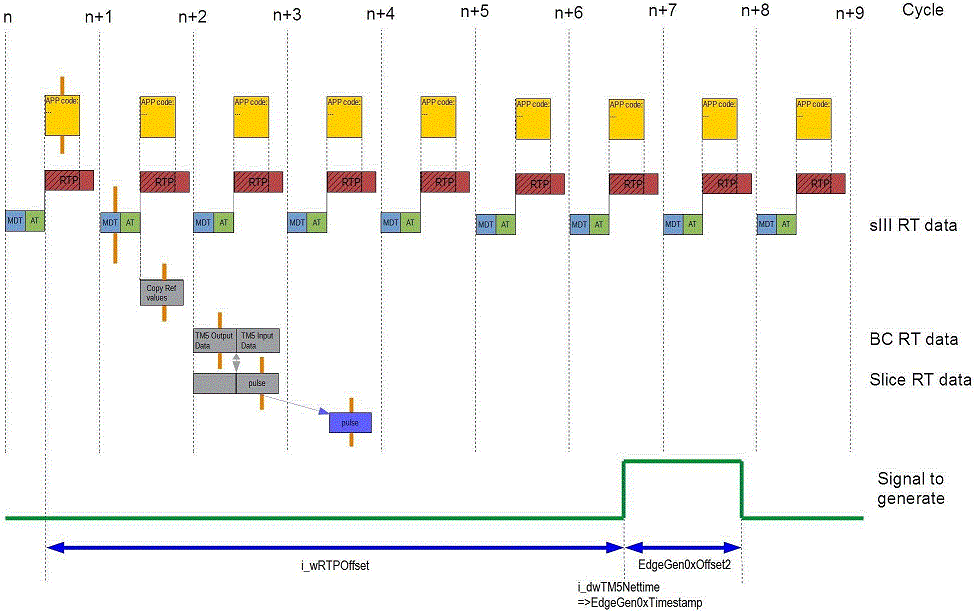

The following graphic shows an example of how to configure the generation of a signal (one pulse configuration).

	Data flow
	Task for time-stamped output handling
RTP	Real-Time Process
MDT	Master Data Telegram
AT	Acknowledged Telegram
sIII RT data	Sercos III Real-Time data
BC RT data	Bus Coupler (Sercos III bus interface, TM5NS31) Real-Time data
Slice RT data	TM5SDM8DTS Real-Time data

NOTE: If i_wRTPOffset is fewer than 4 cycles or higher than 32767 μs, the time-stamp is not valid. In this case, the function returns -4 / -5.

Example Implementation

The following example shows how to configure one pulse (one rising + one falling edge). The rising edge starts after 6221 μs and the falling edge starts 279 μs later.

PROGRAM SR_Example_TSO
VAR
  iState : INT := STATE_INIT;
  ifTM5BCIM : IF_IdentificationMandatory := 0;
  ifTM5BCDeviceIdent : IF_SercosDeviceIdentification := 0;
  ifTM5BCIO : IF_SercosIOExchange := 0;
  diResultTimestamp : DINT := 0;
  xCastOk1 : BOOL := FALSE;
  xCastOk2 : BOOL := FALSE;
END_VAR
CASE iState OF
  STATE_INIT:
     // Configure
     ifTM5BCIM := BC_TM5NS31;
     iState := STATE_INIT_INTERFACES;
  STATE_INIT_INTERFACES:
     xCastOk1 := __QUERYINTERFACE(ifTM5BCIM, ifTM5BCDeviceIdent);
     IF (FALSE=xCastOk1 OR 0=ifTM5BCDeviceIdent) THEN
        iState := STATE_ERROR_INIT;
        RETURN;
     END_IF
     xCastOk2 := __QUERYINTERFACE(ifTM5BCIM, ifTM5BCIO);
     IF (FALSE=xCastOk2 OR 0=ifTM5BCIO) THEN
        iState := STATE_ERROR_INIT;
        RETURN;
     END_IF iState := STATE_WAIT_FOR_SERCOS;
  STATE_WAIT_FOR_SERCOS:
     // Wait for phase 4
      IF (4=Sercos_Master.State AND 1=ifTM5BCDeviceIdent.WorkingState) THEN
        iState := STATE_ACTIVATE_IO;
     END_IF
  STATE_ACTIVATE_IO:
     // Set OutputsActive
     ifTM5BCIO.OutputsActiveSet := TRUE;
     IF (ifTM5BCIO.OutputsActive AND 245=TSO1_ModuleOk) THEN
        iState := STATE_ACTIVATE_TSO;
     END_IF
  STATE_ACTIVATE_TSO:
     // Enable timestamp output unit
     TSO1_EdgeGen01Enable := 1;
     IF (1=TSO1_EdgeGen01EnableReadback) THEN
        iState := STATE_CONFIGURE_PULSE;
     END_IF
STATE_CONFIGURE_PULSE:
// Configure a signal:
//
//   [n]                            [n+1]...[n+2]...[n+3]...[n+4]...[n+5]...[n+6]                        [n+7]    [Sercos cycle]
//    |                                | ...   | ...   | ...   | ...   | ...   |                           |
//    |           +----------+         | ...   | ...   | ...   | ...   | ...   |                           |
//    |           | RTP_READ |         | ...   | ...   | ...   | ...   | ...   |                           |
//    |          ++----------+----+    | ...   | ...   | ...   | ...   | ...   |                           |
//    |          |   RTP          |    | ...   | ...   | ...   | ...   | ...   |                           |      [RTP]
//    +-----+----+----------------+    | ...   | ...   | ...   | ...   | ...   |                           |
//    | MDT | AT |                     | ...   | ...   | ...   | ...   | ...   |                           |      [Sercos Data]
//    +-----+----+                     | ...   | ...   | ...   | ...   | ...   |                           |
//    |     |    |                     | ...   | ...   | ...   | ...   | ...   |                           |
//    |     |    |                     | ...   | ...   | ...   | ...   | ...   |                           |
//    |     |    |                     | ...   | ...   | ...   | ...   | ...   |   [i_wTM5Nettime]         |
//    |     |    |                     | ...   | ...   | ...   | ...   | ...   |          |                |
//               |                                                                        |[Offset2=279]
//               |                         [i_wRTPOffset = 6221]                          |<----------->|
//               |<----------------------------------------------------------------------> _____________
//    ___________|________________________________________________________________________|             |________ [Output signal]
     // Configure timestamps
     diResultTimestamp := FC_GetTM5Nettime16Bit(
        i_stLogAddrTM5:=ifTM5BCIM.stLogicalAddress,
        i_wRTPOffset:=6221,
        iq_wTM5Nettime:=TSO1_EdgeGen01Timestamp);
     TSO1_EdgeGen01Offset2 := 279;
     // Check if timesamp is valid
     IF (0 <> diResultTimestamp) THEN
        iState := STATE_ERROR_TSO;
        RETURN;
     END_IF
     // Increase sequence number
     TSO1_EdgeGen01Sequence := TSO1_EdgeGen01SequenceReadback + 1;
     iState := STATE_CHECK;
  STATE_CHECK:
      // Check if timestamp output unit accepted the timestamp configuration
     IF (TSO1_EdgeGen01SequenceReadback = TSO1_EdgeGen01Sequence) THEN
         IF (FALSE = TSO1_EdgeGen01Warning AND FALSE = TSO1_EdgeGen01Error) THEN
           iState := STATE_DONE;
        ELSE
           iState := STATE_ERROR_TSO;
        END_IF
     END_IF
  STATE_DONE:
     ;
  STATE_ERROR_INIT:
     ;
  STATE_ERROR_TSO:
     ;
END_CASE

Internal Time-Stamp Buffer

The internal time-stamp buffer can handle up to 12 (EdgeGenUnit0xTimestamp-FifoLim) pulse configurations.

Verify that the pulse configurations (each one with time-stamp and offset) are transferred in ascending order.

Time-Stamp Not Valid

If the time-stamp is not valid, that is, if the time-stamp was in the past, this is detected and can be read in the EdgeGen0xError bit of the ErrorState_2 byte.

The ErrorState_2 byte provides an EdgeGen0xError bit for each output.

If one time-stamp is not valid, the output is stopped.

You can only restart the output by the following procedure:

1.Set EdgeGen0xEnable to 0.

2.Acknowledge the detected error with QuitEdgeGen0xError (in the ErrorQuit_2 byte).

3.Set EdgeGen0xEnable to 1 again.
