The color coding of a row indicates whether a login can performed for the specific Sercos object in the PLC Configuration and, if so, whether a login is possible without errors.
The colors have the following meanings:
|
Color |
Description |
|---|---|
|
Green |
Login can be performed error-free with this object. |
|
Red |
Login cannot be performed error-free with this object. |
|
White |
No Sercos device is assigned to this object. |
|
Yellow |
Login might possibly be performed error-free with this object. The criterion set in the Identification mode is identical, but there are deviations in other values of the assigned Sercos device. The mismatched values are highlighted in bold. |
|
Pink |
Login might possibly be performed error-free with this object. However, no Sercos device was assigned after performing the Sercos scan ([Start] Sercos scan) even though the Operating mode is set to Real |
|
Gray |
Login might possibly be performed error-free with this object. But, the Identification mode set in the object's editor is not supported. |

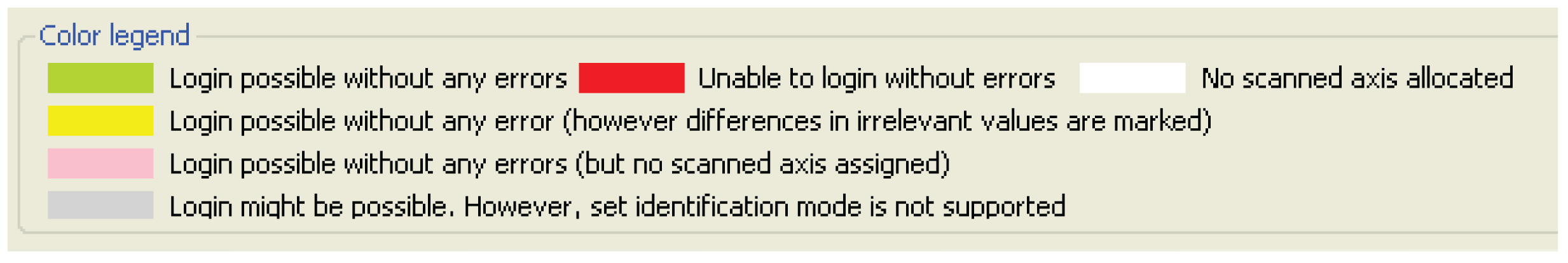

See the Color legend area at the lower left of the editor window.
