In the editor Device addressing you can add a certain number of new devices to the PLC Configuration.
oFor this purpose, enter the desired number.
oSelect the desired device from the list using the button [v].
oThen click [Add].

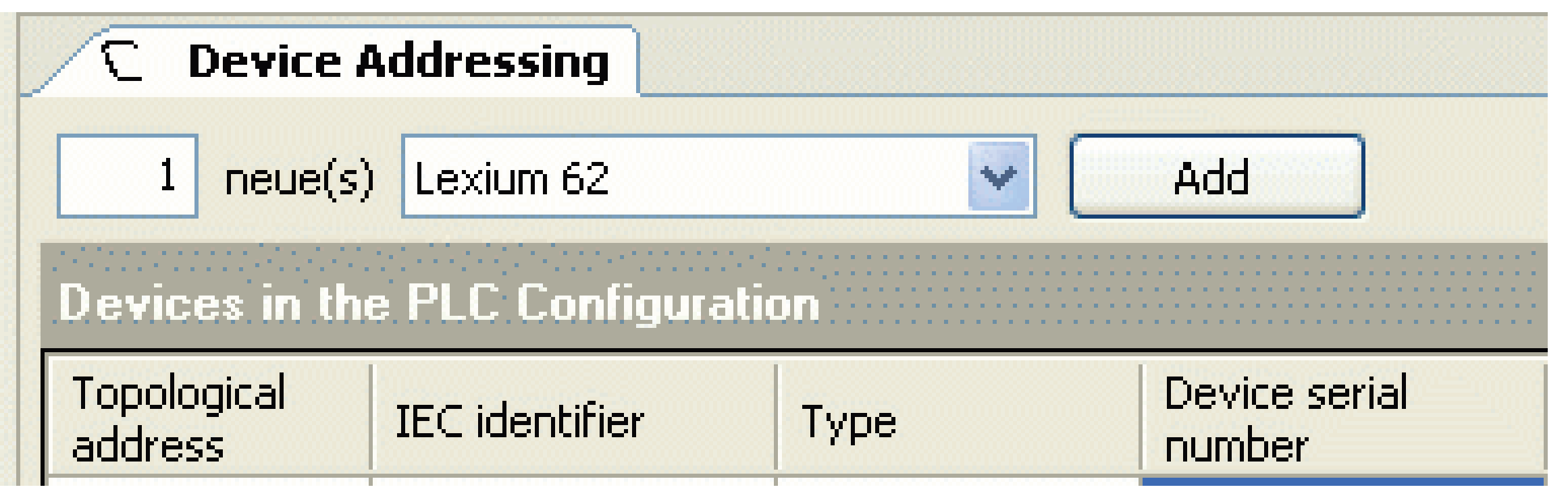

Logic Builder, Add devices
You can choose the following devices from the list:
|
Displayed name (IEC identifier) |
Description |
|---|---|
|
Lexium 62 |
Axis LXM62DxS |
|
Lexium 62 Power Supply |
Power supply LXM62PS |
|
ILM 62 |
Axis Lexium ILM62 drive module |
|
TM5NS31 |
Bus Interface TM5NS31 |
|
TM5CSLC100FS |
Safe Logic Controller TM5CSLC100FS |
|
TM5CSLC200FS |
Safe Logic Controller TM5CSLC200FS |
If an error occurs when adding a device, the devices that could not be added are listed with a respective explanation in the message window.
In addition, a dialog is displayed that indicates the error and the entry in the message window.
Also refer to Automatically add devices.
