Controller selection

Manages the connection from PC to the controller:

ohelping you find a controller in a network,

opresenting the list of available controllers, so you can connect to the selected controller and manage the application in the controller,

ohelping you physically identify the controller from the device editor,

ohelping you change the communication settings of the controller.

Online mode only

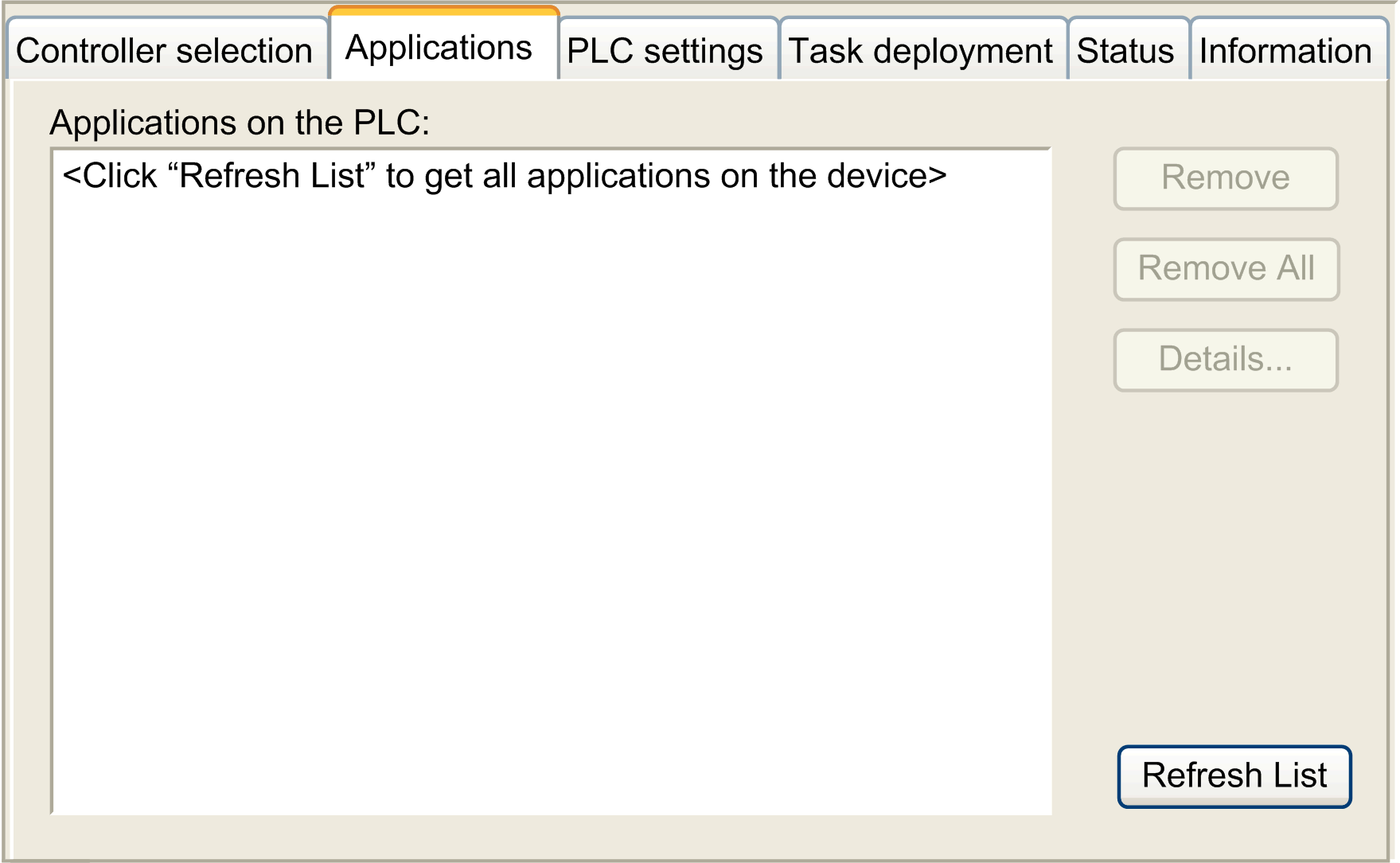

Applications

Presents the application running on the controller and allows removing the application from the controller.

Online mode only

PLC settings

Configuration of:

oapplication name

oI/O behavior in stop

obus cycle options

–

Task deployment

Displays a list of I/Os and their assignments to tasks.

After compilation only

Status

Displays device-specific status and diagnostic messages.

–

Information

Displays general information about the device (name, description, provider, version, image).

–
