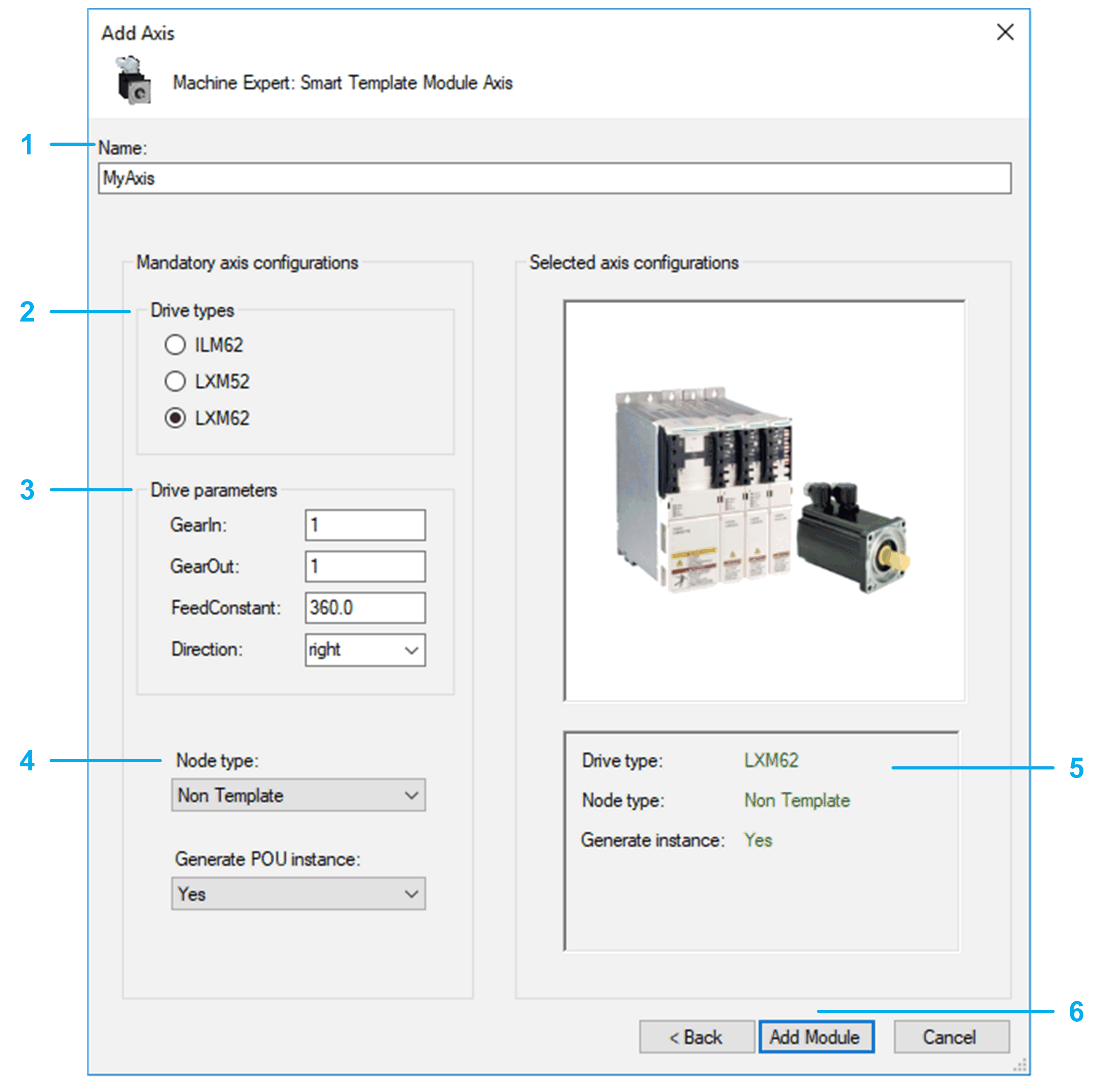

1

Select a Name for the axis. The created object and the created drive use this name.

2

Select the Drive type:

oILM62

oLXM52

oLXM62

3

Enter the Drive parameters:

oGearIn

oGearOut

oFeedConstant

oDirection

4

Select the Node type:

oPacDrive 3 Template: The generated axis is prepared to be used with the PacDrive 3 Template.

oNon Template: The generated axis can be used in other EcoStruxure Machine Expert software architectures without PacDrive 3 Template.

5

Verify the axis configuration. You cannot modify the configuration after leaving this dialog.

6

Confirm configuration. Use the Add Module button to add the configured axis to your project. The corresponding objects are displayed in the Modules view.
