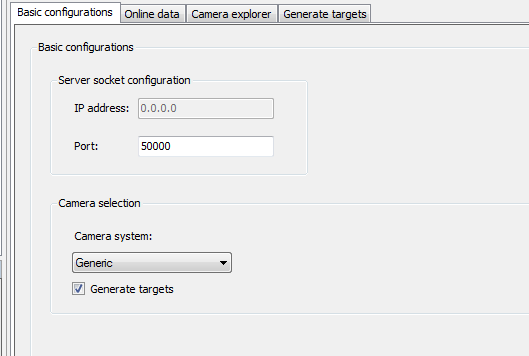

This tab provides:
oTo configure the communication parameters
oTo select a camera
oTo activate Generate targets
|
Element |
Description |
|---|---|
|
Server socket configuration |
Communication parameters oIP address: IP address of the PacDrive LMC oPort: Port the TCP server should monitor Based on the communication parameters the server opens a socket and waits for receiving data. |
|
Camera selection > Camera system |
oGeneric If you select Generic, no IP address is needed. oCOGNEX If you select COGNEX, an IP address is needed and the additional Cognex camera tab is displayed. Refer to General Information on Cognex Camera Configuration. |
|
Camera selection > Generate targets |
If you select Generate targets, the tab Generate targets is displayed. Refer to Generate targets. |
