Structure Editor - PackML State Model

Open the PackML State Model

In the Operating modes pool, click the operating mode icon; the standard PackML state model opens.

Displayed States of the PackML State Model

Every operating mode has exactly one PackML state model (UML state chart). By default, a complete PackML state model is displayed.

The individual states are highlighted in color according to the PackML standard. Newly added states are always displayed in the same color (dark green). This color cannot be configured.

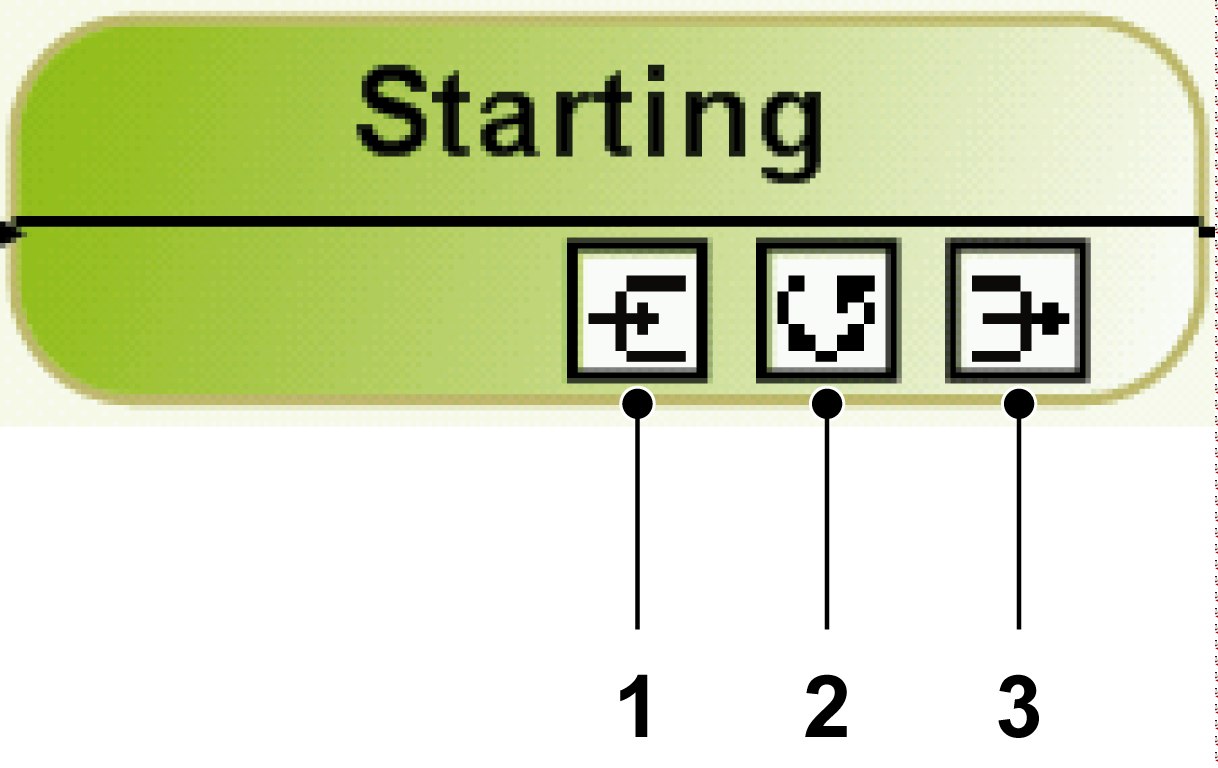

When going over a state with the mouse, symbols are displayed for the actions/methods Entry, Do, and Exit. By clicking the respective symbol, you can add an action/method to the state.

State with symbols

1 Entry

2 Do

3 Exit

Editing the PackML State Model

Editor	Description
MainMachine	Only PackML states can be used. States can be deleted, for example, disabled and added again. You cannot delete the following states: Execute, Stopped, Aborted
Module group	You can edit the state chart as desired. Except for the state Aborted, which cannot be deleted.

Editor

Description

MainMachine

Only PackML states can be used. States can be deleted, for example, disabled and added again.

You cannot delete the following states: Execute, Stopped, Aborted

Module group

You can edit the state chart as desired.

Except for the state Aborted, which cannot be deleted.

Shortcut Menu

Via the shortcut menu you can execute the following actions:

Designation	Description
Cut, Copy, Insert, Delete	Using this menu command you can cut, copy, insert and delete individual states, transitions or composites of the state chart.
Select all	Using this menu command you can select all elements (states, transitions, composites) of the current PackML state model.
Create standard status diagram	Using this menu command you can reset all changes made in the current PackML state model. It is replaced by a standard PackML state model.
Color the statuses according to their names	Only available for module groups. By default, the states of the standard PackML state model are colored according to their name; states added by the user are displayed in dark green as standard. Using this menu command you can color your added states according to their name (for example, Idle: orange).

Extras

The following tools are available to edit the PackML state model:

Designation	Description
Selection	Click this button to select an element of the PackML state model.
State	Click this button to add another state to the PackML state model.
Transition	Only available for module groups. Click this button to add another transition to the PackML state model. Every state transition consists of: oAn initial state oA final state oA guard oAn action
Completion Transition	Only available for module groups. Click this button to add another final transition to the PackML state model.
Composite	Only available for module groups. Click this button to add another nested state to the PackML state model.
Action: Existing behavior	Click this button
Action: New behavior	Click this button
Condition: Existing property	Click this button to edit an existing condition of the PackML state model.
Condition: New property	Click this button to add a condition to the PackML state model.
