If you want to protect the open EcoStruxure Machine Expert project from unauthorized access, activate the option Enable project file encryption, and select the encryption option that suits your needs.
For defining a project password, activate the Password option in order to get the following input mask:

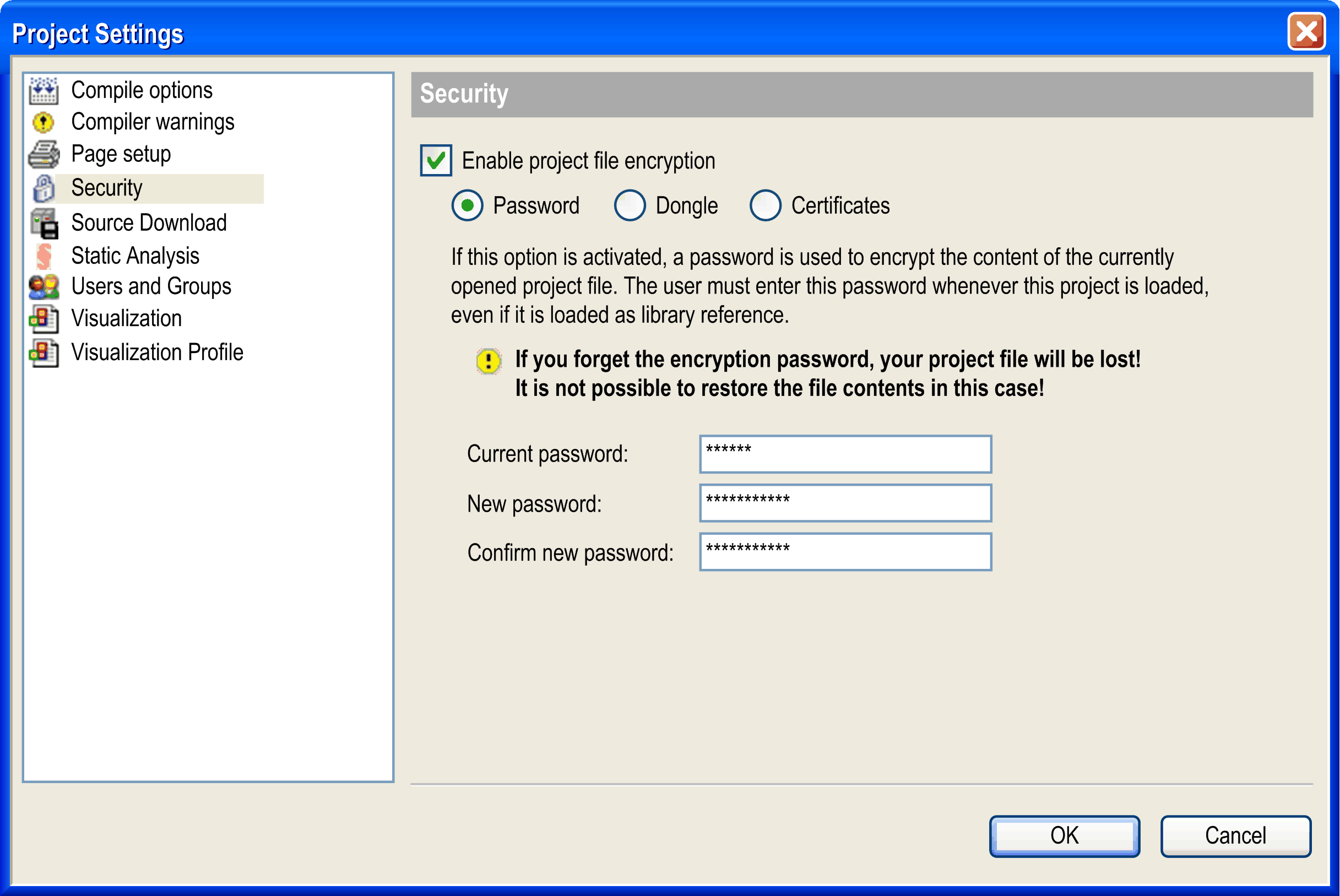

Security dialog box, option Password
Enter the password in the edit fields New Password and Confirm new password. If the project is saved with these settings, you will need to enter the password later when you are going to reload the project, even when it should get loaded as a library reference. The Encryption Password dialog box will open in this case.
If you do not remember the encryption password, the project cannot be opened any more. File contents cannot be restored in this case.
|
|
|
LOSS OF APPLICATION DATA |
|
Store the encryption password in a safe place to be able to open the protected EcoStruxure Machine Expert project. |
|
Failure to follow these instructions can result in injury or equipment damage. |
You can use the Project Settings dialog box for modifying the password. In this case, you must enter the Current password before you are allowed to enter a new one in the edit fields New Password and Confirm new password.
To protect the project by dongle, make sure that the hardware dongle is connected to your computer, activate the Dongle option, and proceed as follows:
|
Step |
Action |
|---|---|
|
1 |
Click the Add button. Result: The Add Registered Dongle dialog box opens. |
|
2 |
Select the dongle from the Dongle list. If you want to provide further information, you can enter an optional Comment. |
|
3 |
Click OK. Result: The Add Registered Dongle dialog box closes and the selected dongle is added to the list of Registered dongles in the Project Settings - Security dialog box. |
|
4 |
Click OK. Result: The dongle is assigned to the project. It must be connected to the PC in order to open the project. This applies even if the project is loaded as a library reference |
In case the dongle used for encrypting the project gets lost, the project cannot be opened any more. File contents cannot be restored in this case.
|
|
|
LOSS OF APPLICATION DATA |
|
Store the dongle in a safe place to be able to open the protected EcoStruxure Machine Expert project. |
|
Failure to follow these instructions can result in injury or equipment damage. |
To protect the project by certificates, activate the Certificates option, and proceed as described in the How To Protect Your Source Code User Guide.
NOTE: You need a private key to open the project after it has been encrypted with a public key.
NOTE: In case your private key certificate gets lost or the certificate becomes outdated, the project cannot be opened any more. File contents cannot be restored in this case.
|
|
|
LOSS OF APPLICATION DATA |
|
Store the private key certificate in a safe place and manage the certificates carefully to be able to open the protected EcoStruxure Machine Expert project. |
|
Failure to follow these instructions can result in injury or equipment damage. |
