The SFC Editor > Insert Step-Transition command is used in the SFC editor to insert a step and a transition before the currently selected position.
The positioning (sequence) of the new step and transition depends on whether a step or transition has been selected when executing the command. Automatically, the sequence step-transition-step-transition-... will be kept. See the following images for examples:

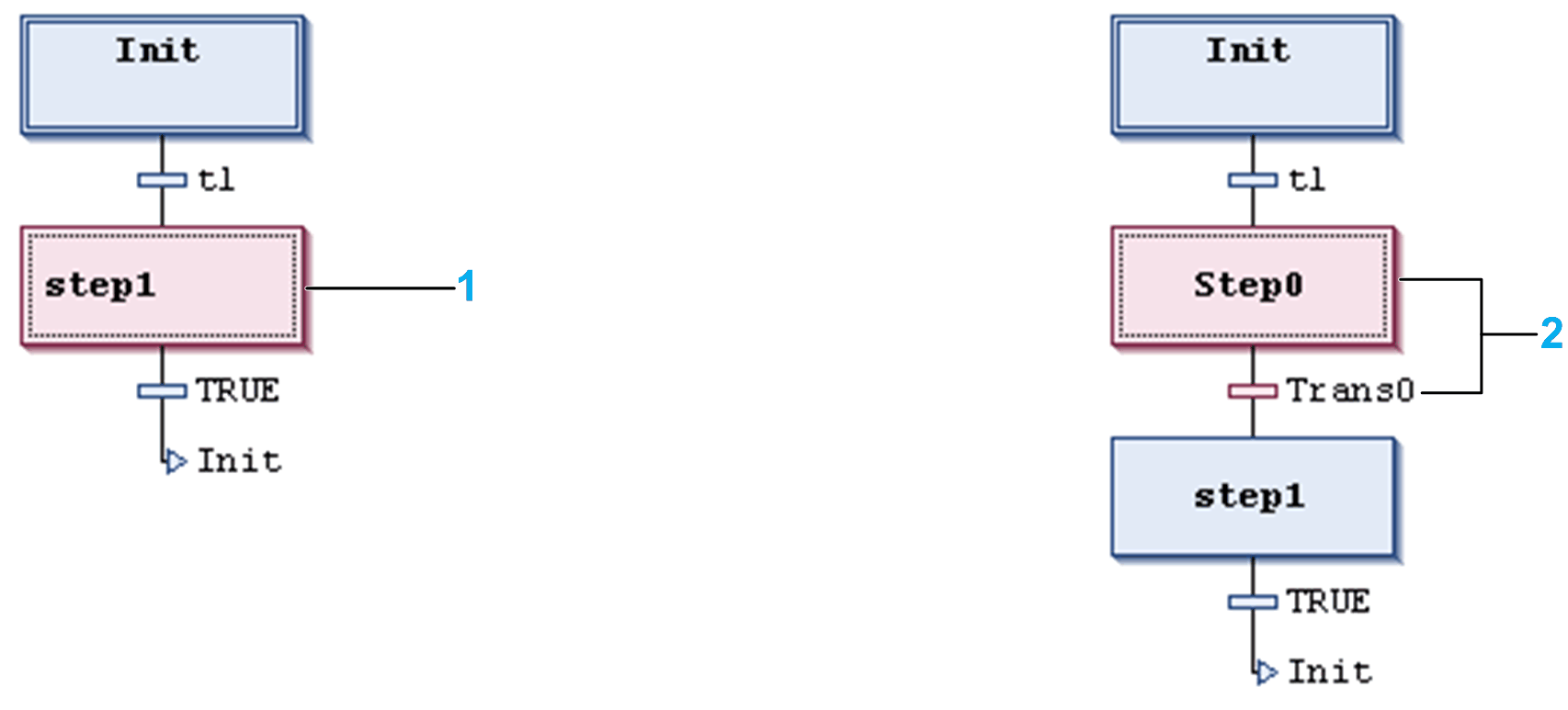

Step and transition inserted before step:
1 Step 1 selected --> Insert Step-Transition
2 New step + transition

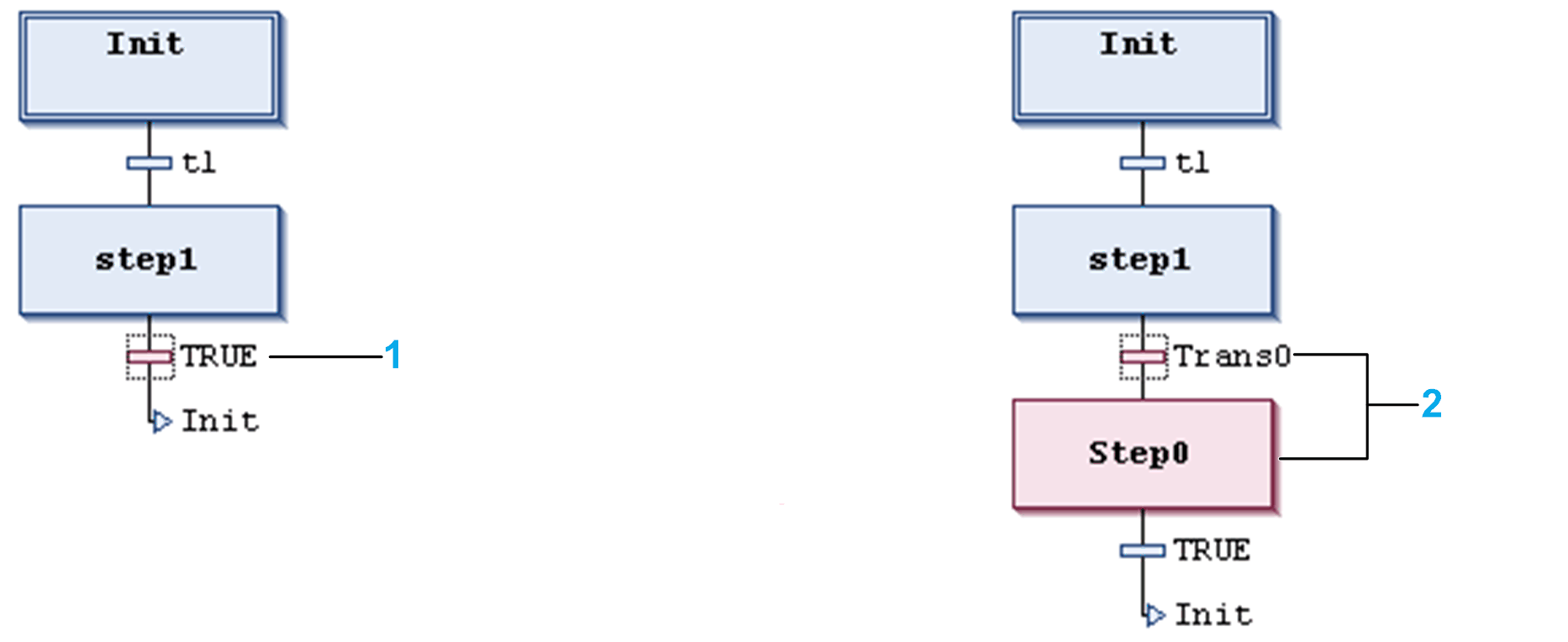

Step and transition inserted after transition:
1 Transition TRUE selected --> Insert Step-Transition
2 New step + transition
By default, the new step is named Step<n>. n is a running number starting with 0 for the first step which is inserted in addition to the initial step.
The new transition correspondingly by default is named Trans <n>.
To modify the default names, click the name string to make it editable.
