SFC Editor

Overview

The Tools > Options > SFC Editor dialog box provides settings concerning the editing in an SFC editor (Sequential Function Chart).

Layout Tab

The settings are to be made in grid units. One grid unit = font size currently set in the Text editor options (Text area > Font).

Step height	step element height in grid units possible values: 1...100
Step width	step element width in pixels in grid units possible values: 2...100
Action width	action element display width in grid units possible values: 2...100
Qualifier width	qualifier display width in grid units possible values: 2...100.
Property width	property display width in grid units possible values: 2...100.

These settings will affect all open SFC editors immediately.

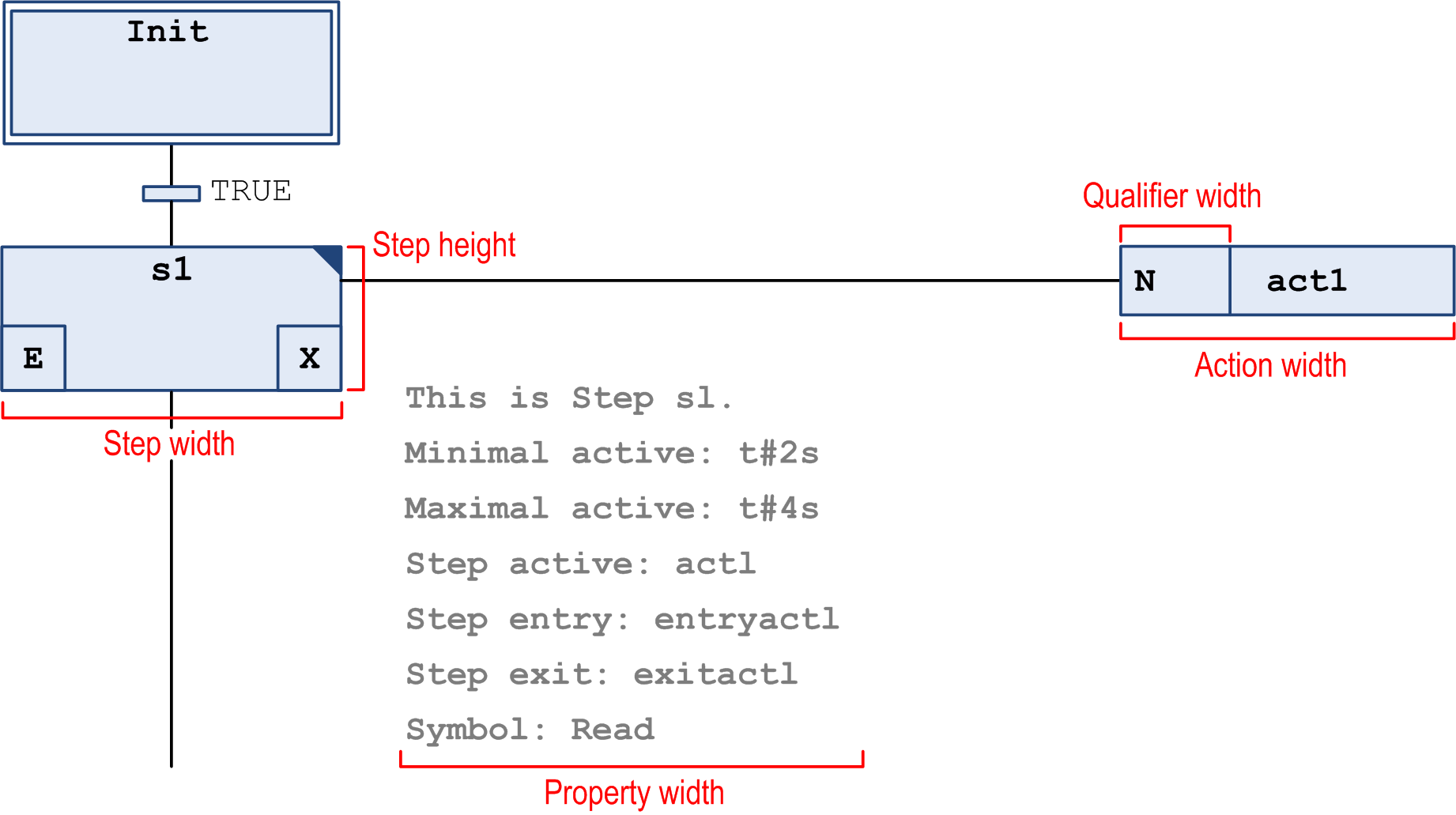

Layout options in SFC

Options of the Default insertion method for step actions:

Default insertion method option	Description
Copy reference	When you copy the step, the reference to the action objects that are called by the step are also copied. The source step and new step call the same action.
Duplicate implementation	The reference to the action objects that are called by the step are linked to this step. When you copy the step element, new action objects are created for the new step. The implementation is duplicated.
Always ask	When you insert a step action, you are prompted whether the actions of a step element should be duplicated when it is copied, or whether the reference to the existing action should be used. NOTE: If a step already contains an embedded action, new inserted actions of this step are also embedded. Likewise, new inserted actions are not embedded when the step already contains a non-embedded action. In these cases, you are not prompted to select the duplication mode.

Default insertion method option

Description

Copy reference

When you copy the step, the reference to the action objects that are called by the step are also copied. The source step and new step call the same action.

Duplicate implementation

The reference to the action objects that are called by the step are linked to this step. When you copy the step element, new action objects are created for the new step. The implementation is duplicated.

Always ask

When you insert a step action, you are prompted whether the actions of a step element should be duplicated when it is copied, or whether the reference to the existing action should be used.

NOTE: If a step already contains an embedded action, new inserted actions of this step are also embedded. Likewise, new inserted actions are not embedded when the step already contains a non-embedded action. In these cases, you are not prompted to select the duplication mode.

Option for Embedded objects

Option	Description
Show action and transition objects in the navigator	If the option is selected, action and transition objects that are embedded in the SFC block by a step are displayed as a node in the Applications tree.

View Tab

Property visibility

Here you can define which of the Element Properties (step attributes) should be displayed next to an element in the SFC editor view: The Common and the Specific properties for each element type are shown in the table. You can activate the checkbox in the Value field in order to display the property value right to the element in each SFC object. If you additionally activate the checkbox in the With name field, the value will be preceded by the name of the property.

Online

If the option Show step time is activated, in online mode, the current step time will be displayed to the right of each step element for which time properties are set.

Example

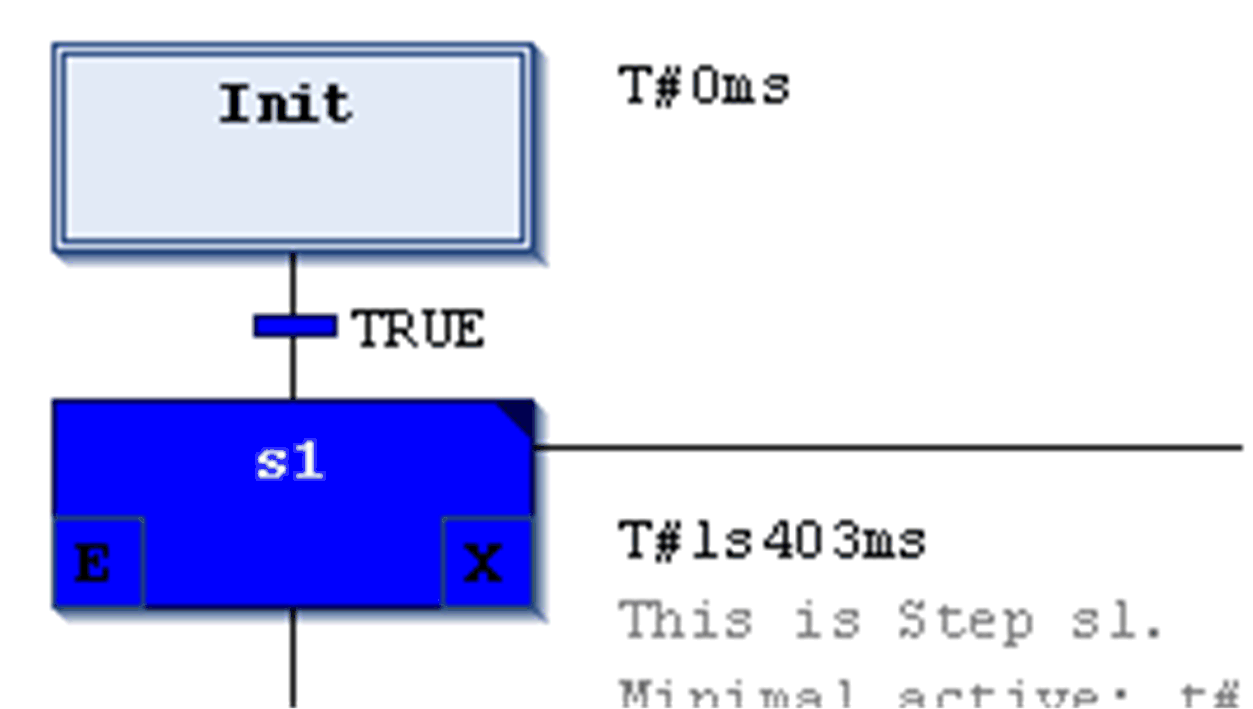

Step time displayed in online mode

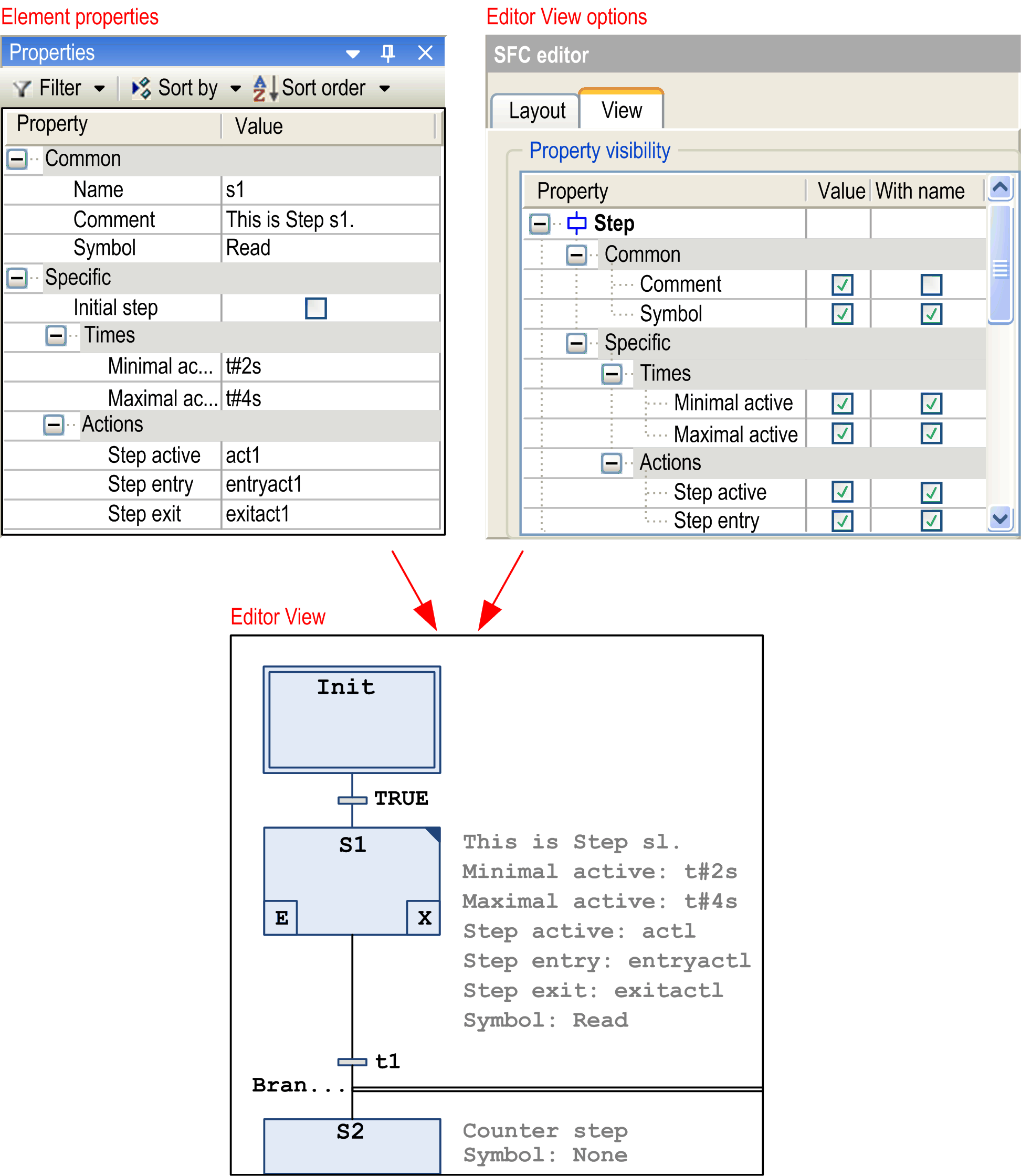

Example for step attributes
