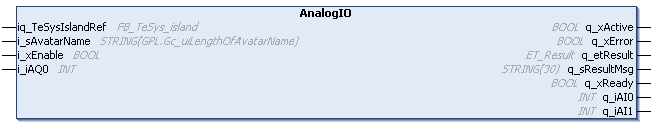

Type:

Function block

Available as of:

V2.0.3.0

iq_TeSysIslandRef

FB_TeSys_island

Reference to the TeSys island device.

i_sAvatarName

STRING(GPL.Gc_uiLengthOfAvatarName)

Reference to the avatar defined in the TeSys island configuration.

i_xEnable

BOOL

A rising edge at the input i_xEnable starts the cyclic data exchange between the function block and the selected avatar. As long as i_xEnable is TRUE the cyclic data is exchanged every controller cycle. A falling edge at the input i_xEnable stops the data exchange. Refer to Behavior of the Function Blocks with the Input i_xEnable.

i_iAQ0

INT

Value to be written to analog output 0.

Unit and scaling depends on the analog output type configured.

oType 0 (Unit: mV)

oType 1 (Unit: mV)

oType 2 (Unit: μA)

oType 3 (Unit: μA)

q_xActive

BOOL

If the function block is active, this output is set to TRUE.

q_xError

BOOL

If this output is set to TRUE, an error has been detected. For details, refer to q_etResult and q_etResultMsg.

q_etResult

ET_Result

Provides diagnostic and status information as a numeric value.

q_sResultMsg

STRING[30]

Provides additional diagnostic and status information as a text message.

q_xReady

BOOL

Indicates TRUE if the function block is ready to receive an execute command.

q_iAI0

INT

Indicates the value read from the analog input 0.

Unit and scaling depends on the analog input type configured.

oType 0 to 12 (Unit: 0.1 deg C)

oType 13 (Unit: mV)

oType 14 (Unit: mV)

oType 15 (Unit: μA)

oType 16 (Unit: μA)

q_iAI1

INT

Indicates the value read from the analog input 1.

Unit and scaling depends on the analog output type configured.

oType 0 to 12 (Unit: 0.1 deg C)

oType 13 (Unit: mV)

oType 14 (Unit: mV)

oType 15 (Unit: μA)

oType 16 (Unit: μA)
