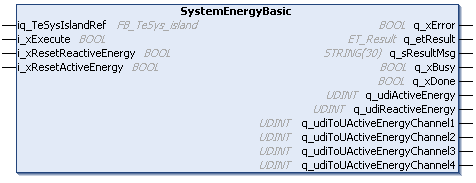

Type:

Function block

Available as of:

V2.0.3.0

iq_TeSysIslandRef

FB_TeSys_island

Reference to the TeSys island device.

i_xExecute

BOOL

Upon a rising edge of this input, the function block starts the execution. The outputs q_xDone, q_xError, q_etResult, and q_etResultMsg are reset with the falling edge of i_xExecute. Refer to Behavior of Function Blocks with the Input i_xExecute.

i_xResetReactiveEnergy

BOOL

If this input is set to TRUE, the value of the parameter q_udiReactiveEnergy is reset.

i_xResetActiveEnergy

BOOL

If this input is set to TRUE, the value of the parameter q_udiActiveEnergy is reset.

q_xError

BOOL

If this output is set to TRUE, an error has been detected. For details, refer to q_etResult and q_etResultMsg.

q_etResult

ET_Result

Provides diagnostic and status information as a numeric value.

q_sResultMsg

STRING[30]

Provides additional diagnostic and status information as a text message.

q_xBusy

BOOL

If this output is set to TRUE, the function block execution is in progress.

q_xDone

BOOL

If this output is set to TRUE, the execution has been completed successfully.

q_udiActiveEnergy

UDINT

Total active energy value for all avatars in the system with Energy Monitoring Enabled.

(Unit: Wh)

q_udiReactiveEnergy

UDINT

Total reactive energy value for all avatars in the system with Energy Monitoring Enabled.

(Unit: Wh)

q_udiToUActiveEnergyChannel1

UDINT

Channel 1:

Returns the ToU (Time of Use) total active energy value that has been accumulated while the channel is enabled/active.

...

...

...

q_udiToUActiveEnergyChannel4

UDINT

Channel 4:

Returns the ToU (Time of Use) total active energy value that has been accumulated while the channel is enabled/active.
