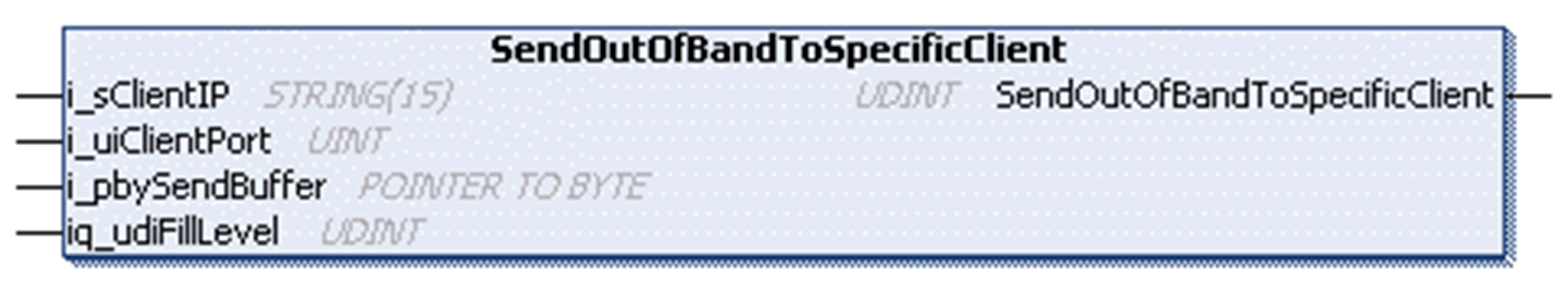

SendOutOfBandToSpecificClient Method
Send OutOfBand data only to a specific client, identified by its IP and port.
Sends OutOfBand data only to a specific client, identified by its IP and port. Returns the number of bytes sent to the remote site as UDINT.
For additional information about the send methods, refer to section Send Method.
|
Input |
Data type |
Valid range |
Description |
|---|---|---|---|
|
i_sClientIP |
STRING(15) |
- |
IP address of the connected client the data is to be sent to. |
|
i_uiClientPort |
UINT |
1 ... 65535 |
Source port of the connected client the data is to be sent to. |
|
i_pbySendBuffer |
POINTER TO BYTE |
- |
Start address of the buffer that holds the data to be sent. |
|
In_Out |
Data type |
Valid range |
Description |
|---|---|---|---|
|
iq_udiFillLevel |
UDINT |
1 |
Fill level of the application-supplied buffer before the operation. Set this to 1. It will be still 1 after the operation if not all data could be sent. |
oFB_TCPServer
