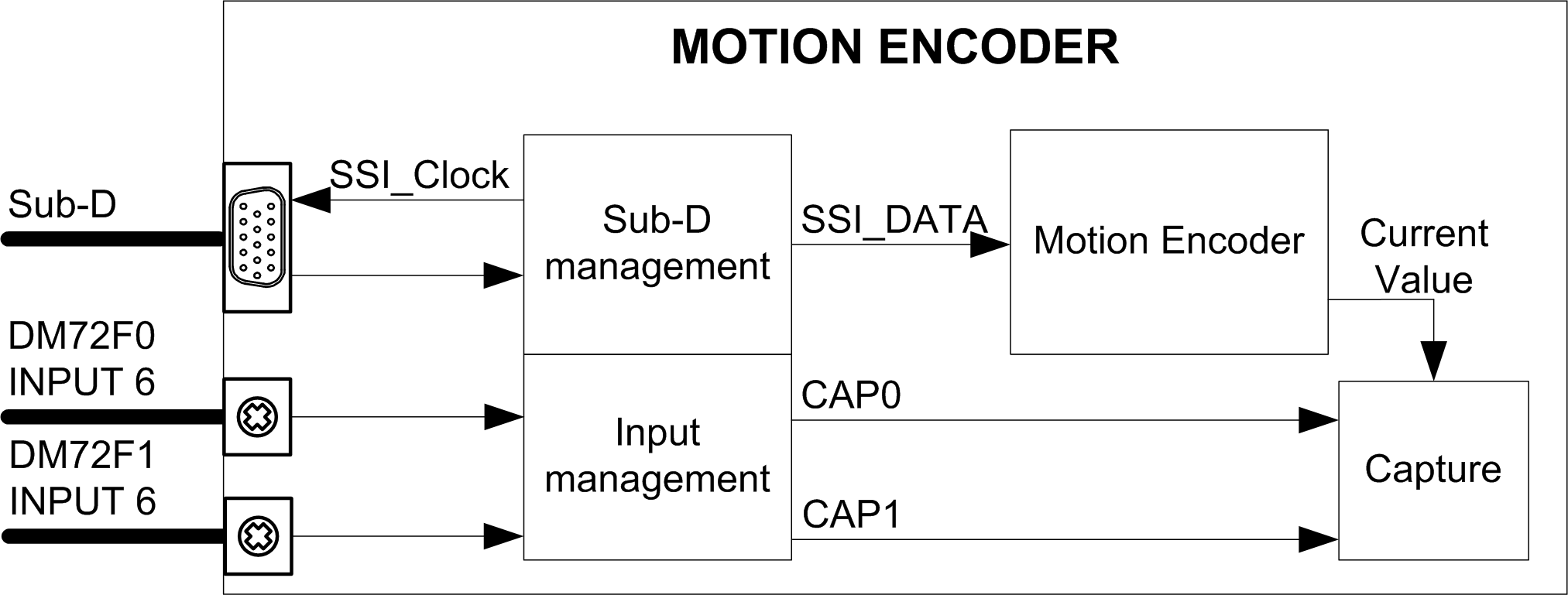

The following diagram provides an overview of the Motion Encoder in SSI mode on the Encoder interface:
In addition to the SSI mode, the Motion Encoder can provide the following function:
A Motion Encoder supports all SM3_Basic library SoftMotion functions (preset, touch prob, etc...).
In addition, a MC_GetImmediateValue_LMC058 and a MC_Reset_LMC058 functions are available in the LMC058 Motion library.
