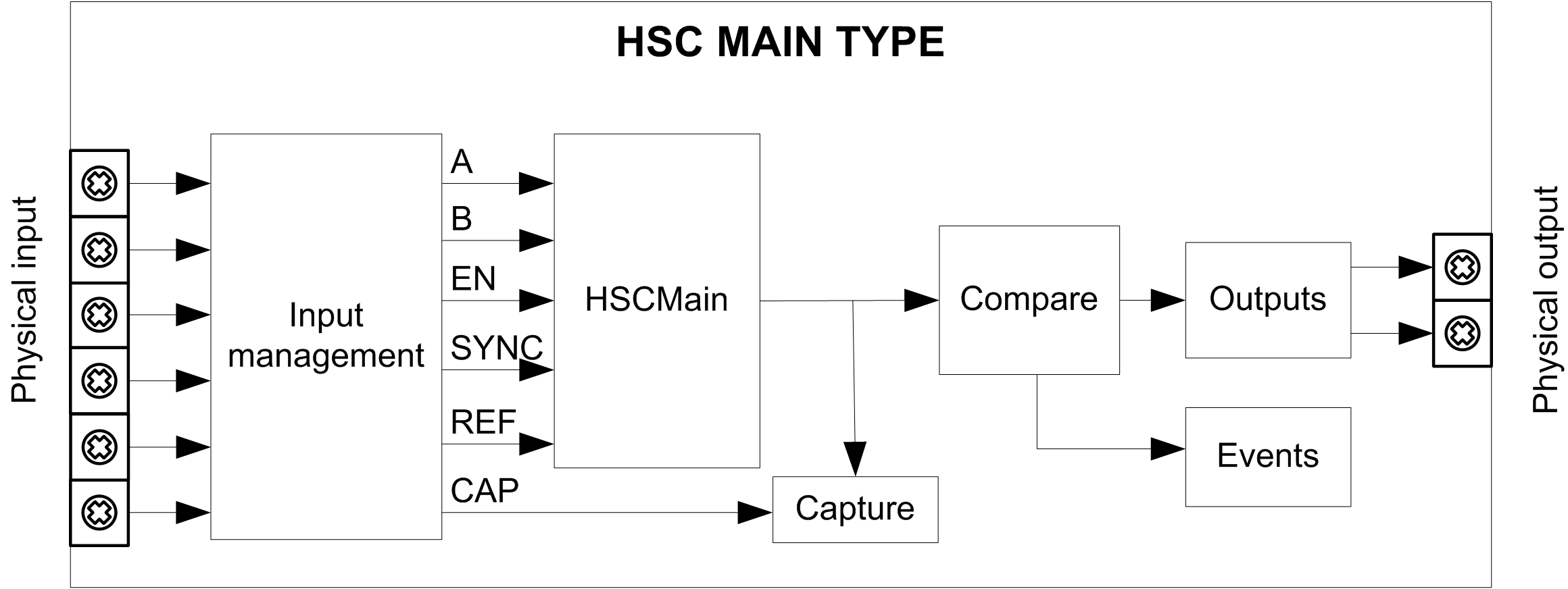

This diagram provides an overview of the Main type in Free-large mode:
A and B are the counting inputs of the counter.
EN is the enable input of the counter.
REF is the reference input of the counter.
SYNC is the synchronization input of the counter.
CAP is the capture input of the counter.
In addition to the Free-large mode, the Main type can provide the following functions:
