Encoder_LMC058: Encoder Function Block

Function Description

This function block controls a Encoder type counter.

The function block instance name must match the name defined by the configuration.

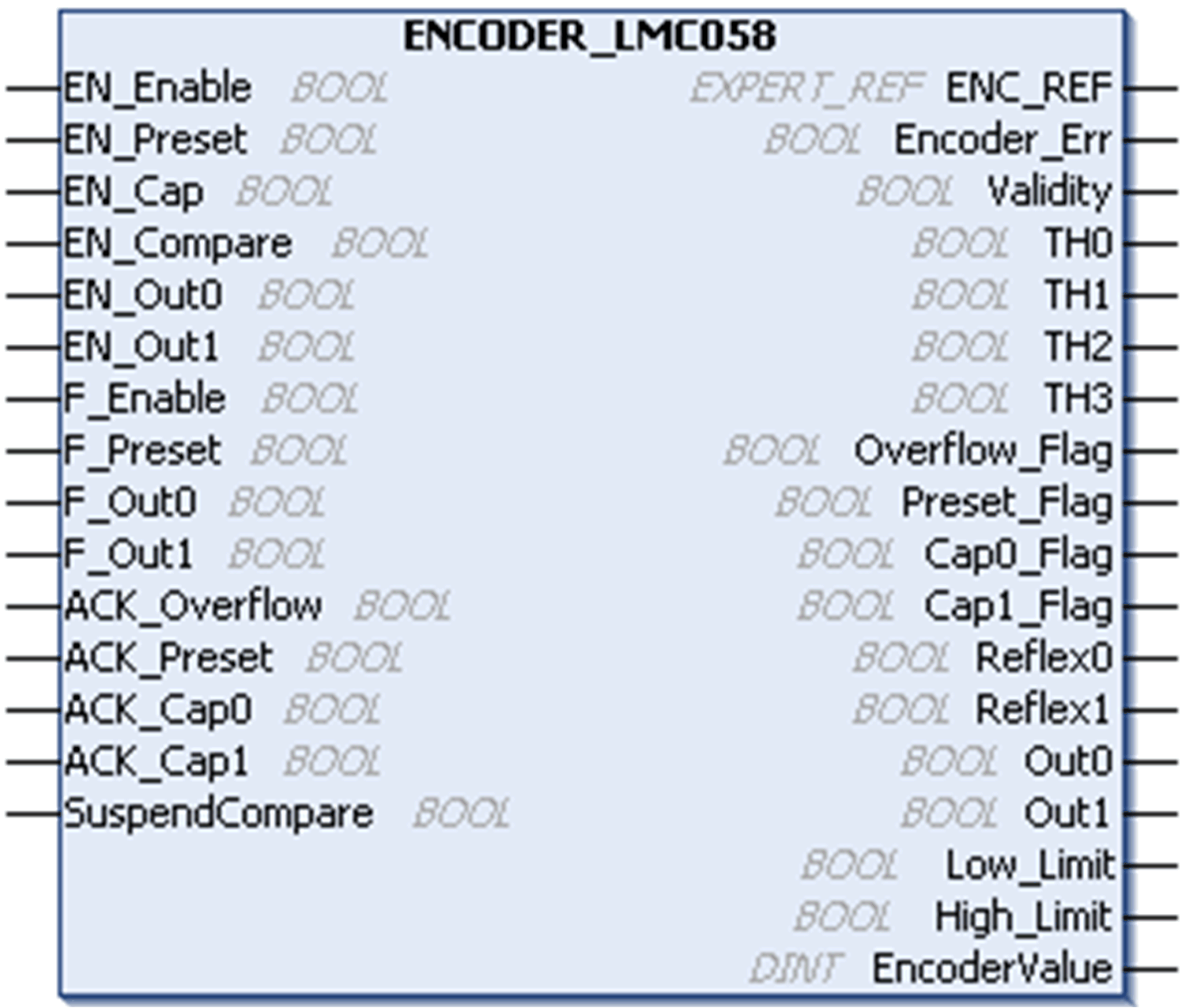

Graphical Representation

IL and ST Representation

To see the general representation in IL or ST language, refer to Function and Function Block Representation.

I/O Variables Description

This table describes the input variables:

Inputs	Type	Comment
EN_Enable	BOOL	TRUE = authorizes the encoder enable via the Enable input (if configured).
EN_Preset	BOOL	TRUE = authorizes the encoder synchronization and starts via the Sync input (if configured).
EN_Cap	BOOL	TRUE = enables the Capture input (if configured).
EN_Compare	BOOL	TRUE = enables the comparator operation (using Thresholds 0, 1, 2, 3): obasic comparison (TH0, TH1, TH2, TH3 output bits) oreflex (Reflex0, Reflex1 output bits) oevents (to trigger external tasks on threshold crossing)
EN_Out0	BOOL	TRUE = enables Output0 to echo the Reflex0 value (if configured, on DM72F modules).
EN_Out1	BOOL	TRUE = enables Output1 to echo the Reflex1 value (if configured, on DM72F modules).
F_Enable	BOOL	Forces the Enable condition. In case of a detected SSI error setting the F_Enable input to 0 acknowledges the error.
F_Preset	BOOL	Forces the Preset condition.
F_Out0	BOOL	TRUE = forces Output0 to 1 (if Reflex0 is configured).
F_Out1	BOOL	TRUE = forces Output1 to 1 (if Reflex1 is configured).
ACK_Overflow	BOOL	On rising edge, resets the Overflow_Flag.
ACK_Preset	BOOL	On rising edge, resets Preset_Flag.
ACK_Cap0	BOOL	On rising edge, resets Cap0_Flag.
ACK_Cap1	BOOL	On rising edge, resets Cap1_Flag.
SuspendCompare	BOOL	TRUE = the comparator operation results are frozen: oTH0, TH1, TH2, TH3, Reflex0, Reflex1 output bits maintain their last value. oHardware Outputs 0, 1 maintain their last value. oEvents are masked. EN_Compare, EN_Reflex0, EN_Reflex1, F_Out0, F_Out1 remain operational while SupendCompare is set.

This table describes the output variables:

Outputs	Type	Comment
ENC_REF	EXPERT_REF	Reference to the Encoder.
Encoder_Err	BOOL	TRUE = indicates that an error was detected. Use the EXPERTGetDiag function block to get more information about this detected error.
Validity	BOOL	TRUE = indicates that the output values on the function block are valid.
TH0	BOOL	Set to 1 when CurrentValue > Threshold 0 (if configured). Only active when EN_Compare is set.
TH1	BOOL	Set to 1 when CurrentValue > Threshold 1 (if configured). Only active when EN_Compare is set.
TH2	BOOL	Set to 1 when CurrentValue > Threshold 2 (if configured). Only active when EN_Compare is set.
TH3	BOOL	Set to 1 when CurrentValue > Threshold 3 (if configured). Only active when EN_Compare is set.
Overflow_Flag	BOOL	Set to 1 when the encoder rolls over its limits.
Preset_Flag	BOOL	Set to 1 after the encoder presets.
Cap0_Flag	BOOL	Set to 1 when a new capture value is stored in the Capture register. This flag must be reset before a new capture is allowed.
Cap1_Flag	BOOL	Set to 1 when a new capture value is stored in the Capture register. This flag must be reset before a new capture is allowed.
Reflex0	BOOL	State of Reflex0 (if configured). Only active when EN_Compare is set.
Reflex1	BOOL	State of Reflex1 (if configured). Only active when EN_Compare is set.
Out0	BOOL	Indicates the state of Output0.
Out1	BOOL	Indicates the state of Output1.
Low_Limit	BOOL	Only managed for incremental linear in Lock on limit. Set to 1 when the encoder exceeds - 2.147.483.648. Resets to 0 when encoder presets or resets.
High_Limit	BOOL	Only managed for incremental linear in Lock on limit. Set to 1 when the encoder exceeds + 2.147.483.648. Resets to 0 when encoder presets or resets.
EncoderValue	DINT	Current value of the Encoder.
