getTM5Delay: Number of TM5 Bus Cycles Without Valid Exchange

Function Description

This function will return the number of TM5 bus cycles without valid exchange with a targeted TM5 module.

NOTE: For TM5 module diagnostic, see System Variable TM5_MODULE_R.

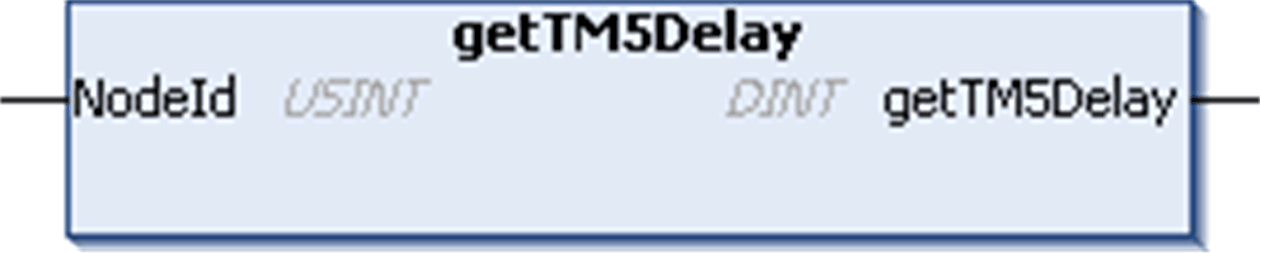

Graphical Representation

IL and ST Representation

To see the general representation in IL or ST language, refer to the chapter Function and Function Block Representation.

I/O Variable Description

The following table describes the input variable:

Input	Type	Comment

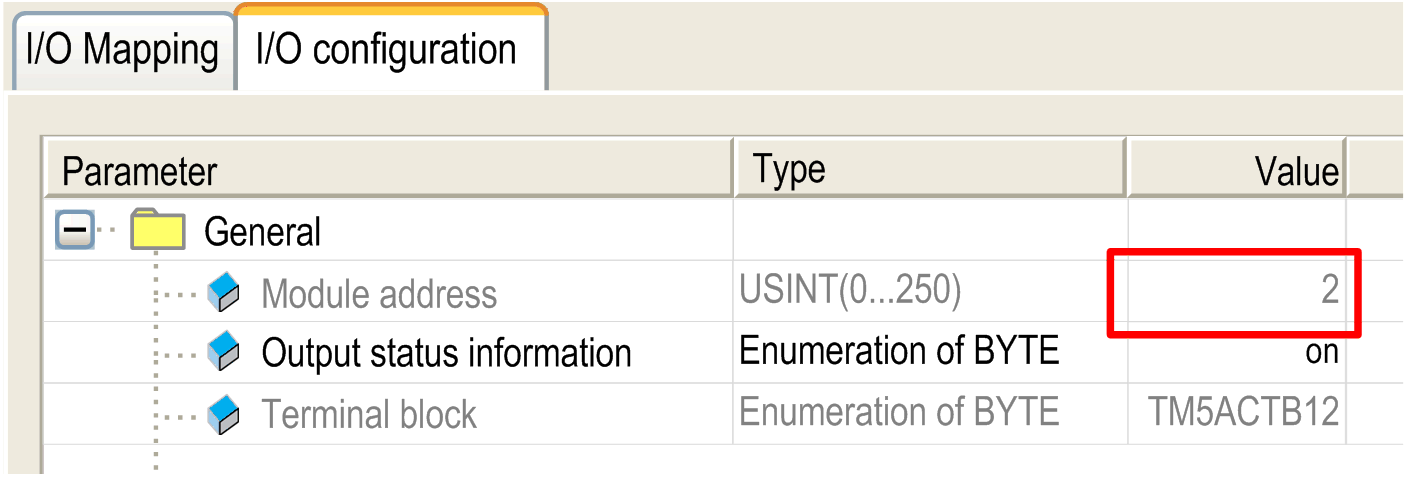

NodeId	DINT	Targeted TM5 Module Module address (to get the Module address, verify the value in the I/O Configuration tab).

Input

Type

Comment

NodeId

DINT

Targeted TM5 Module Module address (to get the Module address, verify the value in the I/O Configuration tab).

The following table describes the output variable:

Output	Type	Comment
getTM5Delay	USINT	The variable can take the following values: o0= OK o[1..3]= 1 to 3 cycles without valid exchange o-1= more than 3 cycles without valid exchange or invalid parameter

Output

Type

Comment

getTM5Delay

USINT

The variable can take the following values:

o0= OK

o[1..3]= 1 to 3 cycles without valid exchange

o-1= more than 3 cycles without valid exchange or invalid parameter

Example

The following example describes how to get the delay of the first TM5 Module:

VAR
   delay : DINT;
   //Slot ID is 1 for the first TM5 module
           slot_ID : USINT := 1;
END_VAR

delay = getTM5Delay(slot_ID);
