DANGER

FIRE HAZARD

oUse only the correct wire sizes for the current capacity of the I/O channels and power supplies.

oFor relay output (2 A) wiring, use conductors of at least 0.5 mm² (AWG 20) with a temperature rating of at least 80 °C (176 °F).

oFor common conductors of relay output wiring (4 A), or relay output wiring greater than 2 A, use conductors of at least 1.0 mm² (AWG 16) with a temperature rating of at least 80 °C (176 °F).

Failure to follow these instructions will result in death or serious injury.

WARNING

UNINTENDED EQUIPMENT OPERATION

Do not exceed any of the rated values specified in the environmental and electrical characteristics tables.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

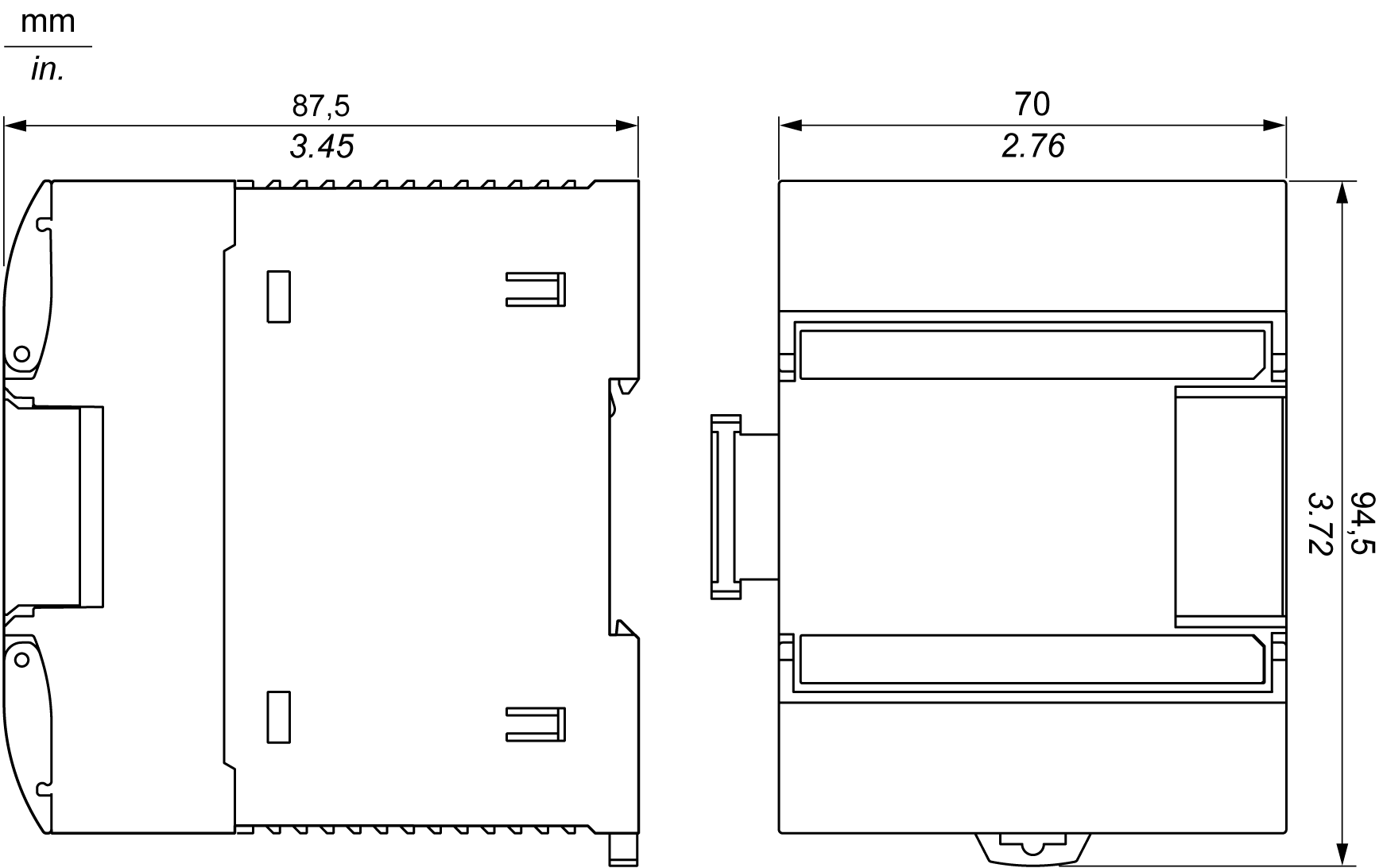

Maximum number of outputs

2

Common lines

1

Output range

-10... +10 Vdc/0...10 Vdc

0...20 mA/4...20 mA

Connectable I/O terminals

Removable terminals

Load impedance

> 2 kΩ

< 300 Ω

Application load type

Resistive load

Settling time

10 ms

Total output system transfer time

10 ms + 1 scan time

Output tolerance

Maximum deviation at 25 °C (77 °F) without electromagnetic disturbance

± 1% of the full scale

Maximum deviation

± 2.5% of the full scale

Digital resolution

12 bits, including sign

Temperature drift

± 0.06% of the full scale/°C

Output ripple

±50 mV

Cross talk

60 dB

Non-linearity

± 0.5% of the full scale

Output value of LSB

6 mV

10 μΑ

Protection type

Photo coupler between output and internal circuit

Output protection

Short circuit protection

Open circuit detection

Output behavior if input power supply is less than the power failed threshold

Turn off

Cable

Type

Shielded

Length

3 m (9.84 ft) is the maximum cable length with respect to electromagnetic immunity standards.

NOTE: If electromagnetic immunity is not a consideration, the maximum cable length is 30 m.
