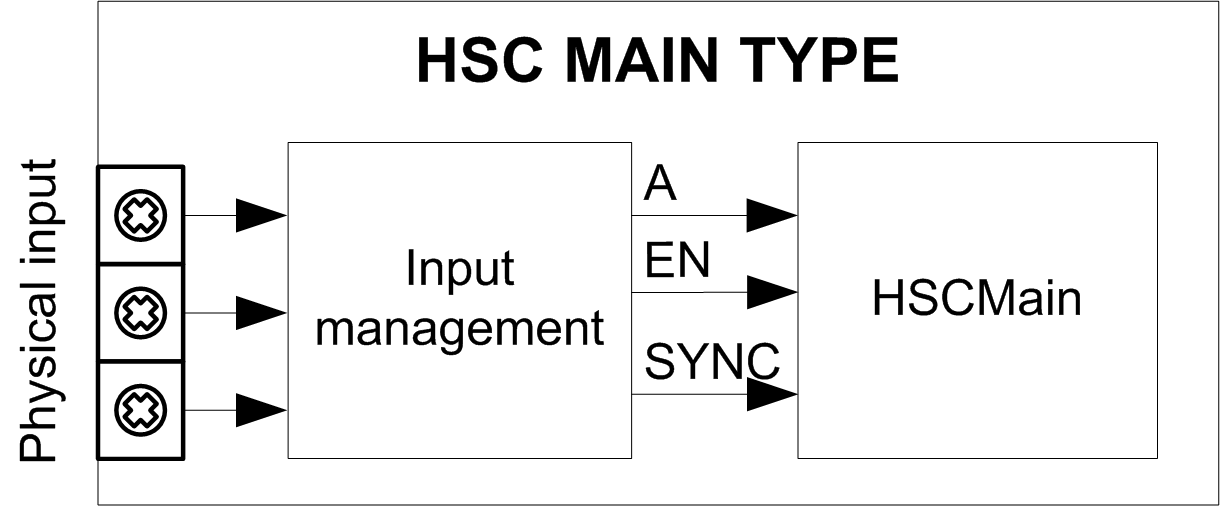

This diagram provides an overview of the Main type in Event Counting mode.
A is the counting input of the counter.
EN is the enable input of the counter.
SYNC is the synchronization input of the counter.
In addition to the Event Counting mode, the Main type provides the following functions:
