TM5SD000 dummy module is a non-functional module. This module is used as a place holder for later system expansion according to the TM5 association table.

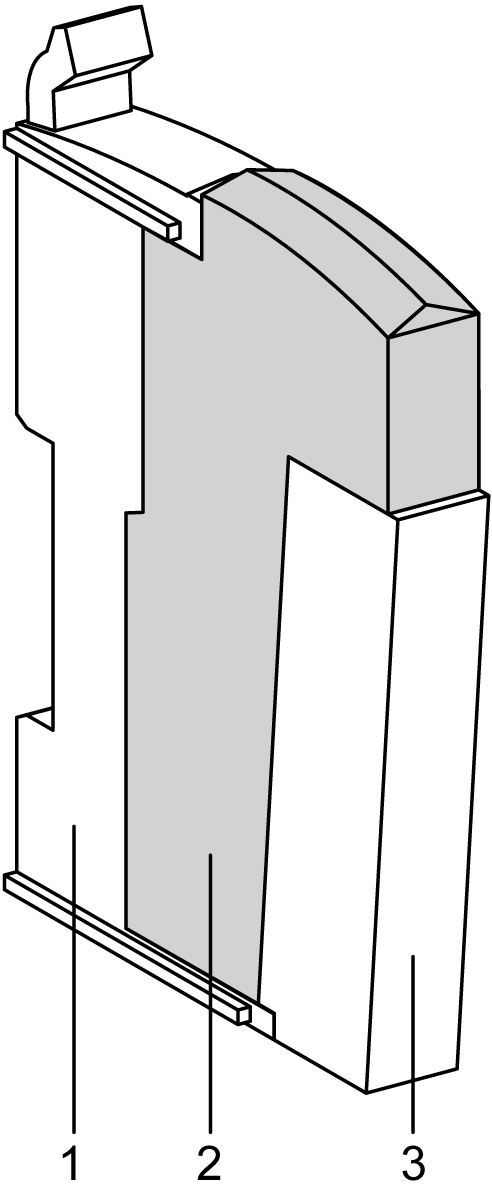

The following figure shows a slice with the TM5SD000 dummy module:
|
Number |
Reference |
Description |
Color |
|---|---|---|---|
|
1 |
TM5ACBM11 or TM5ACBM15 |
Bus base
Bus base with address setting |
White
White |
|
2 |
TM5DSD000 |
Dummy module |
White |
|
3 |
TM5ACTB06 or TM5ACTB12 |
Terminal block, 6-pin
Terminal block, 12-pin |
White
White |
The characteristics of the TM5SD000 dummy module are described in environmental characteristics.

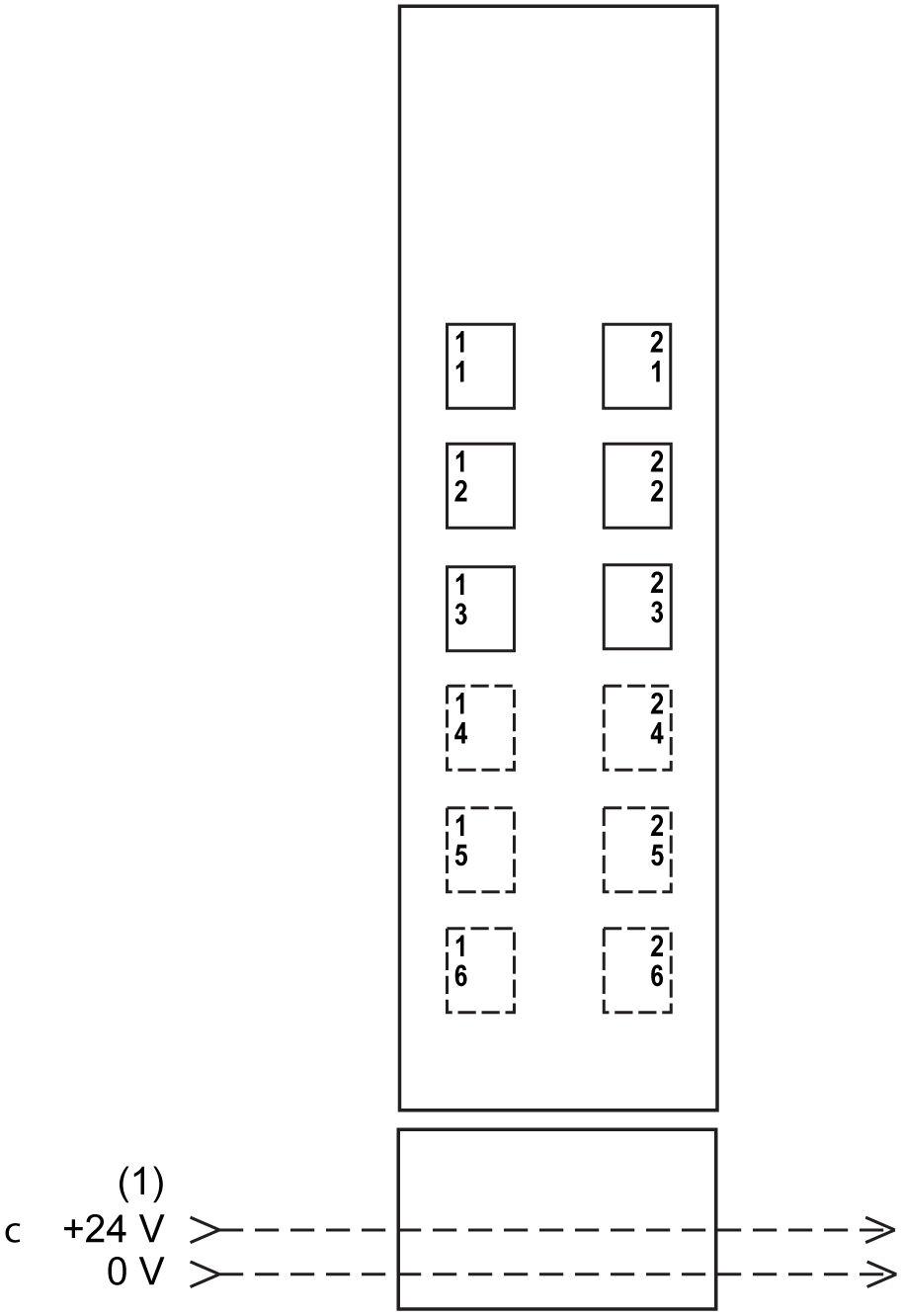

1 24 Vdc I/O power segment integrated into the bus bases
