Embedded Regular I/O Configuration
This table shows the embedded regular I/O modules and their associated controller reference:
|
Controller |
Embedded Regular I/O |
Description |
|---|---|---|
|
TM258LD42DT TM258LF42DT |
DI12DE |
12 Digital Inputs 24 VDC, Sink, IEC 61131-2, Type 1 |
|
DO12TE |
12 Outputs 24 VDC / 0.5 A |
|
|
TM258LD42DT4L TM258LF42DT4L |
DI12DE |
12 Digital Inputs 24 VDC, Sink, IEC 61131-2, Type 1 |
|
DO12TE |
12 Outputs 24 VDC / 0.5 A |
|
|
AI4LE |
4 Inputs ±10 V / 0... 20 mA |
|
|
TM258LF66DT4L |
DI12DE |
12 Digital Inputs 24 VDC, Sink, IEC 61131-2, Type 1 |
|
DI12DE_1 |
12 Digital Inputs 24 VDC, Sink, IEC 61131-2, Type 1 |
|
|
DO12TE |
12 Outputs 24 VDC / 0.5 A |
|
|
DO12TE_1 |
12 Outputs 24 VDC / 0.5 A |
|
|
AI4LE |
4 Inputs ±10 V / 0... 20 mA |
|
|
TM258LF42DR |
DI6DE |
6 Digital Inputs 24 VDC, Sink, IEC 61131-2, Type 1 |
|
DI6DE_1 |
6 Digital Inputs 24 VDC, Sink, IEC 61131-2, Type 1 |
|
|
DO6RE |
6 Outputs, 30 VDC / 250 VAC / 5 A, relay contact |
|
|
D000E |
Dummy module |
|
|
DO6RE_1 |
6 Outputs, 30 VDC / 250 VAC / 5 A, relay contact |
Embedded Regular I/O Configuration
To configure embedded regular I/O, proceed as follows:
|
Step |
Action |
|---|---|
|
1 |
In the Devices tree, double-click MyController > TM5 > TM5_Manager > Embedded Bus > Module_x. |
|
2 |
Select the I/O Configuration tab. |
I/O Configuration Tab Description
The I/O Configuration tab contains the following columns:
|
Column |
Description |
Editable |
|---|---|---|
|
Parameter |
Parameter name |
No |
|
Type |
Parameter data type |
No |
|
Value |
Value of the parameter |
If the parameter is editable, an edit frame can be opened by double-clicking. |
|
Default Value |
Default parameter value |
No |
|
Unit |
Unit value of the parameter |
No |
|
Description |
Short description of the parameter |
No |

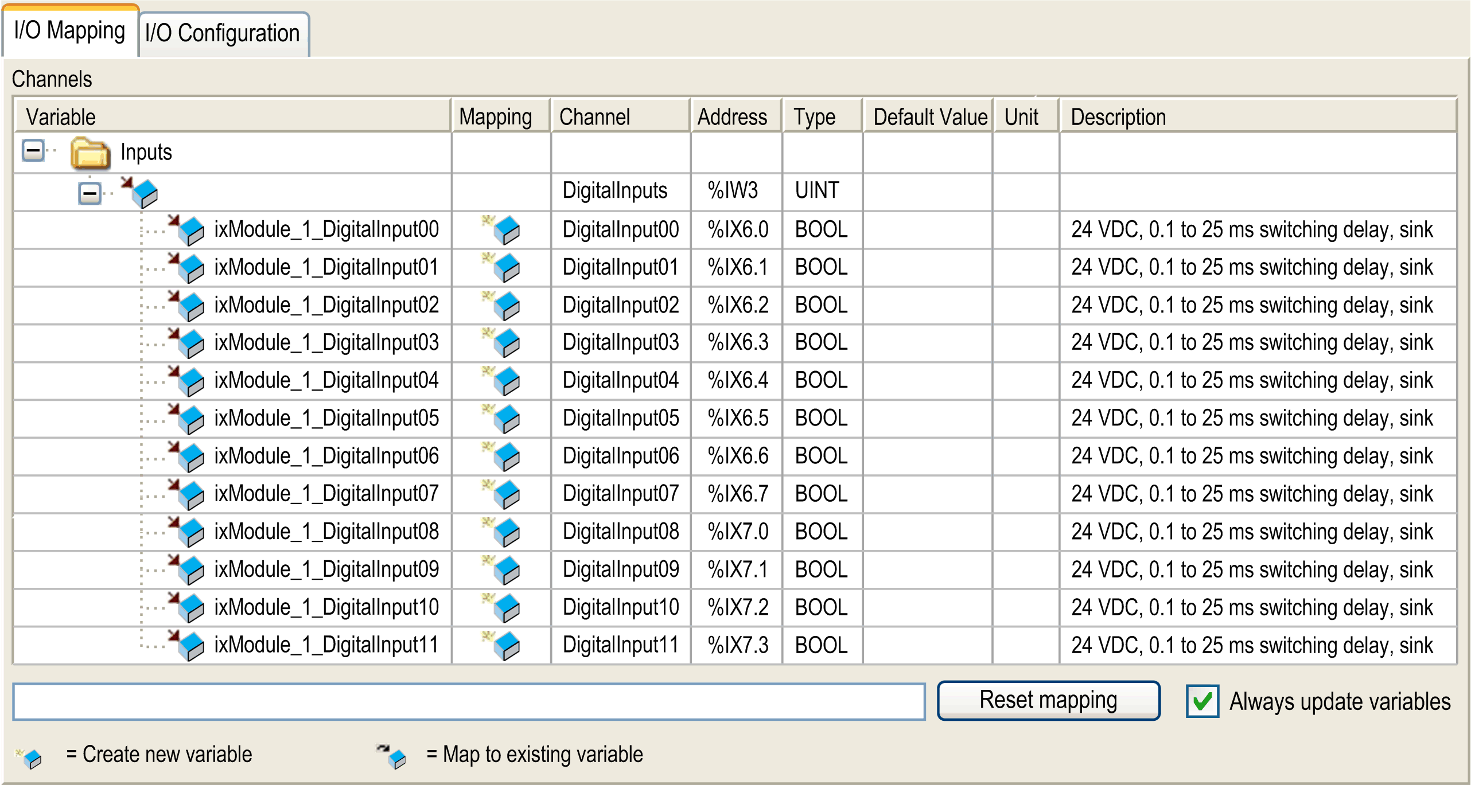

Variables can be defined and named in the I/O Mapping tab. Additional information such as topological addressing is also provided in this tab:
The I/O Mapping tab contains the following columns:
|
Column |
Description |
|---|---|
|
Variable |
Lets you map the channel on a variable. Double-click the icon to enter the variable name. If it is a new variable, the variable is created. New variables are automatically created on each channel according to Automatic I/O mapping project option settings. It is also possible to map an existing variable with the variables Input Assistant by clicking the ... button. |
|
Mapping |
Indicates if the channel is mapped on a new variable or an existing variable |
|
Channel |
Name of the channel of the device |
|
Address |
Address of the channel |
|
Type |
Data type of the channel |
|
Default Value |
Value taken by the Output when the controller is in a STOPPED state. Double-click to change the default value. |
|
Unit |
Unit of the channel value |
|
Description |
Description of the channel |
