The Services tab is divided in three parts:
oRTC Configuration
oDevice Identification
oPost Configuration

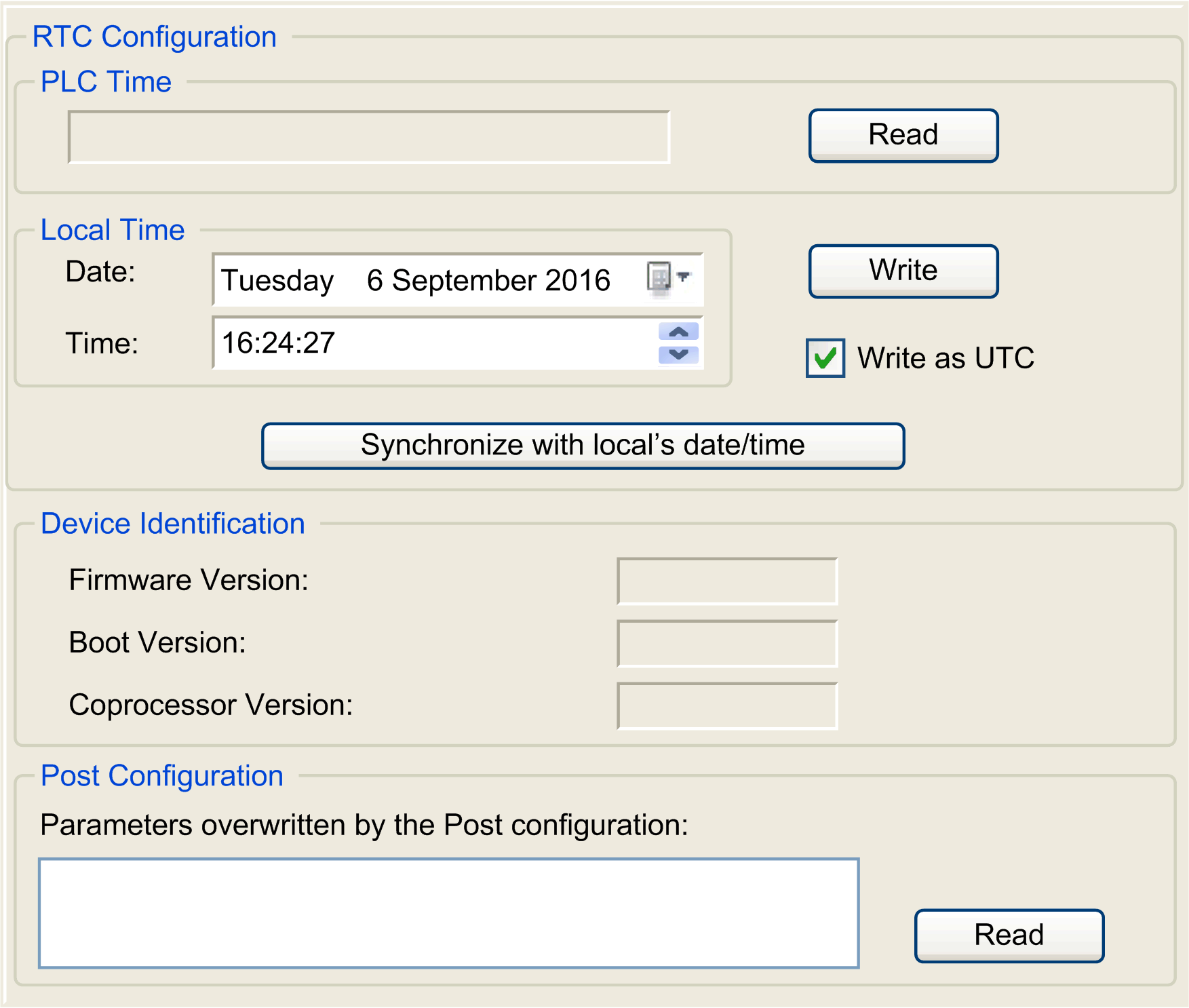

The figure below shows the Services tab:
NOTE: To have controller information, you must be connected to the controller.
NOTE: RTC information can be configured by Web Server or using the SysTimeRtcSet function block. For more information, refer to the M262 System Library Guide.
|
Element |
Description |
|
|---|---|---|
|
RTC Configuration |
PLC Time |
Displays the date and time read from the controller when the Read button is clicked, with no conversion applied. This read-only field is initially empty. If Write as UTC is selected, PLC Time is in UTC. |
|
Read |
Reads the date and time saved on the controller and displays the values in the PLC Time field. |
|
|
Local Time |
Lets you define a date and a time that are sent to the controller when the Write button is clicked. If necessary, modify the default values before clicking the Write button. A message box informs you about the result of the command. The date and time fields are initially filled with the current PC settings. |
|
|
Write |
Writes the date and time defined in the Local time field to the logic controller. A message box informs you of the result of the command. Select the Write as UTC checkbox before running this command to write the values in UTC format. |
|
|
Synchronize with local date/time |
Lets you directly send the PC settings. A message box informs you of the result of the command. Select Write as UTC before running this command to use UTC format. Use UTC time when using secure communication. |
|
|
Device Identification |
Displays the Firmware Version, the Boot Version, and the Coprocessor Version of the selected controller, if connected. |
|
|
Post Configuration |
Displays the application parameters overwritten by the Post configuration. |
|
