storetm3bus_w: Change the TM3 Management Mode

Function Description

This function allows the controller application to change the TM3 error management mode (passive/active) and to manually restart the TM3 bus.

Library and Namespace

Library name: TM3System

Namespace: SEC_TM3Sys

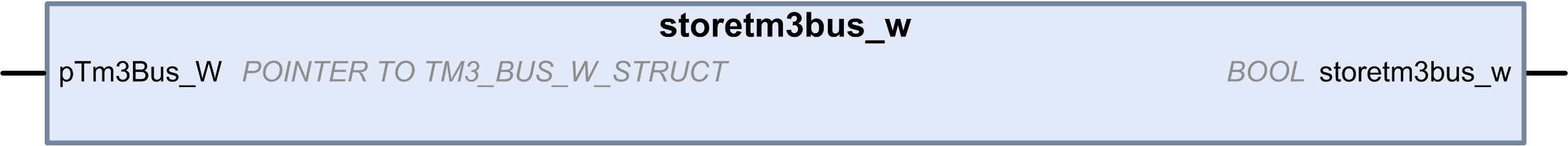

Graphical Representation

IL and ST Representation

To see the general representation in IL or ST language, refer to the chapter Function and Function Block Representation.

I/O Variable Description

The following table describes the input variable:

Input	Type	Comment
pTm3Bus_W	POINTER TO TM3_BUS_W_STRUCT	Pointer to the TM3_BUS_W structure.

The following table describes the output variable:

Output	Type	Comment
storetm3bus_w	BOOL	TRUE = indicates that the action is successfully completed.
