This expansion module is an 8-point, 120 Vac input module with a terminal block.
For further hardware information, refer to TM2DAI8DT.

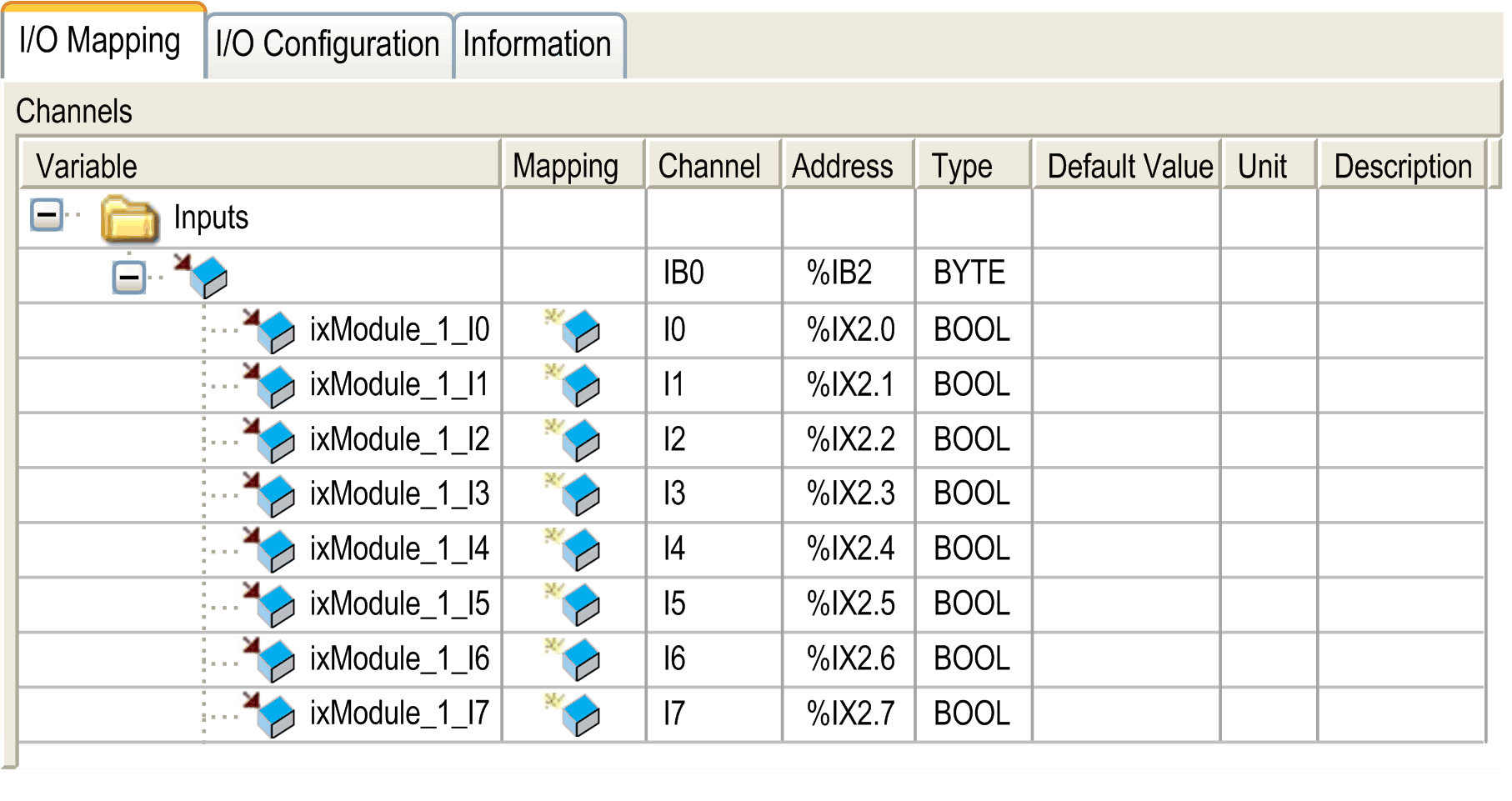

This table identifies the addresses of each input and the channel name.
|
Channel |
Type |
Description |
|---|---|---|
|
IB0 |
State of all inputs |
|
|
I0 |
State of input 0 |
|
|
... |
... |
|
|
I7 |
State of input 7 |
For further generic descriptions, refer to I/O Mapping Tab Description.
This tab allows you to configure the module as an optional module:
