This expansion module is a 32-point, 24 Vdc input module with a HE10 connector.
For further hardware information, refer to TM2DDI32DK.

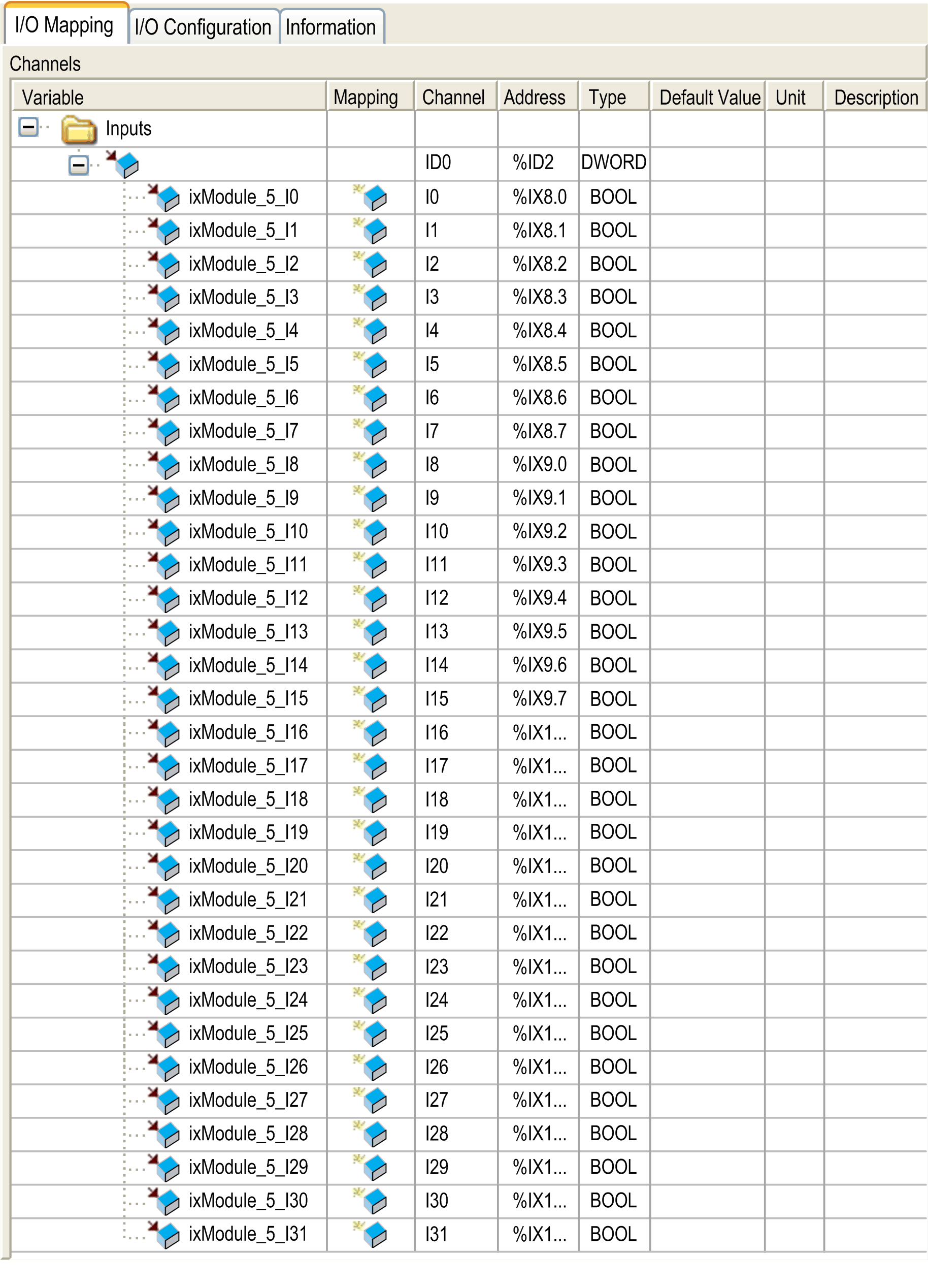

This table identifies the addresses of each input and the channel name.
|
Channel |
Type |
Description |
|---|---|---|
|
ID0 |
WORD |
State of all inputs |
|
I0 |
BOOL |
State of input 0 |
|
... |
... |
|
|
I31 |
State of input 31 |
For further generic descriptions, refer to I/O Mapping Tab Description.

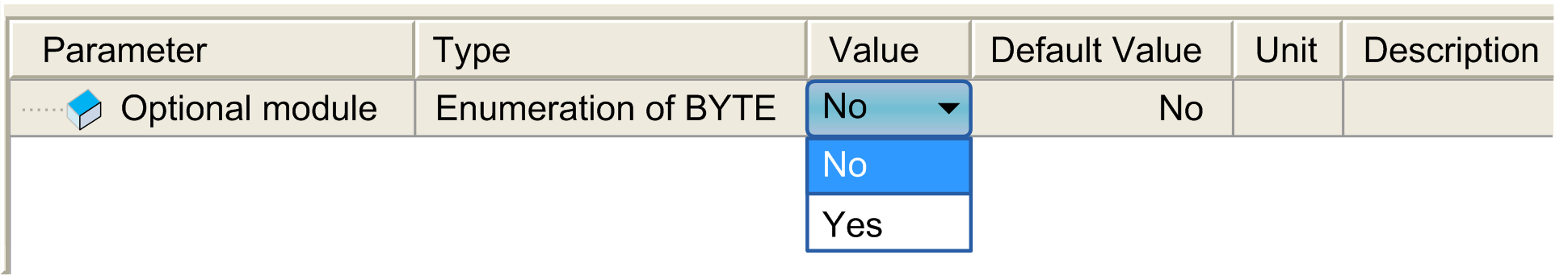

This tab allows you to configure the module as an optional module:
