This expansion module is an 8-point transistor sink output module with a terminal block.
For further hardware information, refer to TM2DDO8UT.

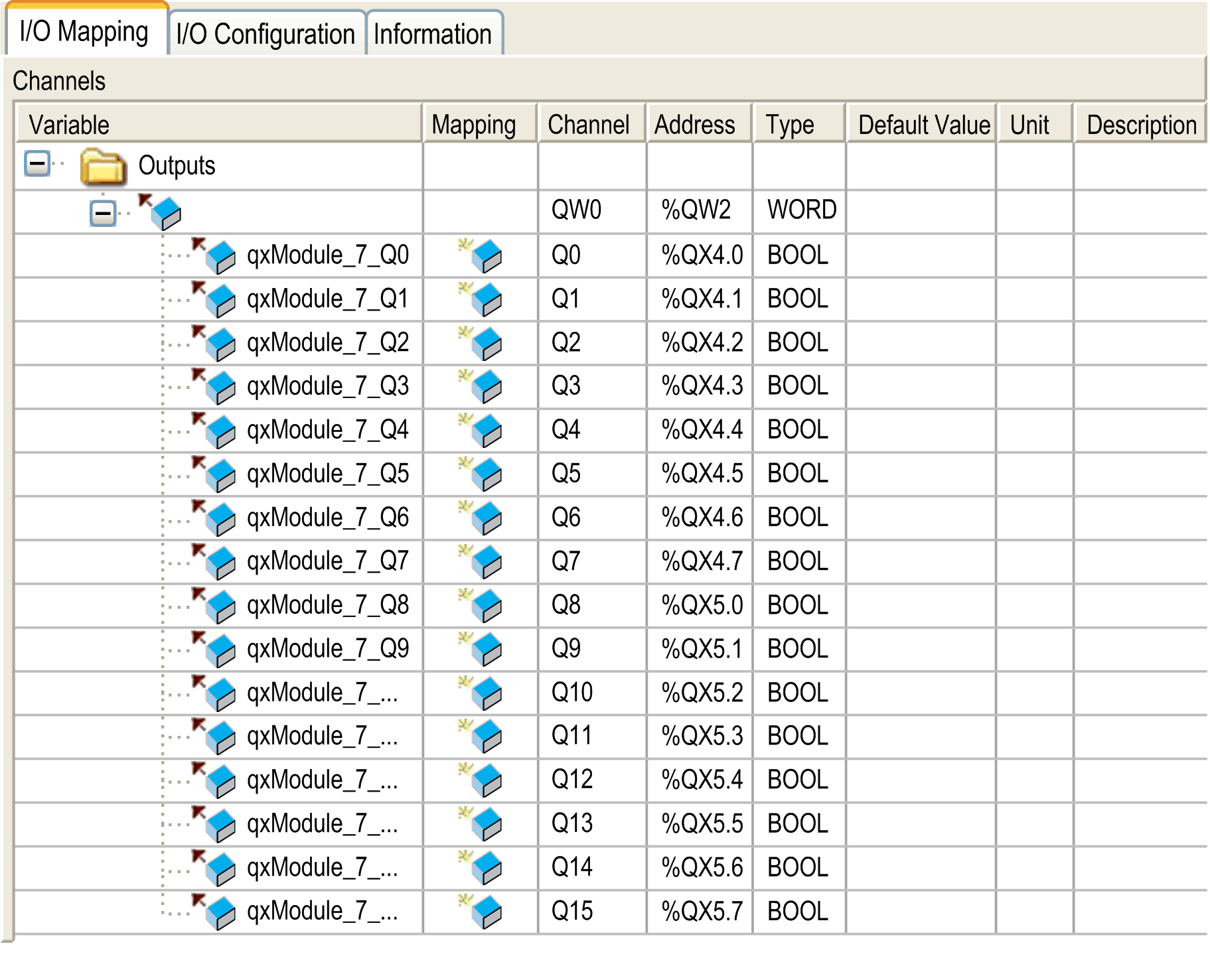

This table identifies the addresses of each output and the channel name.
|
Channel |
Type |
Default Value |
Description |
|---|---|---|---|
|
QB0 |
BYTE |
- |
Command byte of all outputs |
|
Q0 |
BOOL |
- TRUE FALSE |
Command bit of output 0 |
|
... |
... |
||
|
Q7 |
Command bit of output 7 |
For further generic descriptions, refer to I/O Mapping Tab Description.
This tab allows you to configure the module as an optional module:
If the module is connected to a distributed device, you can configure the fallback behavior.
