These expansion modules have a built-in HE10 (MIL 20) connector for the connection of outputs and power supply.
Telefast sub-bases are not compatible with this module.

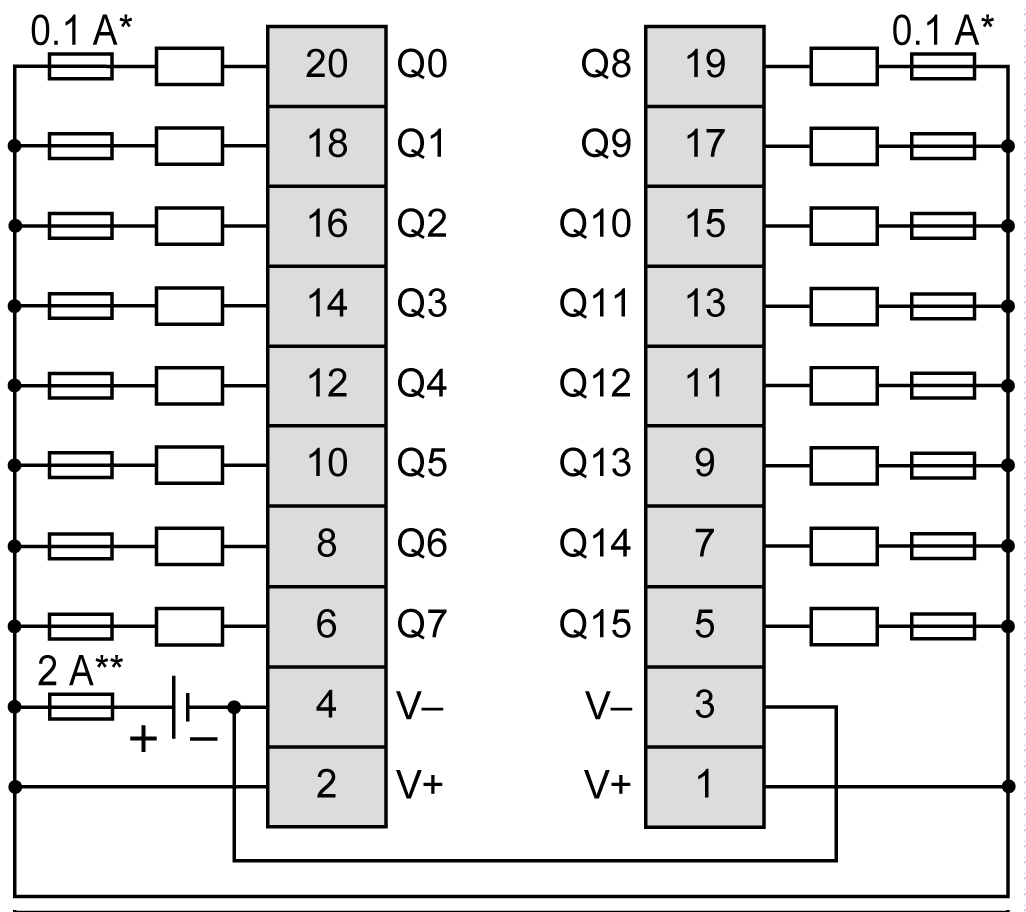

The following figure illustrates the connections between the outputs, the actuators, and their commons:
* Type T fuse
** Type F fuse
For information about 24 Vdc power supply, refer to DC Power Supply Characteristics.
