TM3DQ8U / TM3DQ8UG Wiring Diagram

Introduction

These expansion modules have a built-in removable screw or spring terminal block for the connection of outputs and power supply.

Wiring Rules

See Wiring Best Practices.

Wiring Diagram

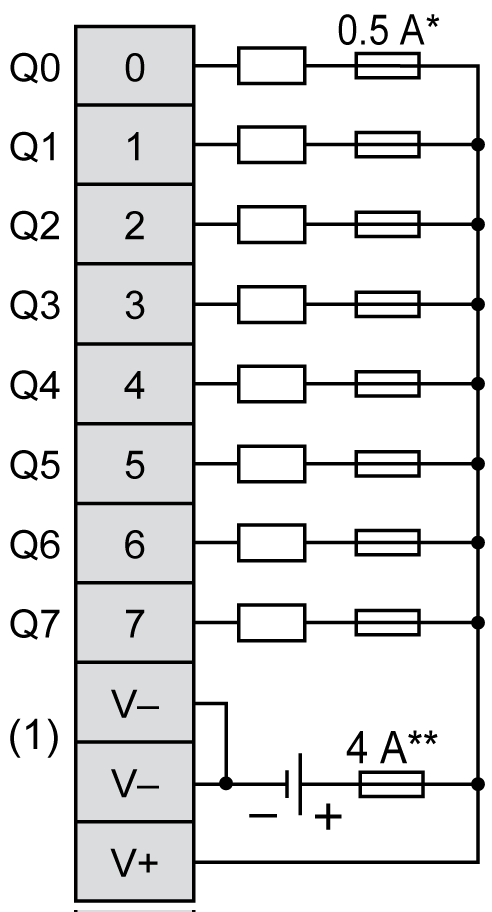

The following figure illustrates the connections between the outputs, the actuators, and their commons:

*   Type T fuse

**   Type F fuse

(1)   The V- terminals are connected internally.

For information about 24 Vdc power supply, refer to DC Power Supply Characteristics.
