These are the general characteristics of the TM4ES4 module.
See also Environmental Characteristics.
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Do not exceed any of the rated values specified in the environmental and electrical characteristics tables. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |

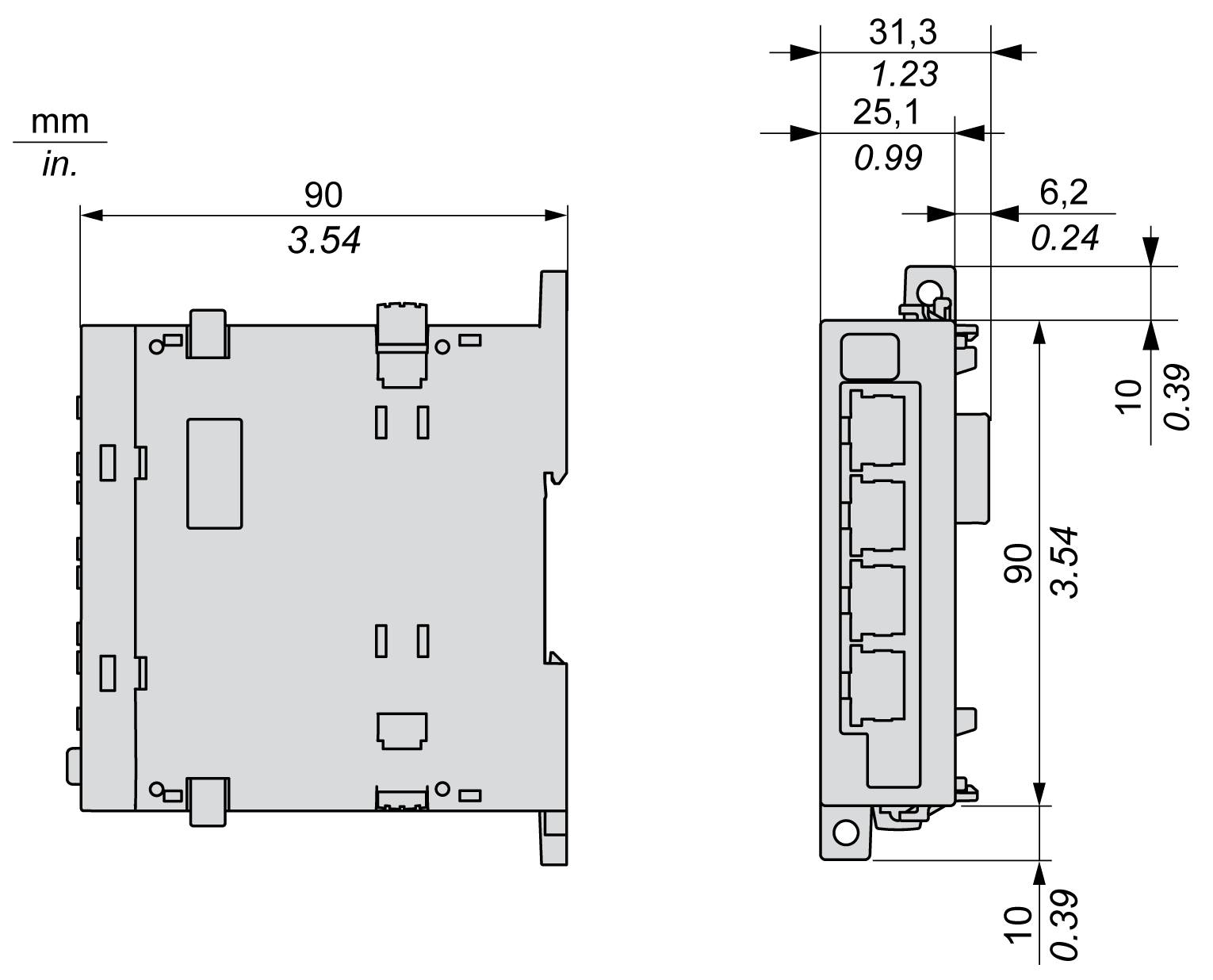

The following diagrams show the dimensions of the TM4ES4 module:
The table describes the general characteristics of the TM4ES4 module:
|
Characteristic |
Value |
|
|---|---|---|
|
Consumption |
360 mA |
|
|
Power dissipation |
2.5 W |
|
|
Weight |
125 g (4.41 oz) |
|
The table describes the characteristics of the TM4ES4 module:
|
Characteristic |
Description |
|---|---|
|
Standard |
Ethernet |
|
Connector type |
RJ45 |
|
Baud rate |
Supports Ethernet "10BaseT" and "100BaseTX" with auto-negotiation |
|
Auto-crossover |
MDI / MDIX |
NOTE: The controller supports the MDI/MDIX auto-crossover cable function. It is not necessary to use special Ethernet crossover cables to connect devices directly to this port (connections without an Ethernet hub or switch).
