The table below describes the main characteristics of the TM5SEAISG module:
|
Main Characteristics |
|
|---|---|
|
Number of input channels |
1 |
|
Measurement type |
Full-bridge strain gauge |
|
Sensor operating range |
85...5000 Ω |
|
Resolution |
24-bit |
For configuring and programming your TM5SEAISG electronic module, refer to IoDrvTM5SEAISG Strain Gauge Library Guide.
The following figure shows the slice with a TM5SEAISG:
The table below shows the model numbers for the terminal block and bus base associated to TM5SEAISG:
|
Number |
Model Number |
Description |
Color |
|---|---|---|---|
|
1 |
TM5ACBM11 or TM5ACBM15 |
Bus base
Bus base with address setting |
White
White |
|
2 |
TM5SEAISG |
Electronic module |
White |
|
3 |
TM5ACTB12 |
Terminal block, 12 pins |
White |
NOTE: For more information, refer to TM5 bus bases and terminal blocks

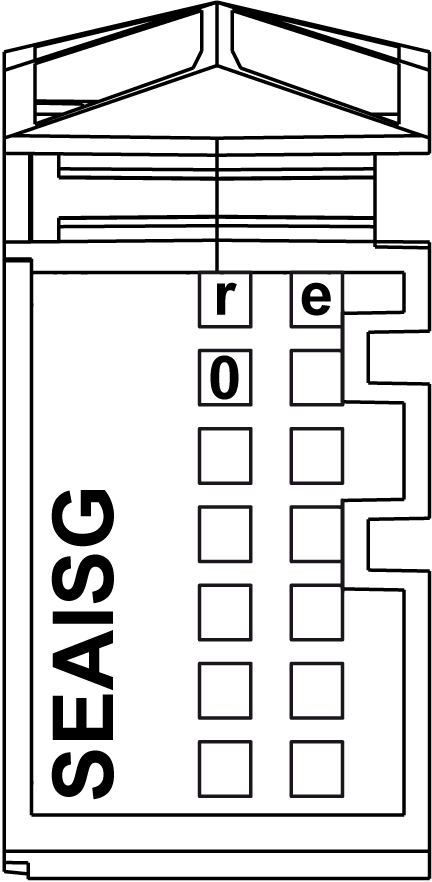

The following figure shows theTM5SEAISG status LEDs:
The table below shows theTM5SEAISG status LEDs:
|
LEDs |
Color |
Status |
Description |
|---|---|---|---|
|
r |
Green |
Off |
No power supply |
|
Single Flash |
Reset state |
||
|
Flashing |
Preoperational state |
||
|
On |
Normal operation |
||
|
e |
Red |
Off |
OK or no power supply |
|
On |
Detected error or reset state |
||
|
0 |
Green |
Off |
Broken wire detected The analog/digital converter is busy |
|
On |
The analog/digital converter is running, value is available |
