TM5C24D18T General Description

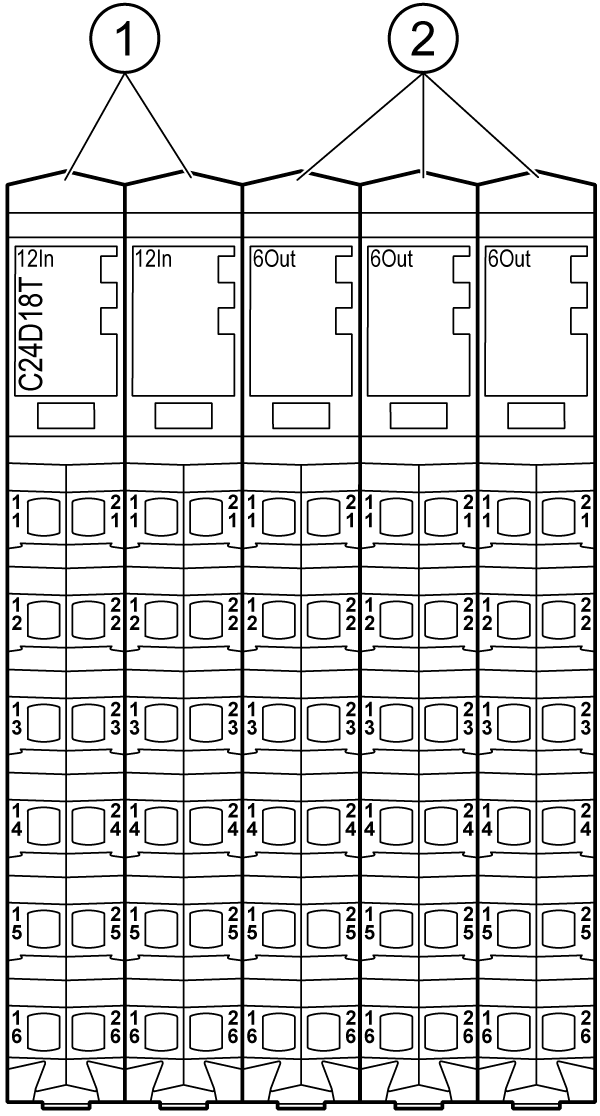

The following figure shows the electronic modules of the TM5C24D18T:
|
N° |
Designation |
Refer to |
|---|---|---|
|
1 |
Input electronic module / 12 digital inputs |
|
|
2 |
Output electronic module / 6 digital outputs |
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Do not exceed any of the rated values specified in the environmental and electrical characteristics tables. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
The following table provides the general characteristics of the TM5C24D18T module:
|
General characteristics |
|
|---|---|
|
Rated power supply voltage Power supply source |
24 Vdc Connected to the 24 Vdc I/O power segment |
|
Power supply range |
20.4...28.8 Vdc |
|
24 Vdc I/O power segment current draw |
140 mA |
|
Max. current consumed by the loads on the 24 Vdc I/O power segment |
9000 mA |
|
Max. current for sensors supply |
– |
|
Max. current for actuators supply |
– |
|
TM5 Bus 5 Vdc current draw |
70 mA |
|
Power dissipation |
3.71 W max. |
|
Weight |
240 g (8.46 oz) |
|
Id code for firmware update |
45268 dec |
See also Environmental Characteristics.
