TM5CAI8O8VL General Description

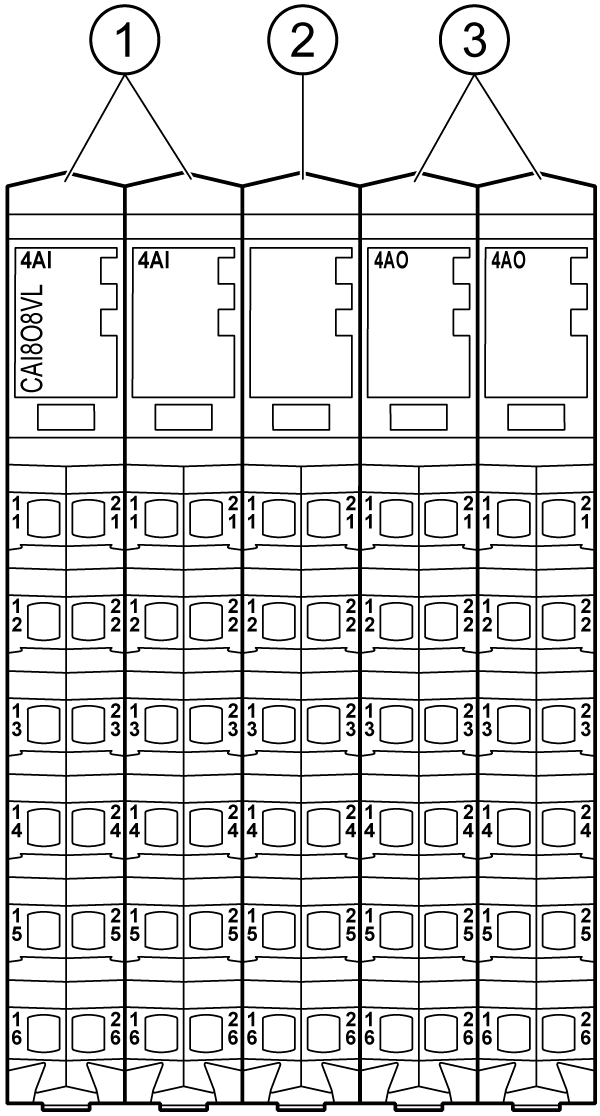

The following figure shows the electronic modules of the TM5CAI8O8VL:
|
N° |
Designation |
Refer to |
|---|---|---|
|
1 |
Analog Input electronic module / 4 Analog Inputs |
|
|
2 |
Dummy Module |
|
|
3 |
Analog Output electronic module / 4 Analog Outputs |
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Do not exceed any of the rated values specified in the environmental and electrical characteristics tables. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
The following table provides the general characteristics of the TM5CAI8O8VL module:
|
General characteristics |
|
|---|---|
|
Rated power supply voltage Power supply source |
24 Vdc Connected to the 24 Vdc I/O power segment |
|
Power supply range |
20.4...28.8 Vdc |
|
24 Vdc I/O power segment current draw |
205 mA |
|
TM5 Bus 5 Vdc current draw |
52 mA |
|
Power dissipation |
5.25 W |
|
Weight |
252 g (8.89 oz) |
|
Id code for firmware update |
50611 |
See also Environmental Characteristics.
