The compact I/O module is composed of:
obus base and a set of five electronic modules
oa set of five terminal blocks

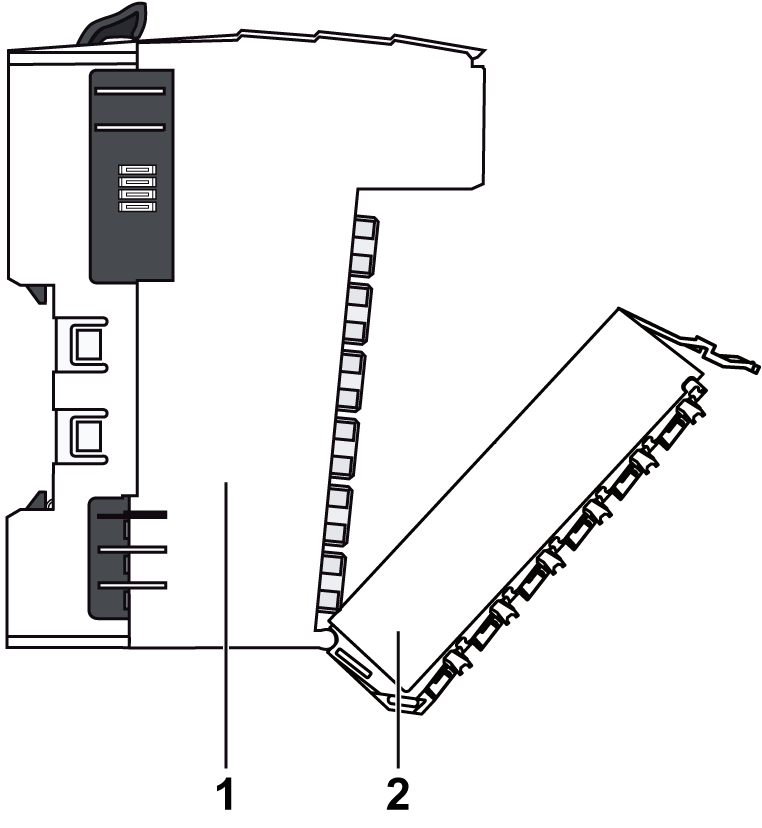

The following figure shows the elements of a compact I/O module.
1.Integrated bus base and electronic modules of the compact I/O module (inseparable)
2.Terminal blocks
See also the physical description of the electronic module and terminal block.
NOTE: The terminal blocks associated to the compact I/O block are a 12-pin white terminal block.
|
NOTICE |
|
ELECTROSTATIC DISCHARGE |
|
oNever touch the contacts of the electronic module. oAlways keep the connector in place during normal operation. |
|
Failure to follow these instructions can result in equipment damage. |

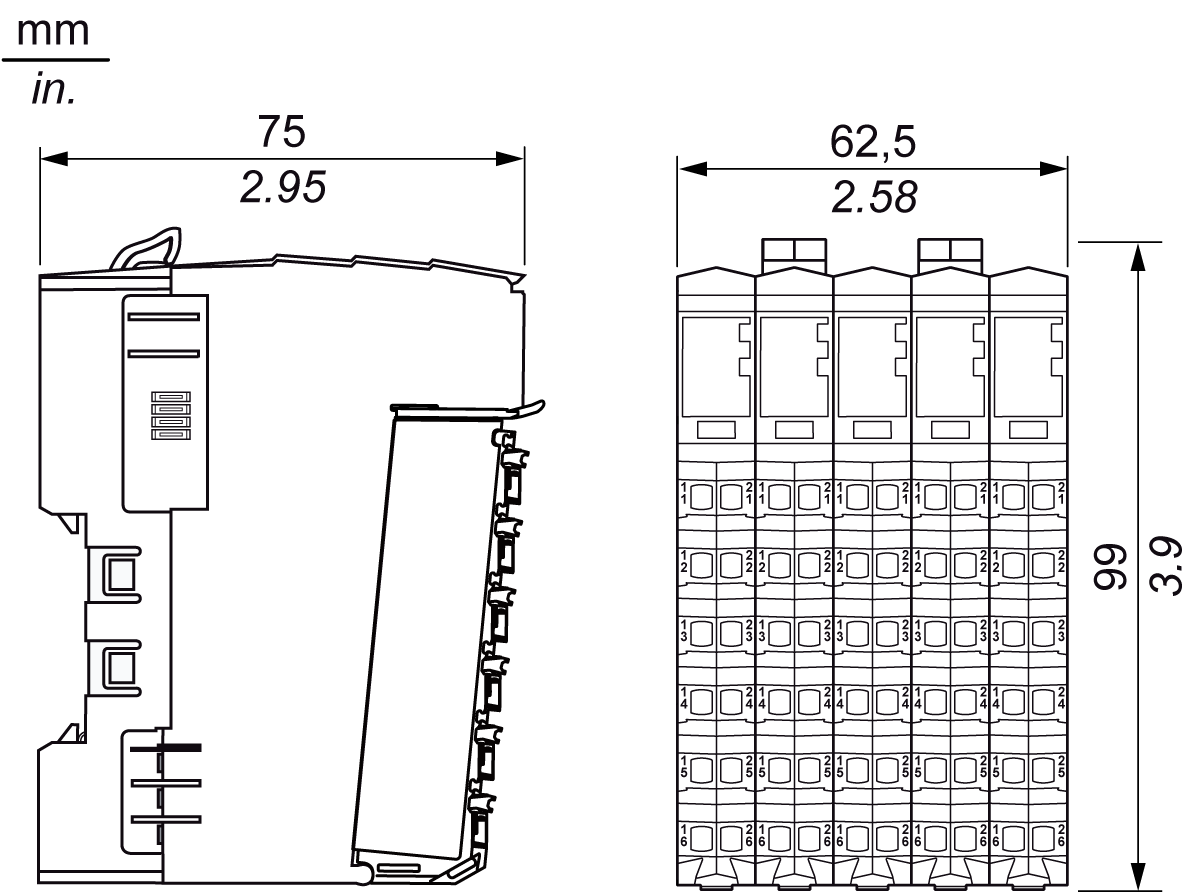

The following figure shows the dimensions of a compact I/O module:
The installation procedure of the modules is to install and assemble them directly on the DIN rail.

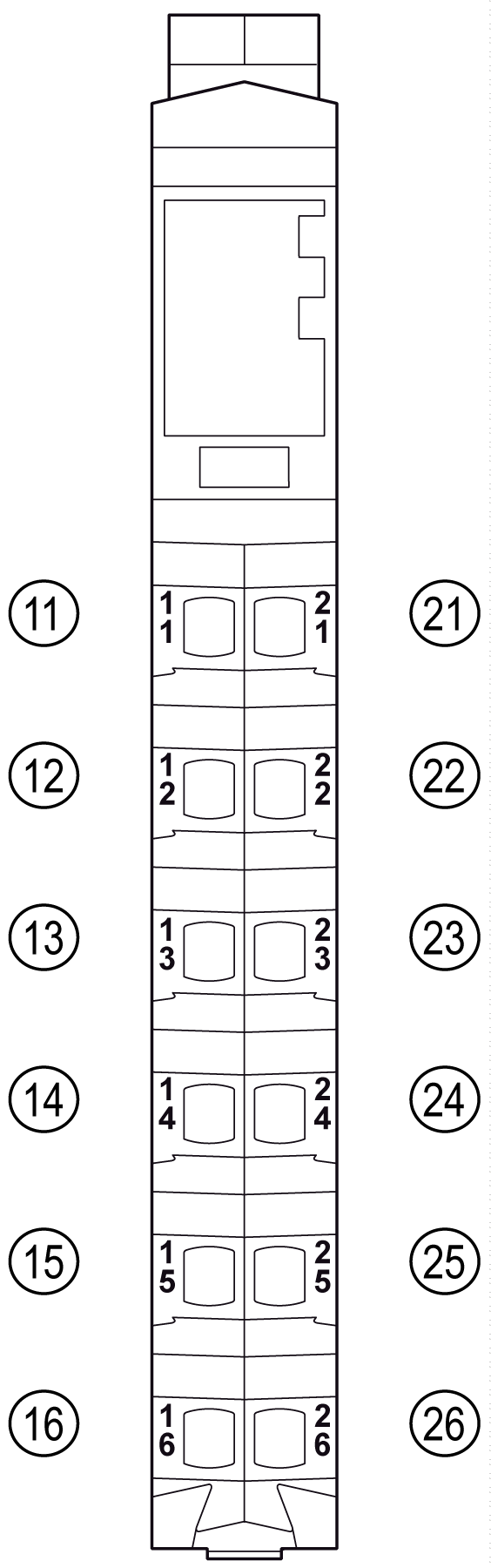

The following figure shows the pin assignments for the 12-pin terminal block:
See also the physical description of the terminal block.
Refer to the Installation of Accessories.
Refer to the Labeling the TM5 System.
