Each slice consists of three elements. These elements are the bus base, the electronic module and the terminal block.

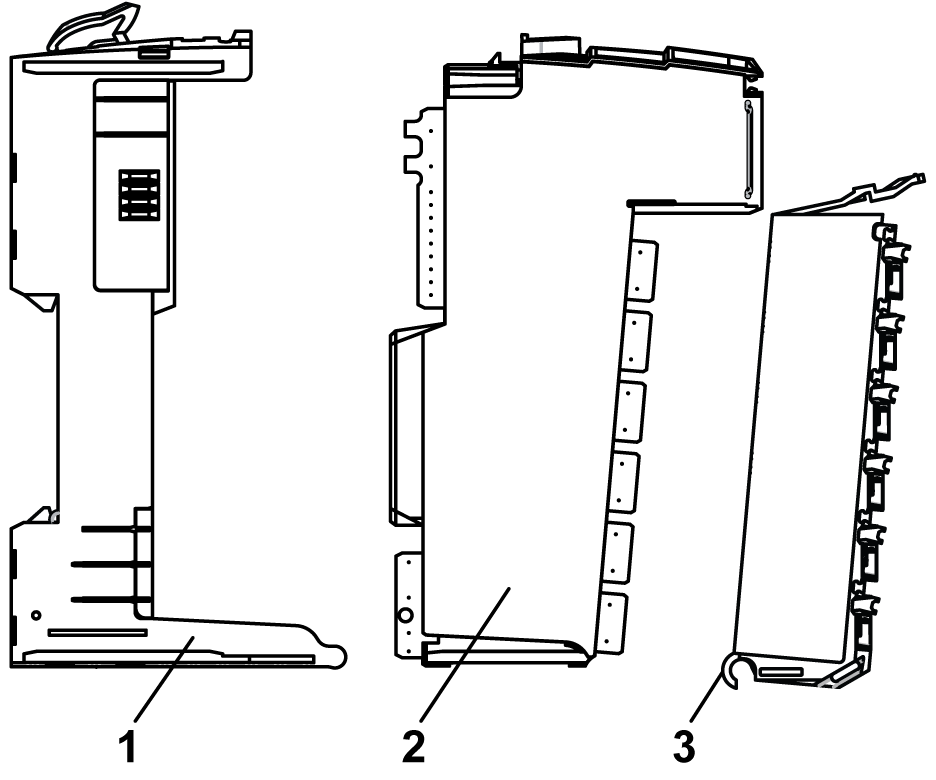

The following illustration shows the elements of a slice.
1 Bus base
2 Electronic module
3 Terminal block
When assembled the three components form an integral unit that resists vibration and electrostatic discharge.
|
NOTICE |
|
ELECTROSTATIC DISCHARGE |
|
oNever touch the contacts of the electronic module. oAlways keep the connector in place during normal operation. |
|
Failure to follow these instructions can result in equipment damage. |

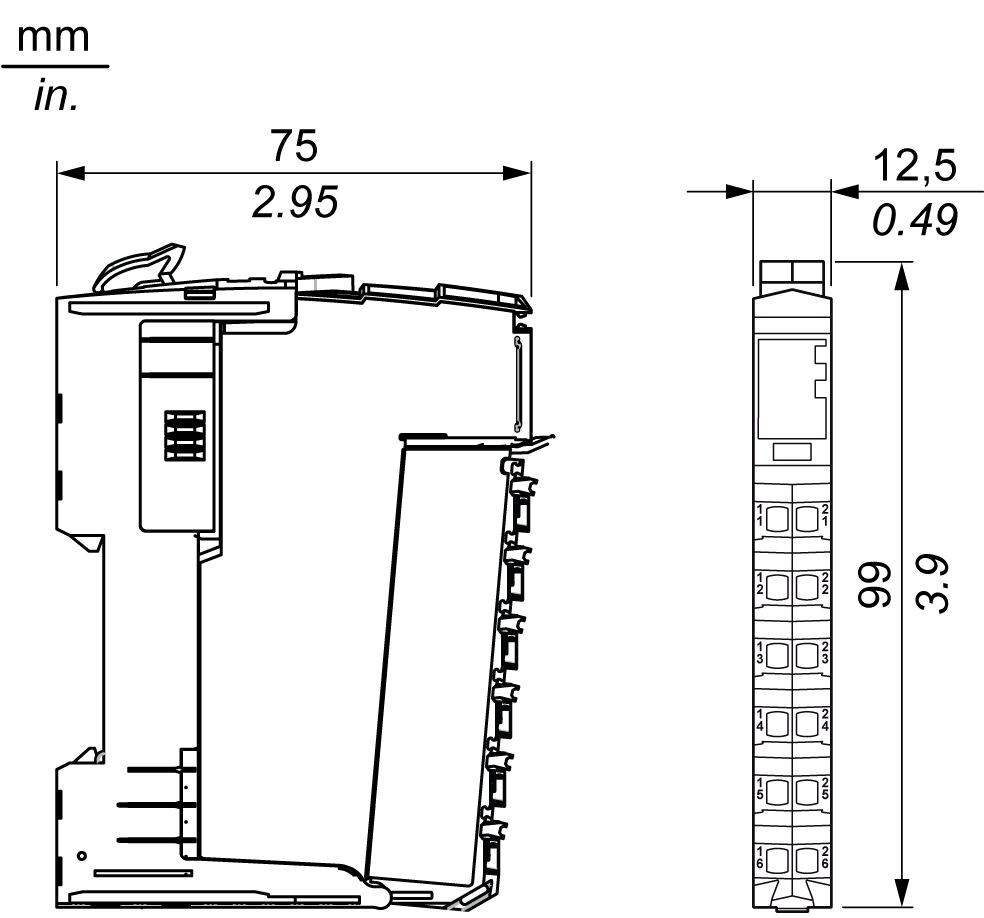

The following illustration shows the dimensions of a slice:

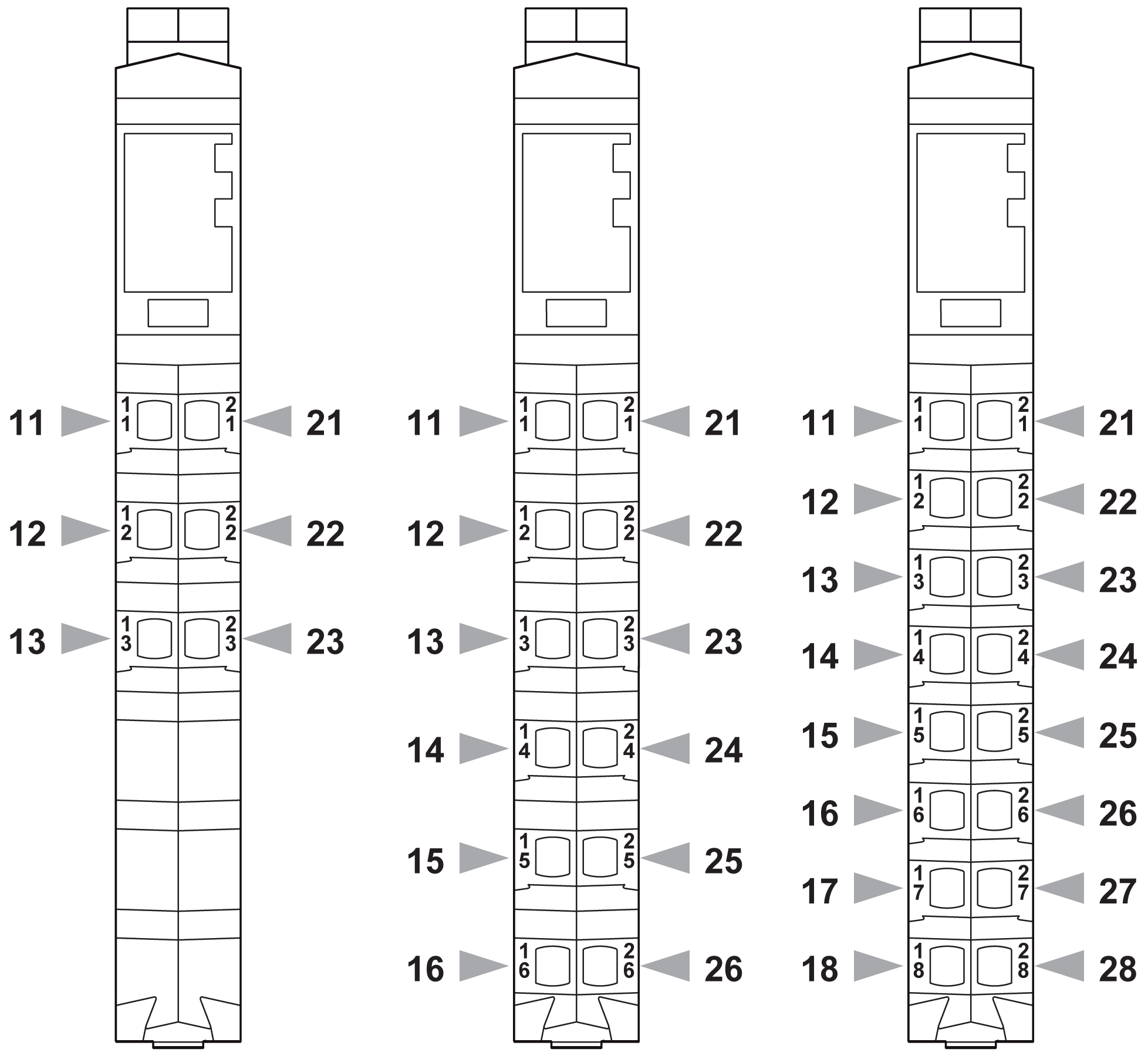

The following illustration shows the pin assignments respectively for the 6-pin, 12-pin and the 16-pin terminal blocks:
Refer to the Installation of Accessories.
Refer to the Labeling the TM5 System.
