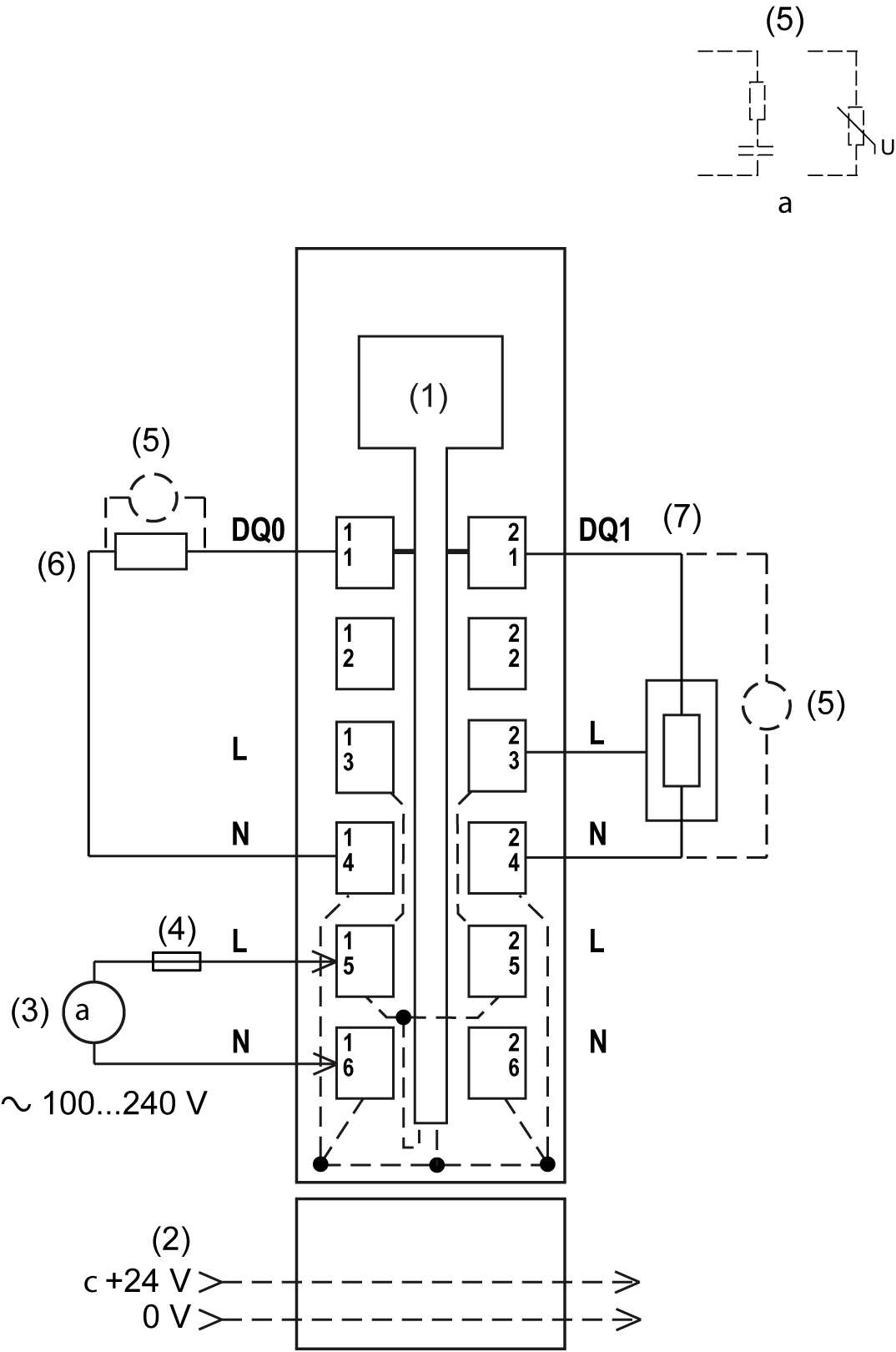

The following illustration shows the wiring diagram for TM5SDO2S:
1 Internal electronics
2 24 Vdc I/O power segment integrated into the bus bases
3 External power supply 100...240 Vac
4 External fuse type T slow-blow 3.15 A - 250 V
5 Inductive load protection
6 2-wire load
7 3-wire load
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Do not connect wires to unused terminals and/or terminals indicated as “No Connection (N.C.)”. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Use the sensor and actuator power supply only for supplying power to sensors or actuators connected to the module. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
Refer to Protecting Outputs from Inductive Load Damage for additional important information on this topic.
