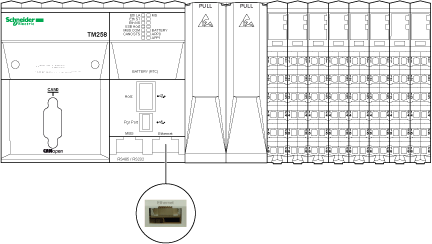

The following illustration shows the location of the Ethernet port of the controller:
The following table describes the different Ethernet characteristics:
|
Characteristic |
Description |
|---|---|
|
Standard |
Ethernet |
|
Connector type |
RJ45 |
|
Baud rate |
Supports Ethernet "10BaseT" and "100BaseTX" with auto-negotiation |
|
Auto-crossover |
MDI / MDIX |
|
Protocol supported |
oEcoStruxure Machine Expert Protocol oModbus Client/server oEthernet IP device oFTP server oHTTP server oSNMP |
|
IP address negotiation type supported |
oDHCP oConfigured IP |
|
Supplied current |
No |
The following illustration shows the Ethernet connector pins:
The following table describes the Ethernet connector pins:
|
Pin N° |
Signal |
|---|---|
|
1 |
TD+ |
|
2 |
TD- |
|
3 |
RD+ |
|
4 |
- |
|
5 |
- |
|
6 |
RD- |
|
7 |
- |
|
8 |
- |
For more information, please refer to Ethernet User Guide.
NOTE: The controller supports the MDI/MDIX auto-crossover cable function. It is not necessary to use special Ethernet crossover cables to connect devices directly to this port (connections without an Ethernet hub or switch).
The following illustration shows the LEDs on the front panel display:
The following table describes the Ethernet status LEDs:
|
Marking |
Description |
LED |
|
|---|---|---|---|
|
Color |
Description |
||
|
Eth LA |
Ethernet Activity |
Green / Yellow |
See Ethernet status LED below |
|
Eth ST |
Ethernet Status |
Green / Red |
|
|
Eth NS |
Ethernet Network Status |
Green / Red |
|
The following table describes the Ethernet status LED:
|
LED |
Status |
Description |
|---|---|---|
|
Eth LA |
Off |
No link |
|
Flashing green / yellow |
Power up testing. 3 flashes |
|
|
Solid green |
Link at 100 Mbit/s |
|
|
Solid yellow |
Link at 10 Mbit/s |
|
|
Flashing green |
Activity at 100 Mbit/s |
|
|
Flashing yellow |
Activity at 10 Mbit/s |
|
|
Eth ST |
Off |
No cable connected, no IP address obtained |
|
Flashing green / red |
Power up testing. 3 flashes |
|
|
Solid green |
Port is connected and an IP address obtained |
|
|
3 flashes green |
No cable connected, but the card has an IP address |
|
|
4 flashes green |
Duplicated IP address detected |
|
|
5 flashes green |
The card is performing a BOOTP or DHCP sequence |
|
|
6 flashes green |
The configured IP is invalid. The default IP is used instead. |
|
|
Eth NS |
Off |
The device does not have an IP address or is powered off |
|
Flashing green / red |
Power up testing. 3 flashes |
|
|
Solid green |
The device has at least one established connection |
|
|
Rapid flashing green |
The device has not established connections but has obtained an IP address |
|
|
Rapid flashing red |
One or more of the connections in which this device is the target has timed out. |
|
|
Solid red |
The device has detected that its IP address is already in use. The controller Ethernet port can not communicate using this IP address. |
