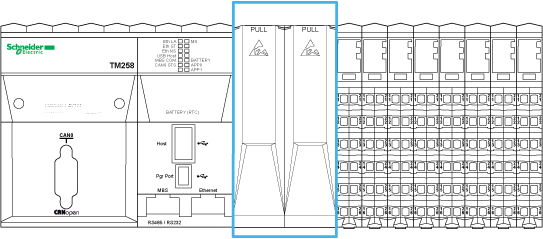

The following illustration shows the location of the controller PCI slots:
For more information, please refer to TM5 System General Rules for Implementing.
The following illustration shows the covers of the PCI slots found on the front of the controller:
There are two PCI slots to connect up to two interface modules on the controllers (TM258LD42DT4L, TM258LF42DT4L, TM258LF66DT4L, TM258LF42DR).
The PCI modules are used for specific application expansions of the controller. They are inserted in the PCI slots of the controller:
|
Reference |
Type |
Description |
|---|---|---|
|
TM5PCRS2 |
Serial line |
TM5 interface electronic module, 1 RS232, electrically isolated |
|
TM5PCRS4 |
Serial line |
TM5 interface electronic module, 1 RS485, electrically isolated |
|
TM5PCDPS |
Profibus DP |
TM5 interface electronic module, 1 RS485, electrically isolated |
For further details about installing PCI modules, please refer to PCI Electronic Modules Installation
|
NOTICE |
|
ELECTROSTATIC DISCHARGE |
|
oVerify that empty PCI slots have their covers in place before applying power to the controller. oDo not touch an exposed PCI connector. |
|
Failure to follow these instructions can result in equipment damage. |
