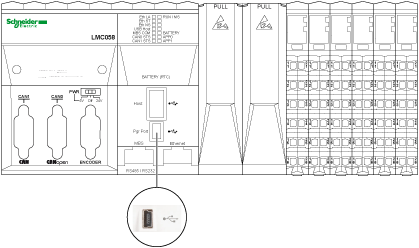

The following illustration shows the location of the USB mini-B programming port of the controller:
The USB Mini-B Port is the programming port you can use to connect a PC with a USB host port using EcoStruxure Machine Expert software. Using a typical USB cable, this connection is suitable for quick updates of the program or short duration connections to perform maintenance and inspect data values. It is not suitable for long-term connections such as commissioning or monitoring without the use of specially adapted cables to help minimize electromagnetic interference.
|
|
|
UNINTENDED EQUIPMENT OPERATION OR INOPERABLE EQUIPMENT |
|
oYou must use a shielded USB cable such as a BMX XCAUSBH0•• secured to the functional ground (FE) of the system for any long-term connection. oDo not connect more than one controller or bus coupler at a time using USB connections. oDo not use the USB port(s), if so equipped, unless the location is known to be non-hazardous. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
The following table describes the characteristics for the USB Programming port:
|
Parameter |
USB Programming Port |
|---|---|
|
Standard |
Hi-Speed USB 2.0 Device |
|
Connector type |
Mini-B |
|
Maximum baud rate |
480 Mbit/s |
|
Protocol supported |
oEcoStruxure Machine Expert Protocol oFTP Server oHTTP Server |
|
Supplied current |
No |
|
Maximum cable length |
3 m (9.8 ft) |
|
Isolation |
None |
