TM5 Physical Description

Introduction

Each slice consists of three elements. These elements are a red Safety bus base, a red electronic Safety I/O module, and a red Safety terminal block.

DANGER

INCOMPATIBLE COMPONENTS CAUSE ELECTRIC SHOCK OR ARC FLASH

oDo not associate components of a slice that have different colors.

oVerify that correct terminal blocks (minimally, matching colors and correct number of terminals) are installed on the appropriate electronic modules.

Failure to follow these instructions will result in death or serious injury.

Elements

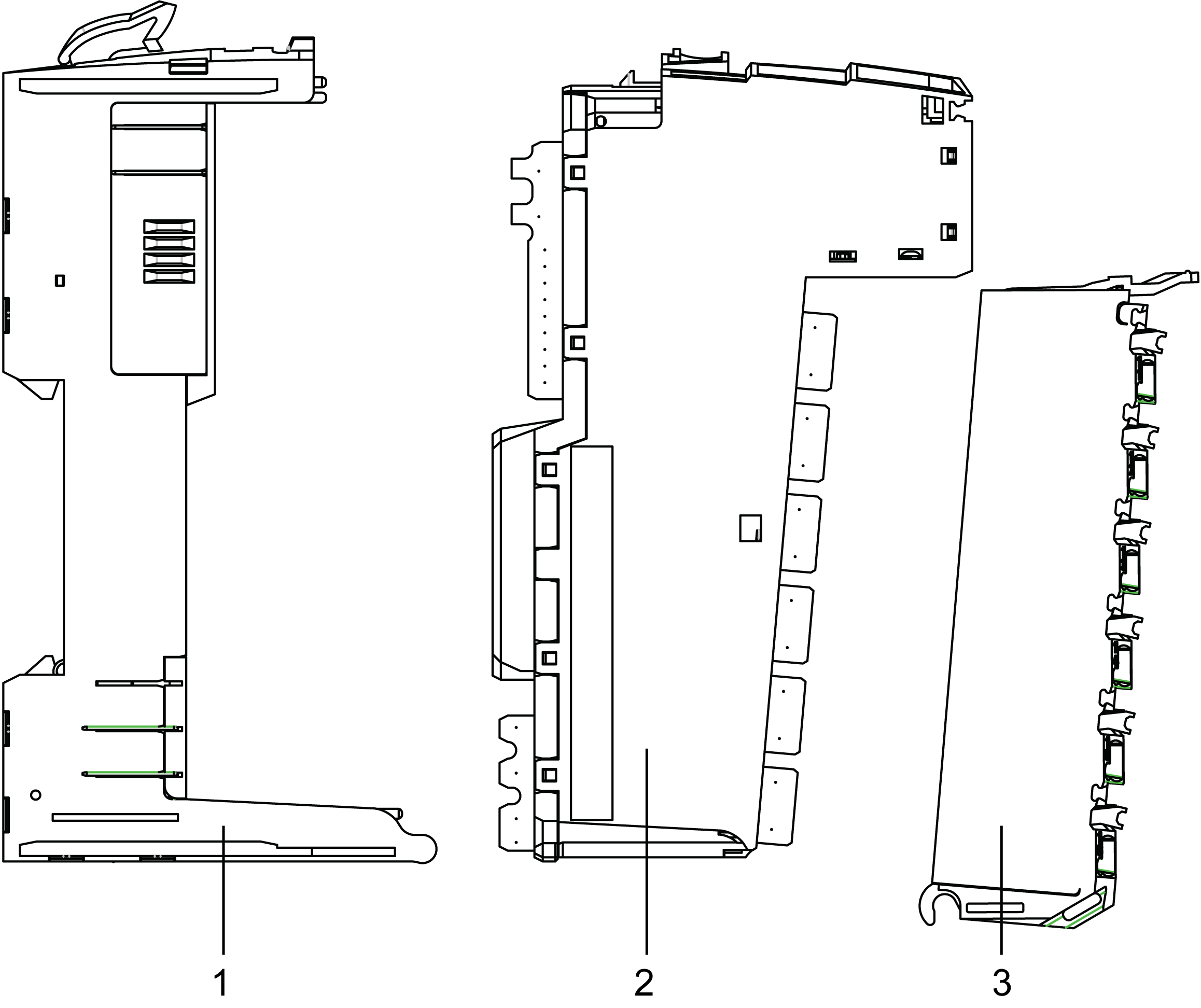

The following figure presents the elements of a slice:

1.Safety bus base

2.Electronic Safety I/O module

3.Safety terminal block

When assembled, the three components form an integral unit that resists vibration.

NOTICE

ELECTROSTATIC DISCHARGE

oNever touch the pin connectors of the block.

oAlways keep the cables or sealing plugs in place during normal operation.

Failure to follow these instructions can result in equipment damage.

Dimensions

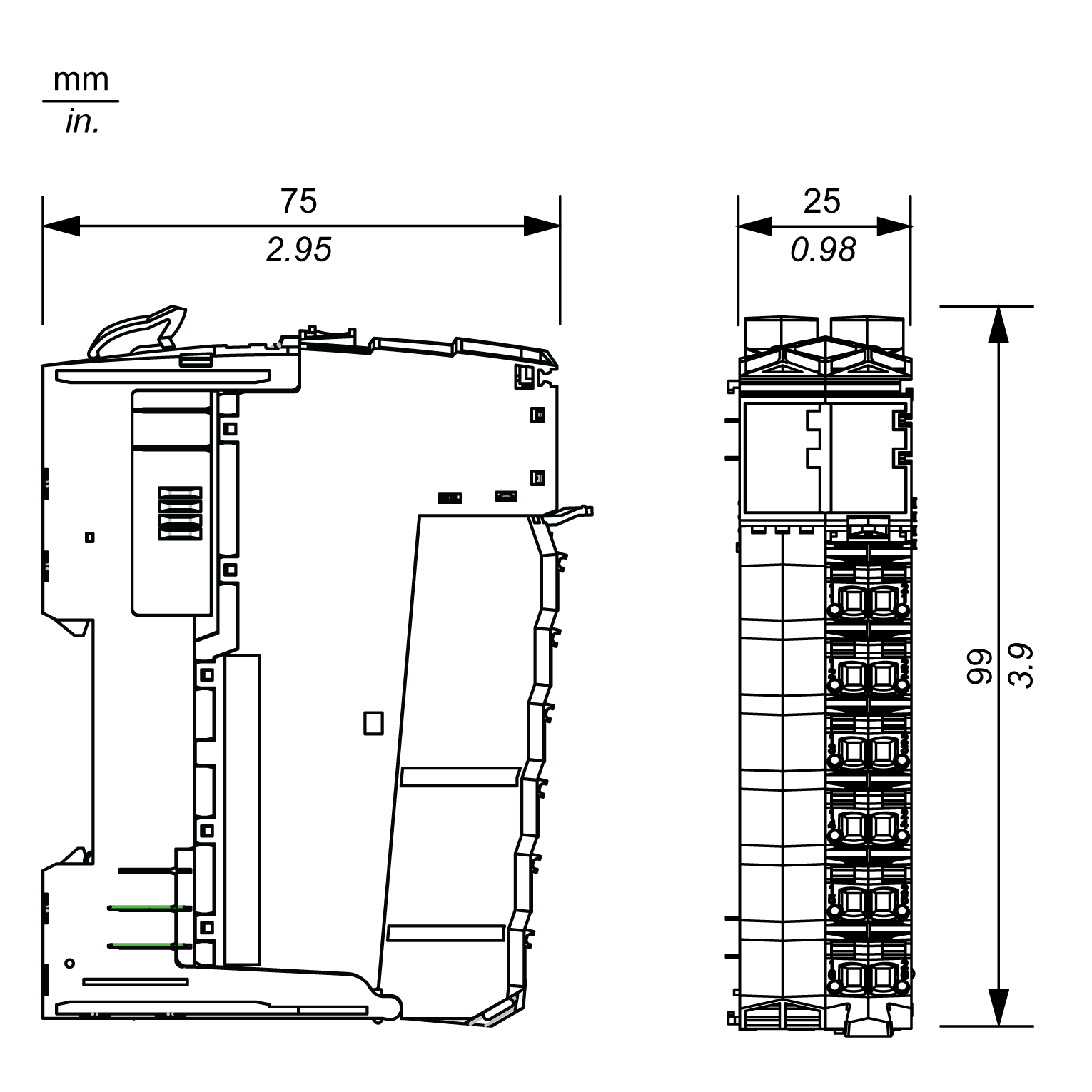

The following figure presents the dimensions of a slice:

Safety Bus Bases

For a detailed description of the Safety bus base, refer to:

oTM5ACBM3FS Safety bus base

oTM5ACBM4FS Safety bus base

Safety terminal block Pin Assignment

The following figure presents the pin assignments for the Safety terminal block:

TM5ACTB52FS	TM5ACTB5EFS	TM5ACTB5FFS

For a detailed description, refer to: oTM5ACTB52FS Safety terminal block oTM5ACTB5EFS Safety terminal block oTM5ACTB5FFS Safety terminal block

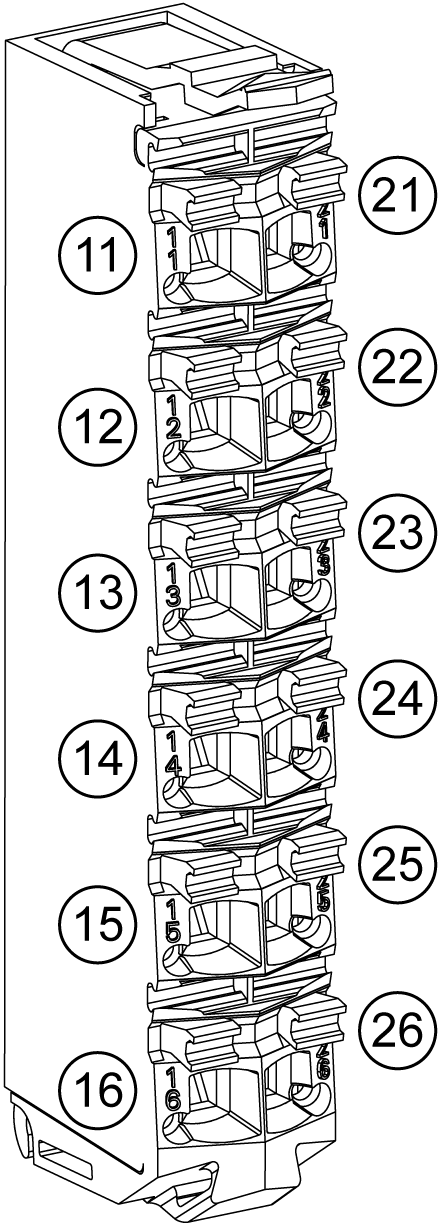

TM5ACTB52FS

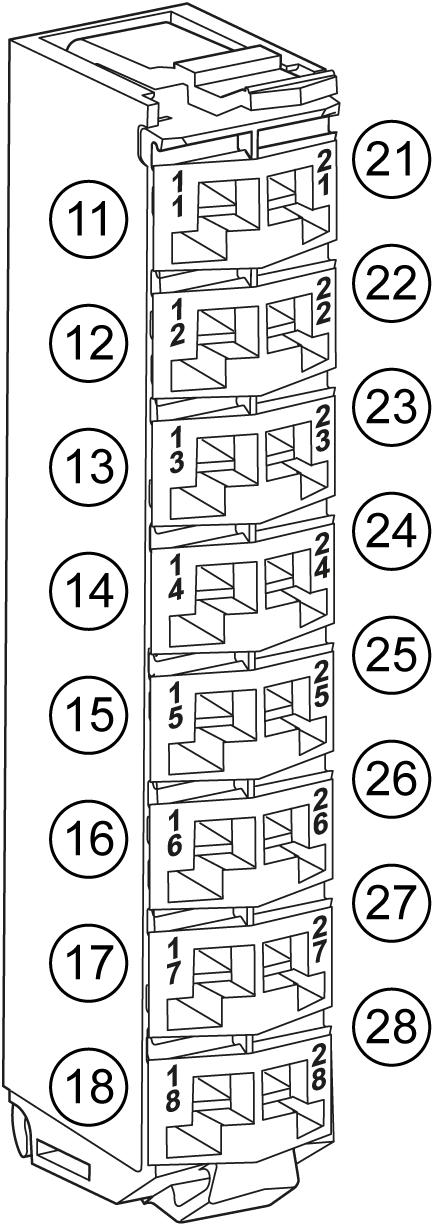

TM5ACTB5EFS

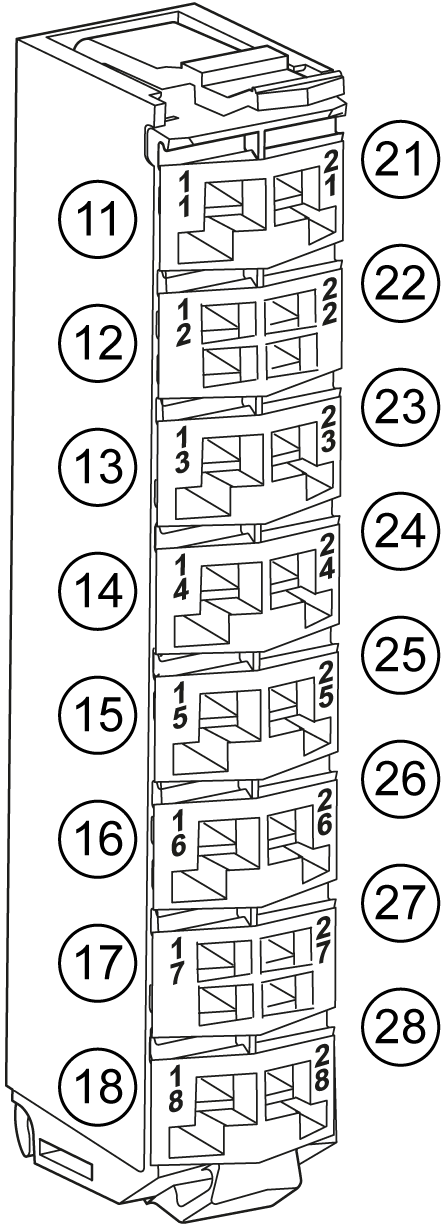

TM5ACTB5FFS

For a detailed description, refer to:

oTM5ACTB52FS Safety terminal block

oTM5ACTB5EFS Safety terminal block

oTM5ACTB5FFS Safety terminal block

Accessories

Refer to PacDrive TM5 / TM7 Safety Flexible System, System Planning and Installation Guide.

Labeling

Refer to PacDrive TM5 / TM7 Safety Flexible System, System Planning and Installation Guide.
