For mounting positions and minimum clearances, the PCI modules are mounted according to the rules defined for the controllers. Refer to the site requirements for the installation of the system.
NOTE: The PCI module is designed to operate within the same temperature range as the controllers, including the controller de-rating for extended temperature operation, and temperature restrictions associated with the mounting positions.
|
NOTICE |
|
ELECTROSTATIC DISCHARGE |
|
oVerify that empty PCI slots have their covers in place before applying power to the controller. oDo not touch an exposed PCI connector. |
|
Failure to follow these instructions can result in equipment damage. |
|
NOTICE |
|
ELECTROSTATIC DISCHARGE |
|
oStore electronic components in their protective packaging until immediately before assembly. oOnly touch modules on the housing. oTake the necessary protective measures against electrostatic discharges. |
|
Failure to follow these instructions can result in equipment damage. |
The following table describes the different steps to install PCI modules on the controller.
|
Step |
Action |
|
|---|---|---|
|
1 |
Disconnect all power from all equipment prior to removing any covers or installing a PCI module. |
|
|
2 |
Remove the PCI module from the packaging. |
|
|
3 |
Remove the cover of the slot on the controller. NOTE: Keep the cover to reuse it for the deinstallation.
|
|
|
4 |

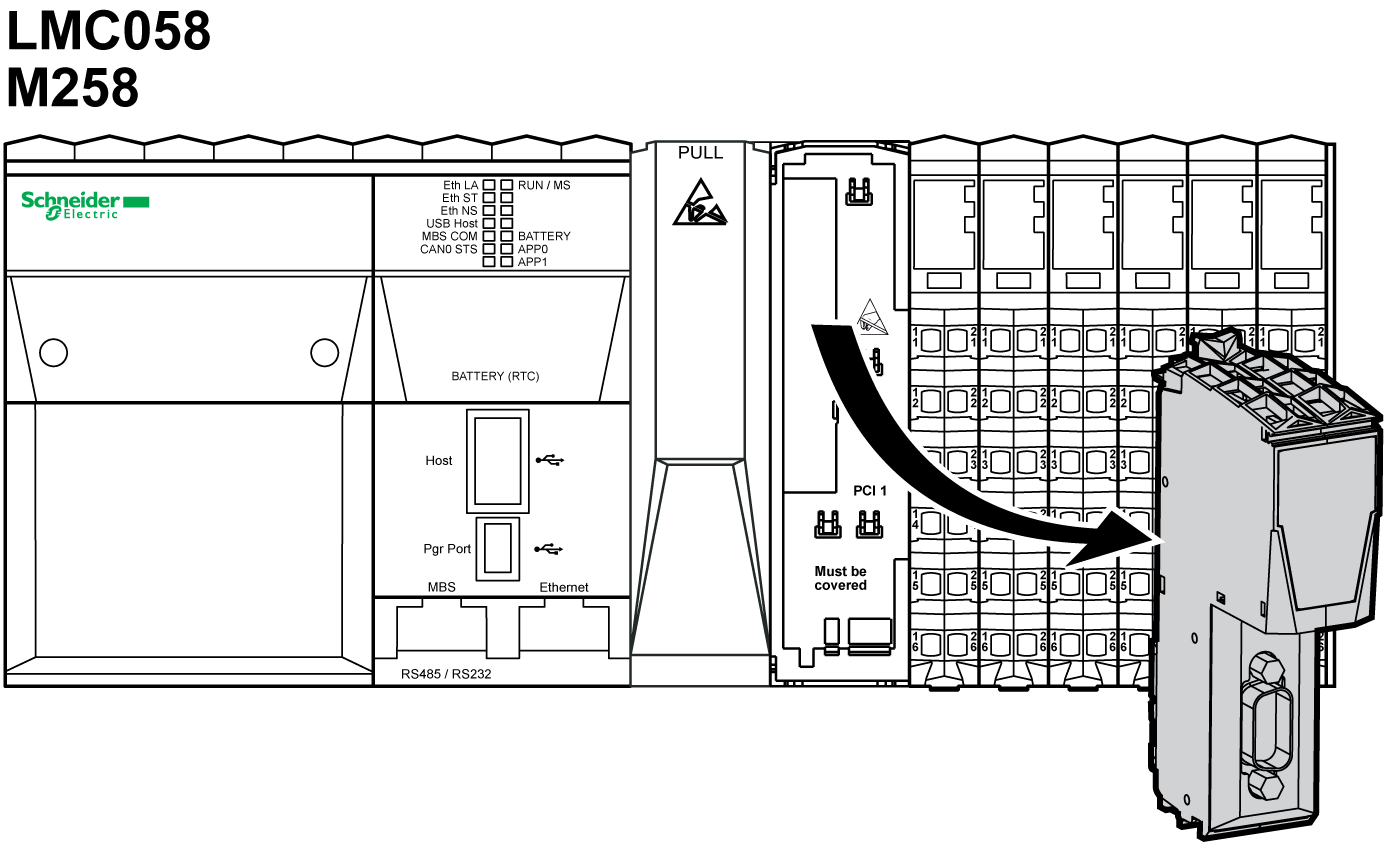

Place the PCI module on the slot of the controller.
|
|
|
5 |

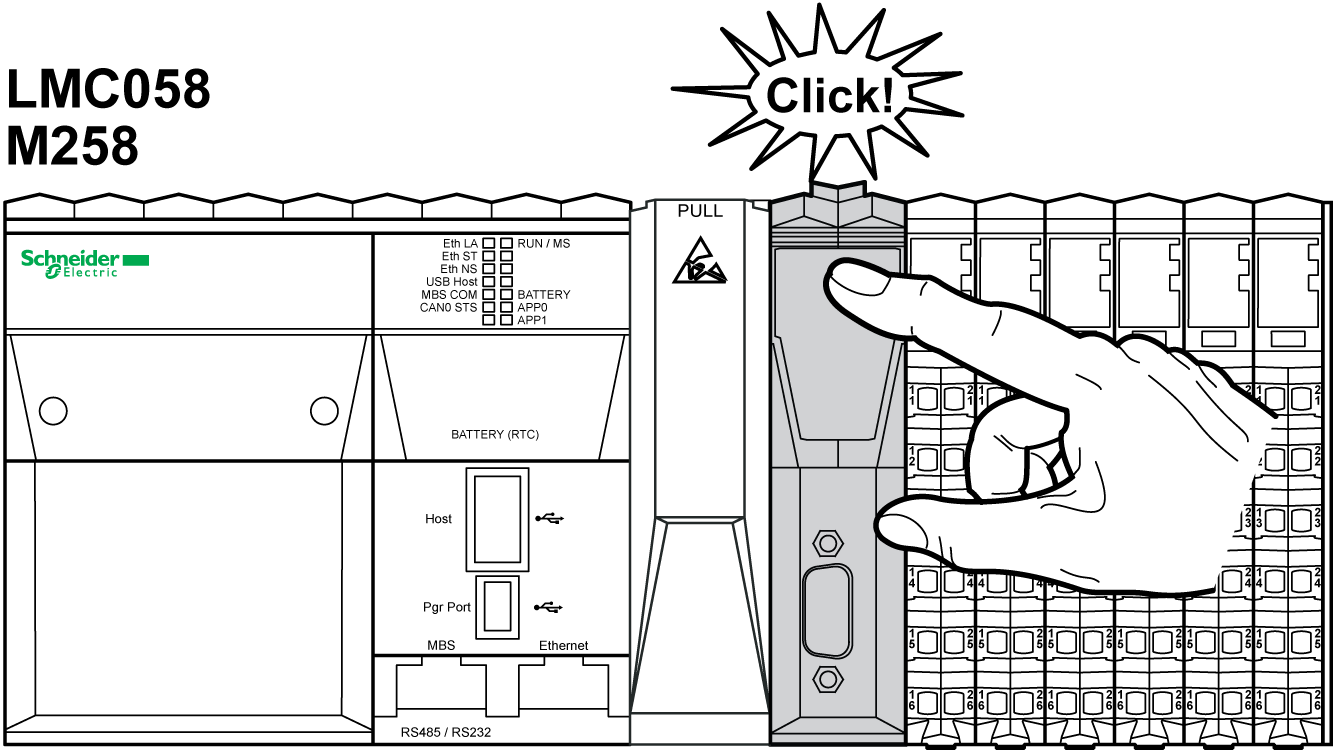

Push the PCI module into the controller until it clicks.
|
|
The following table describes the different steps to de-install PCI modules from the controller.
|
Step |
Action |
|---|---|
|
1 |
Disconnect all power from all equipment, including connected devices, prior to removing a PCI module. |
|
2 |

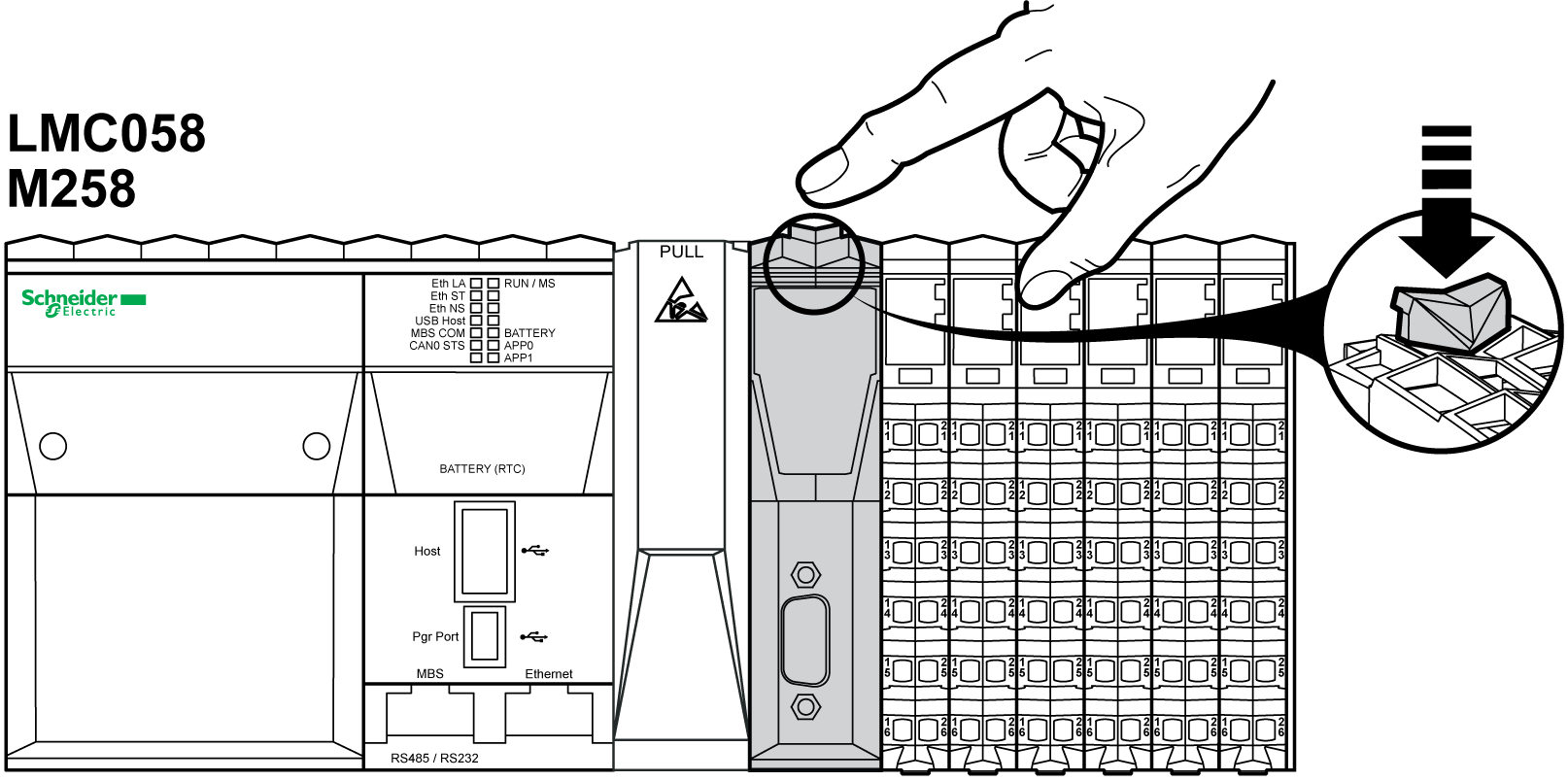

Press the locking clip on the PCI module.
|
|
3 |
Pull the PCI module out from its mounting slot.
|
|
4 |
Put the cover on the slot of the controller.
|
