The table describes the main characteristics of the Profibus DP TM5PCDPS communication electronic module:
|
Main Characteristics |
|
|---|---|
|
Fieldbus |
Profibus DP slave |
|
Interface type |
|
|
Connector type |
D-Sub 9, female |
|
Transfer rate |
12 Mbit/s max. |

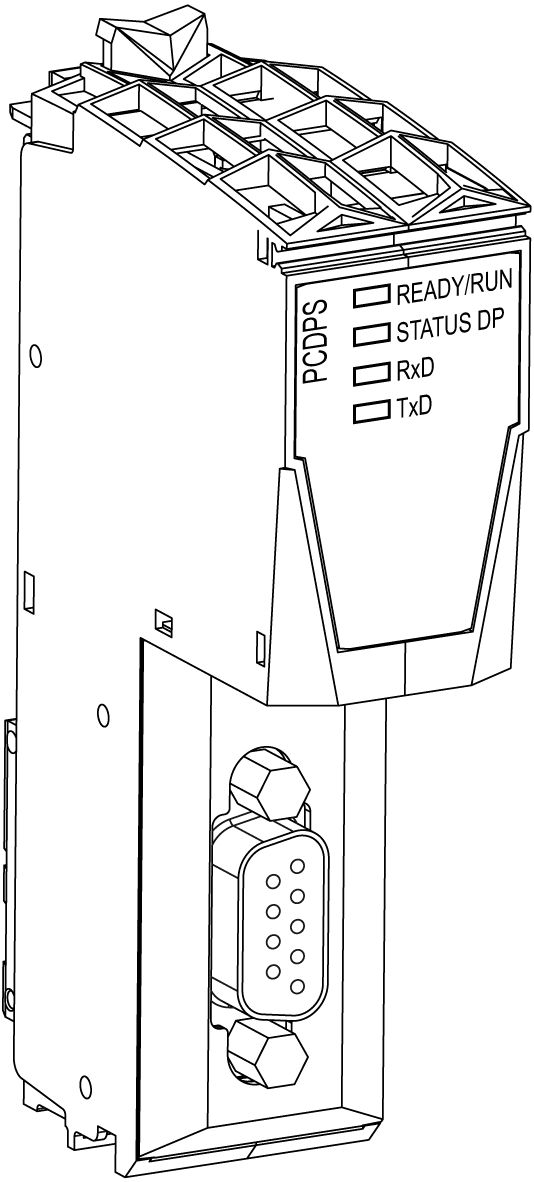

The figure presents the TM5PCDPS:

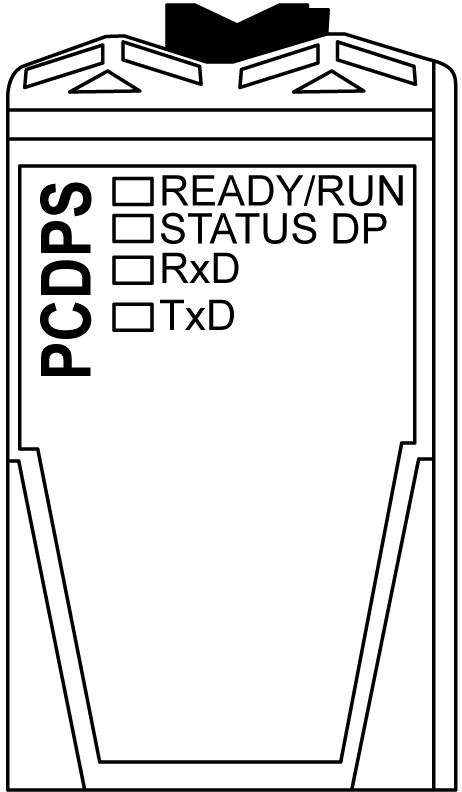

This figure shows the TM5PCDPS status LEDs:
The table shows the description of the TM5PCDPS status LEDs:
|
LEDs |
Color |
Status |
Description |
|---|---|---|---|
|
READY/RUN |
Green / red |
Off |
The module supply is not connected. |
|
Green |
On |
Communication is performed on the PCI bus. |
|
|
Red |
Flashing |
A boot error has been detected. |
|
|
On |
Communication on the PCI bus has not yet been started. |
||
|
STATUS DP |
Green |
On |
The module is in RUN mode, performing cyclic communication. |
|
Red |
On |
The configuration between the slave and master is different. |
|
|
Cyclic Flashing |
The module is in STOP mode, no communication is performed, a connection error has been detected. |
||
|
Acyclic Flashing |
The module is not configured. |
||
|
RxD |
Yellow |
On |
The module is receiving data via the RS485 interface. |
|
TxD |
Yellow |
On |
The module is transmitting data via the RS485 interface. |
