The following features are integrated into the TMC4AI2 cartridge:
o2 analog inputs (voltage or current)
oremovable spring terminal block, 3.81 mm (0.15 in.) pitch
|
Characteristic |
Value |
||
|---|---|---|---|
|
|
Signal type |
Voltage |
Current |
|
Number of input channels |
2 |
||
|
Input range |
0...10 Vdc |
0...20 mA 4...20 mA |
|
|
Resolution |
12 bits (4096 steps) |
||
|
Connection type |
3.81 mm (0.15 in.) pitch, removable spring terminal block |
||
|
Weight |
55 g (1.94 oz) |
||

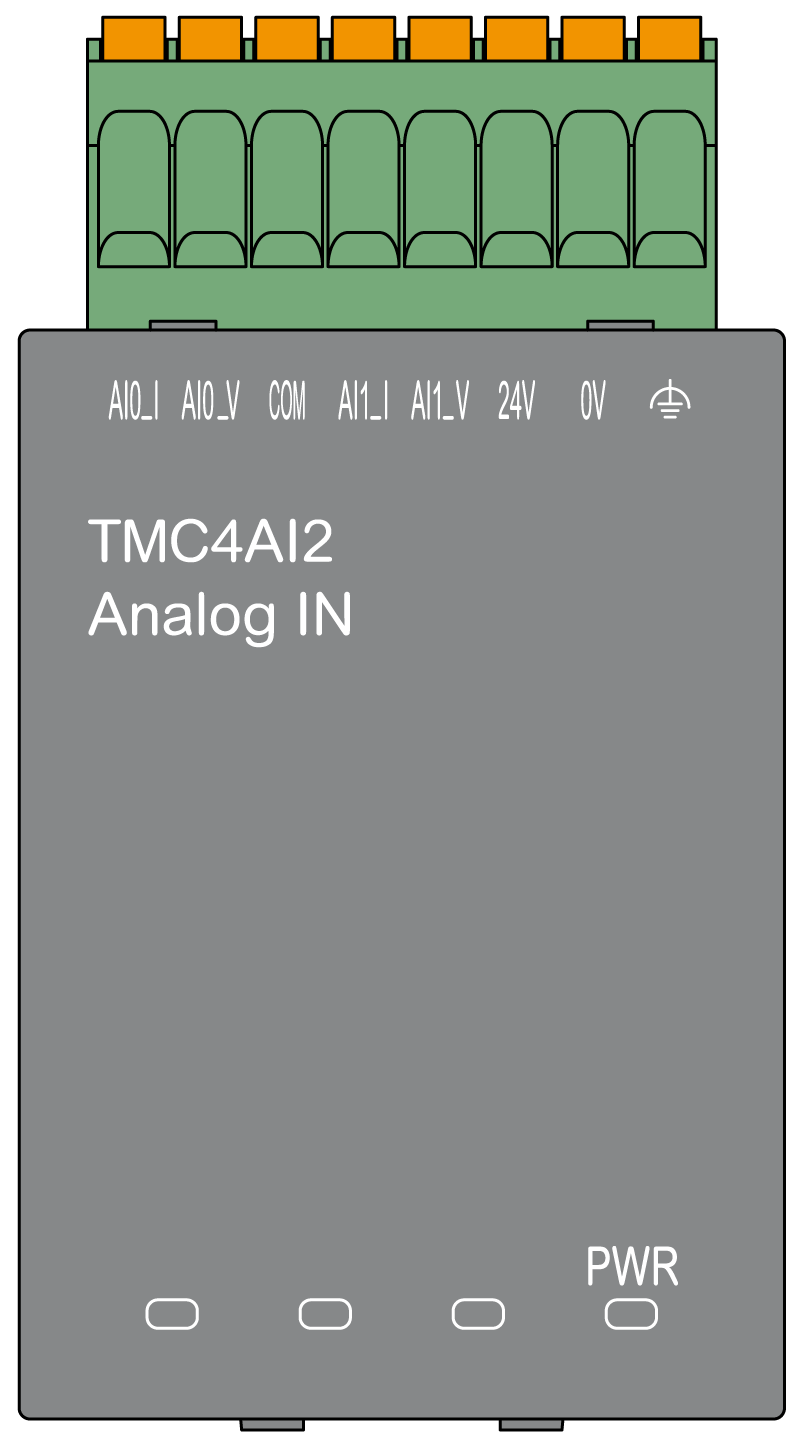

The following diagram shows a TMC4AI2 cartridge with its power LED labeled PWR:
|
LED |
Color |
Status |
Description |
|---|---|---|---|
|
PWR |
Green |
On |
The cartridge is powered by the logic controller and the external power supply (24 Vdc) is applied. |
|
Flashing |
The cartridge is powered by the logic controller but the external power supply (24 Vdc) is not applied. |
||
|
Off |
The cartridge is not powered by the logic controller. |
