This cartridge has a removable spring terminal block for the connection of the outputs.

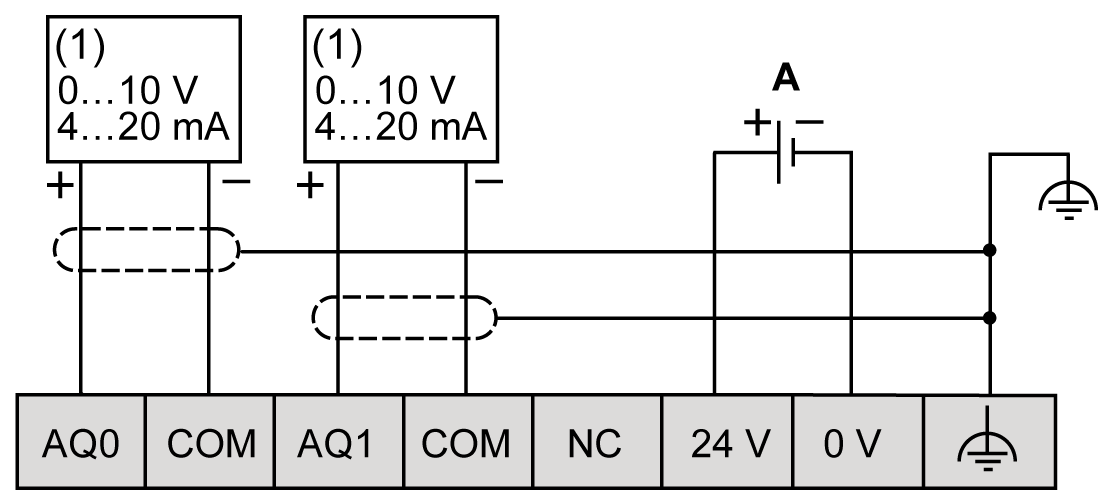

The following figure shows an example of the voltage and current outputs connection:
(1): Current/Voltage analog input device
A: External power supply
NOTE: Each output can be connected either as a voltage or current output.
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Do not connect wires to unused terminals and/or terminals indicated as “No Connection (N.C.)”. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
