This cartridge has a removable spring terminal block for the connection of the inputs.

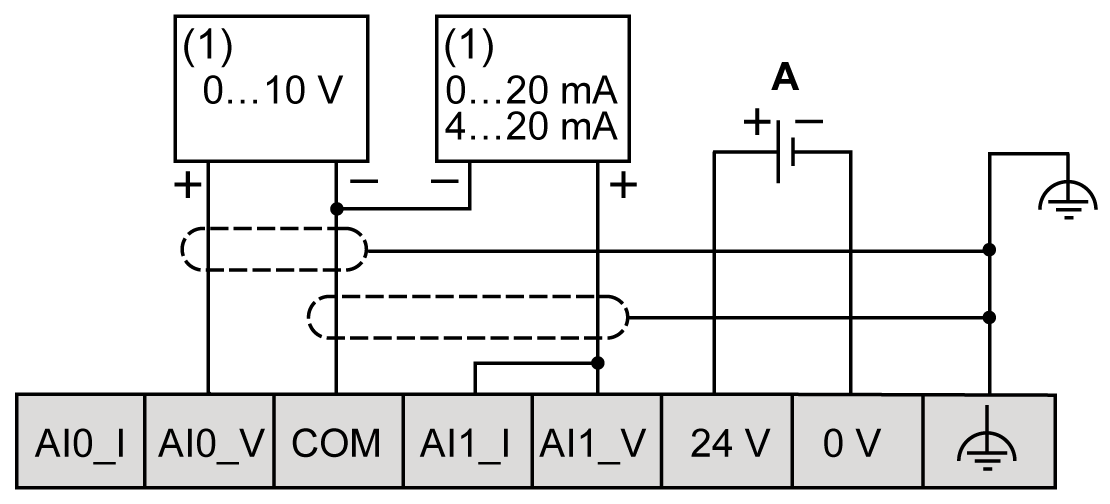

The following figure shows an example of the voltage and current input connection:
(1): Current/Voltage analog output device
A: External power supply
NOTE: Each input can be connected to either a voltage or current input.
