Logic Motion Controller

Overview

Product

Description

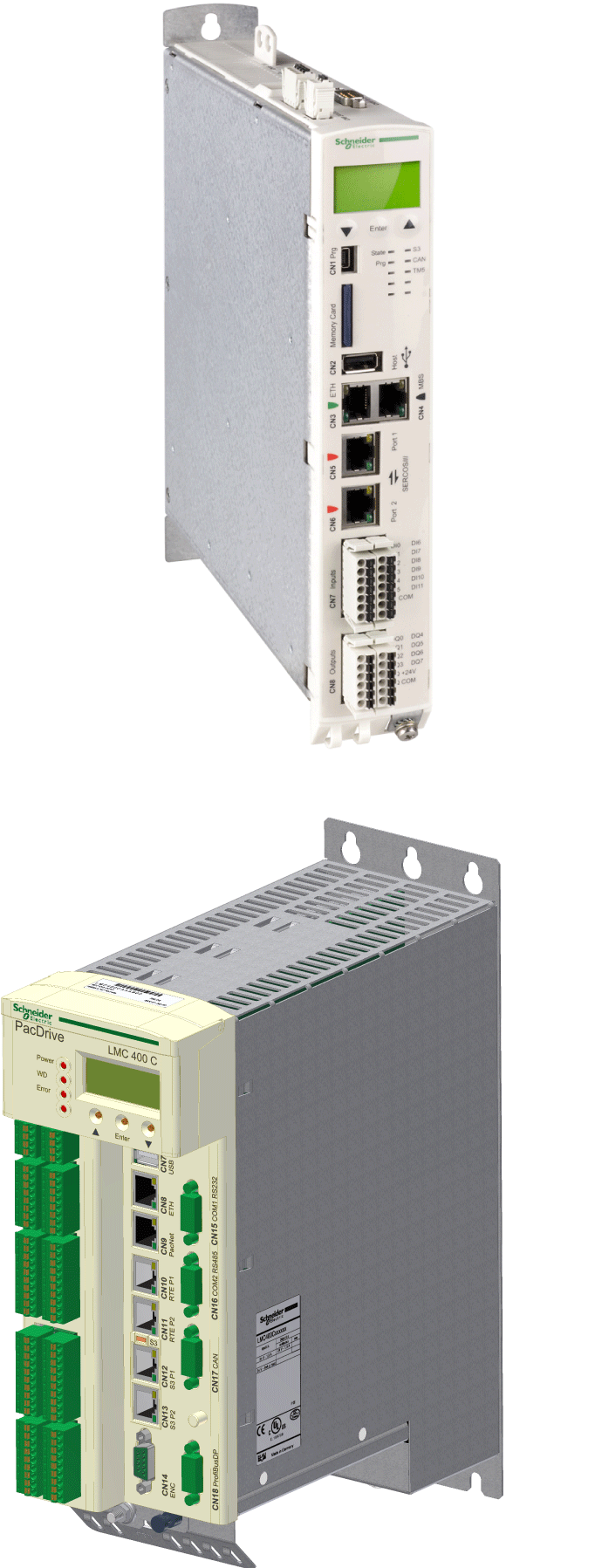

The PacDrive LMC (Logic Motion Controller), with a VxWorks real-time operating system, centrally implements the Logic Controller and motion functions. A PacDrive LMC synchronizes, coordinates, and creates the motion functions of a machine for a maximum of:

  • 0 Sercos servo drives for the controller PacDrive LMC100

  • 4 Sercos servo drives for the controller PacDrive LMC101

  • 6 Sercos servo drives for the controller PacDrive LMC106

  • 8 Sercos servo drives for the controller PacDrive LMC201

  • 12 Sercos servo drives for the controller PacDrive LMC212

  • 16 Sercos servo drives for the controller PacDrive LMC216

  • 8 Sercos servo drives for the controller PacDrive LMC300

  • 16 Sercos servo drives for the controller PacDrive LMC400

  • 16 Sercos servo drives for the controller PacDrive LMC402

  • 99 Sercos servo drives for the controller PacDrive LMC600

  • 130 Sercos servo drives for the controller PacDrive LMC802

  • 130 Sercos servo drives for the controller PacDrive LMC902.
