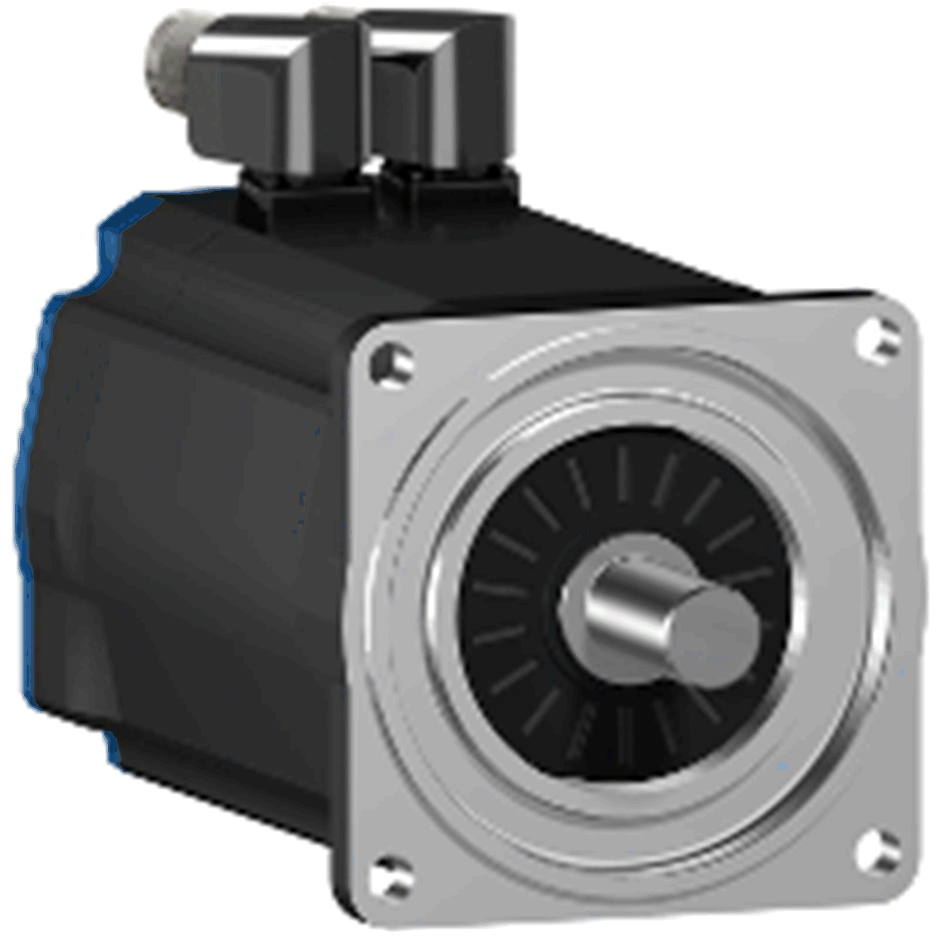

SH3 Servo Motor
Overview
|
Product |
Description |
|---|---|
|
The SH3 motors are low-inertia AC synchronous servo motors designed for highly dynamic positioning tasks. A drive system consists of the servo motor and the drive. Maximum performance requires the motor and drive to be adapted to each other. |
High Dynamic AC Servo Motors
Because of the low inertia and a high overload capability, the motor SH3 fulfills many requirements concerning the accuracy, dynamics, and efficiency.
The SH3 motors are available in six different flange sizes:
-
SH3-040 (40 mm / 1.57 in.)
-
SH3-055 (55 mm / 2.17 in.)
-
SH3-070 (70 mm / 2.76 in.)
-
SH3-100 (100 mm / 3.94 in.)
-
SH3-140 (140 mm / 5.51 in.)
-
SH3-205 (205 mm / 8.07 in.)
Characteristics
The motors have the following features:
-
Overload protection by integrated temperature sensor (external evaluation required)
-
Low moment of inertia
-
High power density
-
Excellent dynamics
-
High overload capability
-
Broad torque range
-
Special winding for low phase currents
-
Motor connection via circular connectors
-
Easy commissioning via electronic nameplate in SinCos encoder
-
Low maintenance
