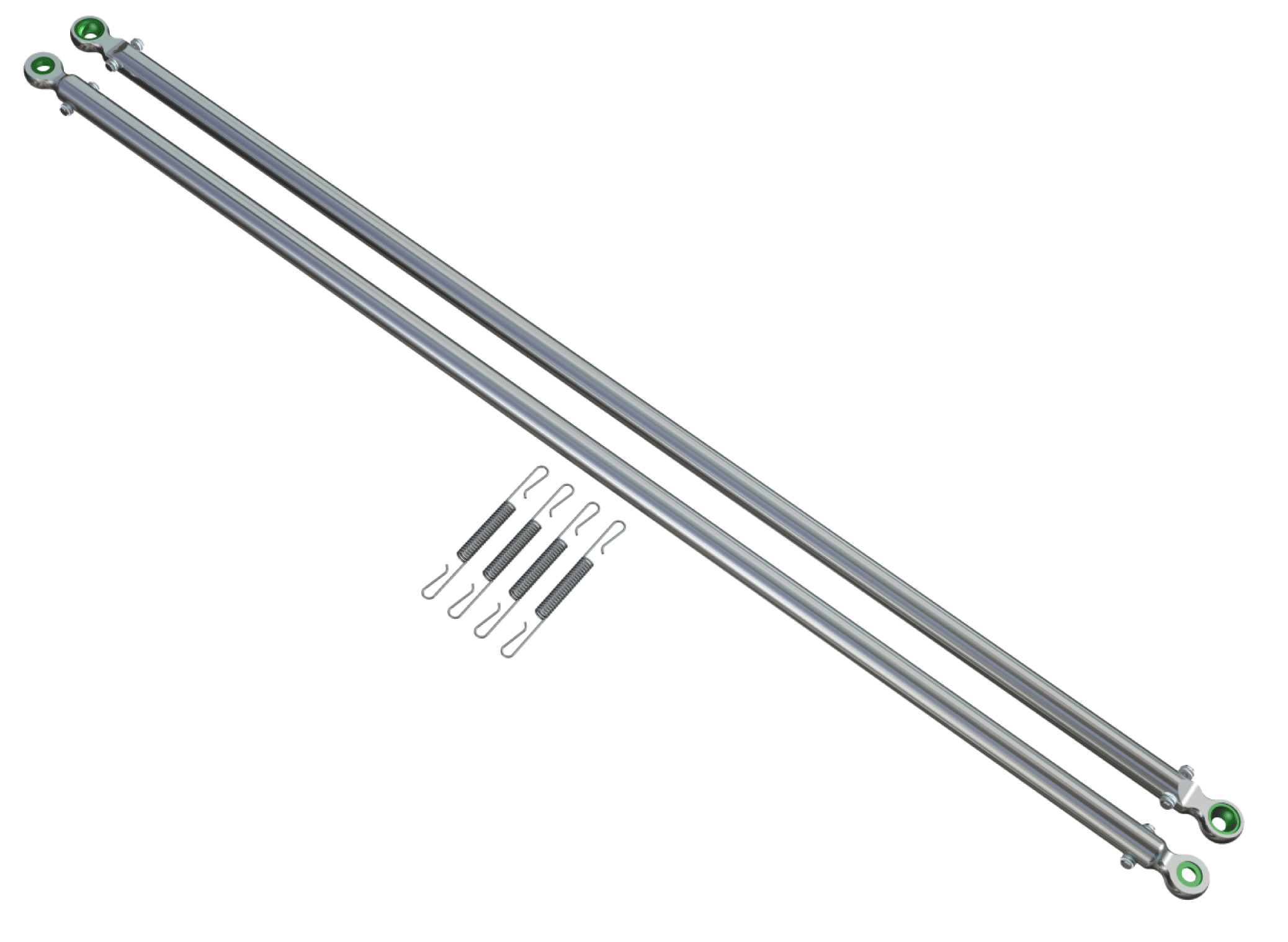

Lower arms pair with rolls, sockets, and springs:
-
2x lower arm complete
-
4x springs
|
|
VRKP2YYYYY00004
|
VRKP2
|
|
VRKP4YYYYY00004
|
VRKP4
|
|
VRKP5YYYYY00004
|
VRKP5
|
|
VRKP6YYYYY00004
|
VRKP6
|
|
VRKP6YYYYY00E04
|
VRKP6•••••••E00
|
|

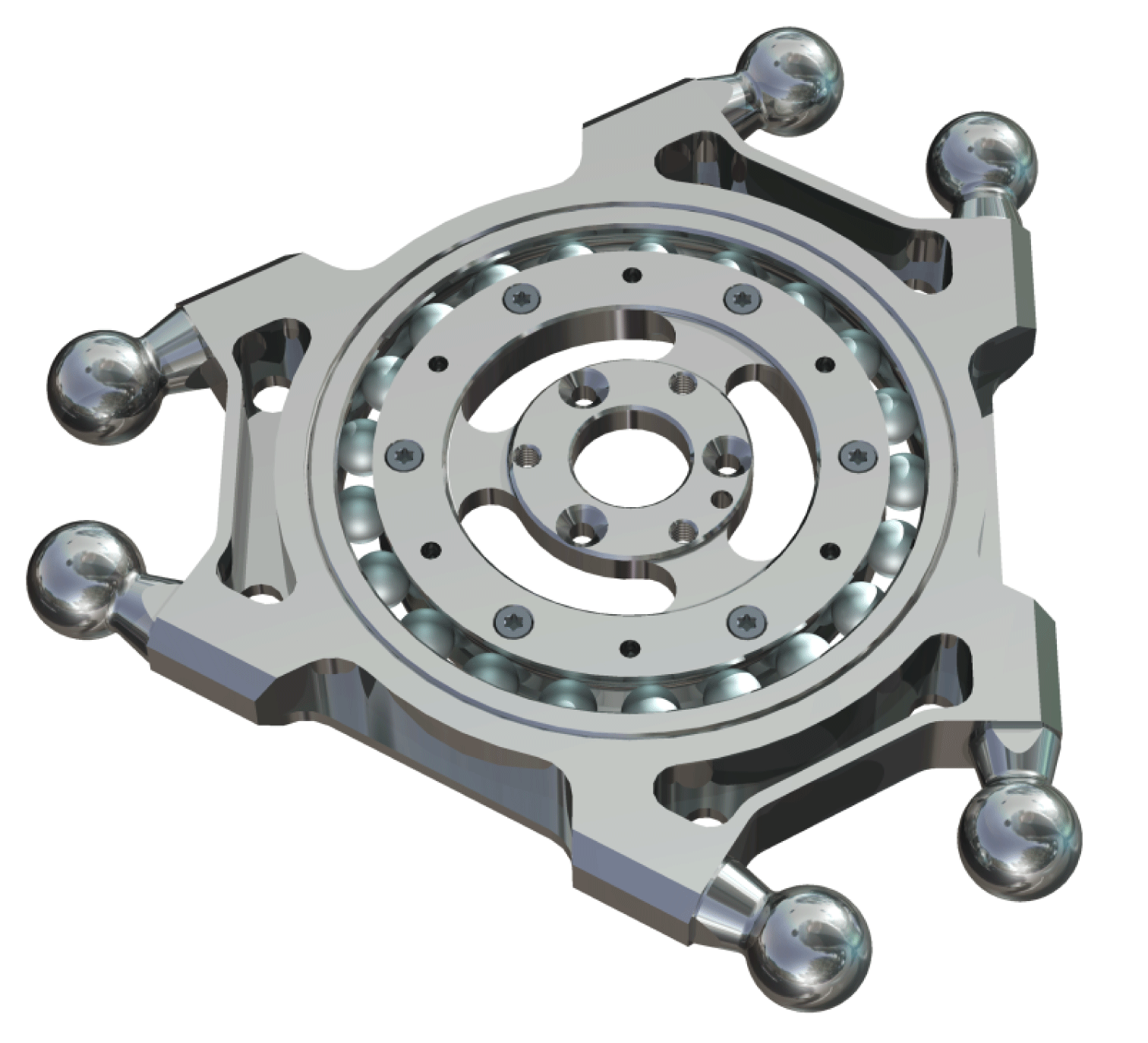

Stainless steel parallel plate with bearing and ball pins:
|
|
VRKP4YYYYY00005
|
All Lexium P robots
|
|

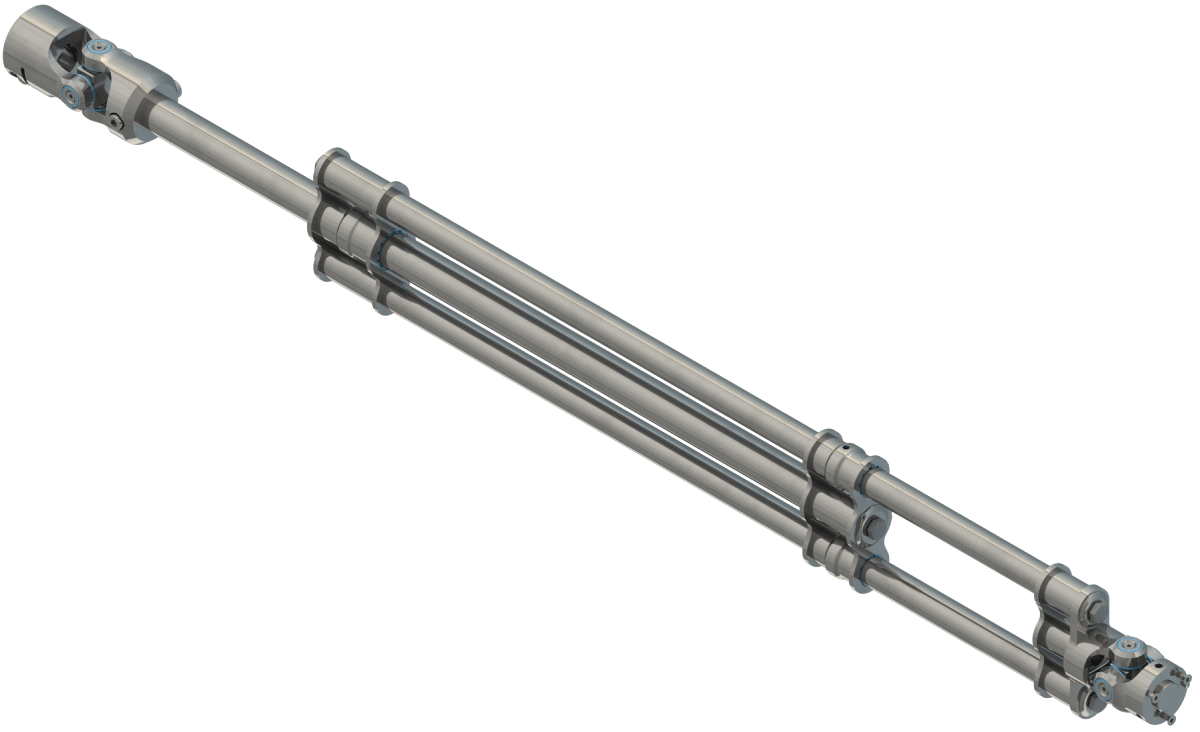

Telescopic Axis Double with universal joints:
|
|
VRKP2YYYYY00007
|
VRKP2
|
|
VRKP4YYYYY00007
|
VRKP4
|
|
VRKP5YYYYY00007
|
VRKP5
|
|
VRKP6YYYYY00007
|
VRKP6
|
|
VRKP6YYYYY00E07
|
VRKP6•••••••E00
|
|

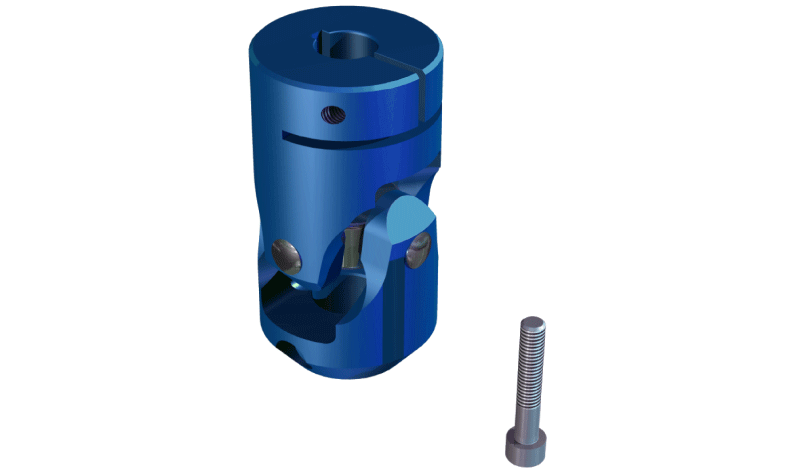

Plastic upper universal joint with fastener:
|
|
VRKP4YYYYY00008
|
All Lexium P robots
|
|

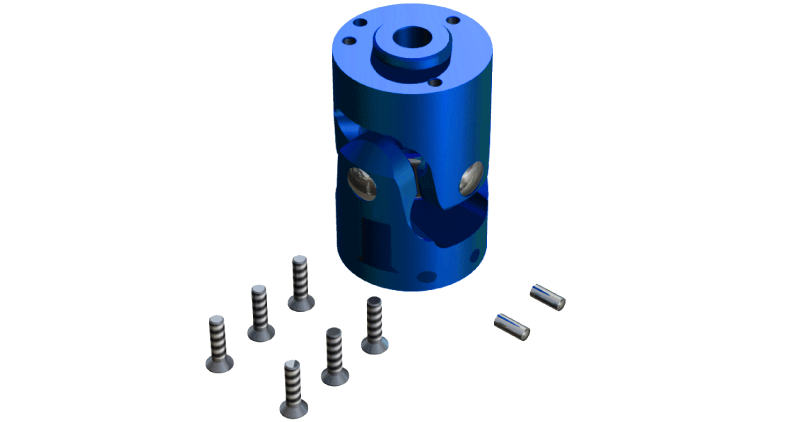

Plastic lower universal joint with fasteners and indexing bolt:
-
1x plastic lower universal joint
-
6x countersunk screw universal joint
-
1x straight pin universal joint
|
|
VRKP4YYYYY00009
|
All Lexium P robots
|
|

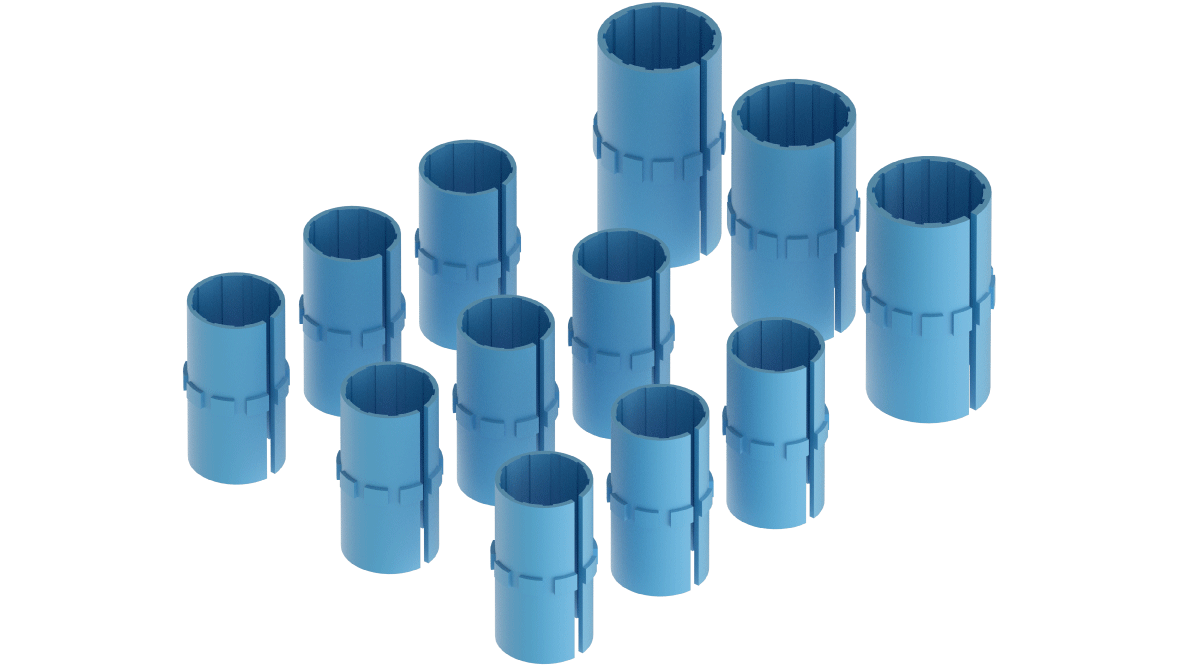

Food grade slide films, three sets:
|
|
VRKP4YYYYY00013
|
All Lexium P robots
|
|

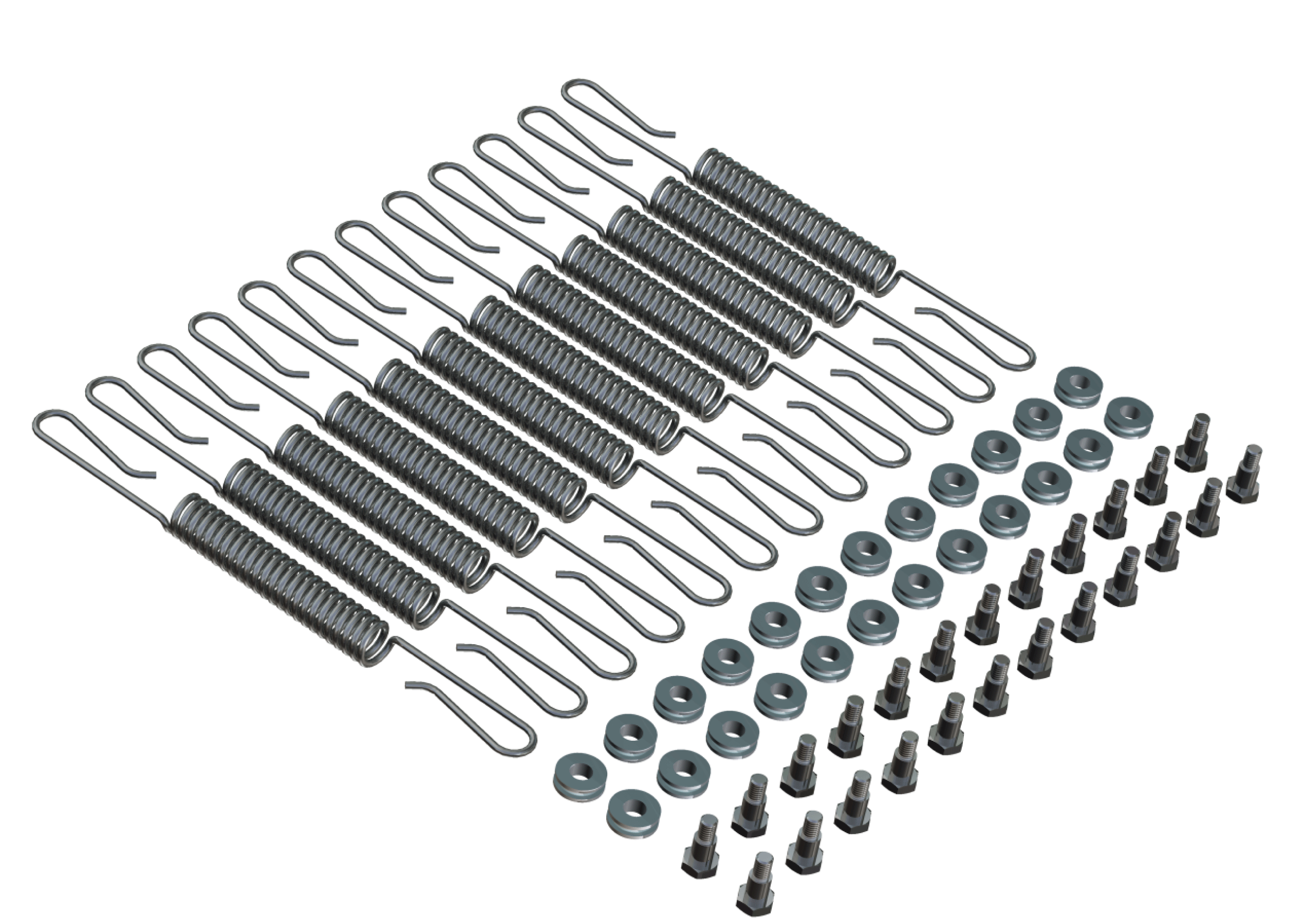

Springs, rolls, and fasteners. Set for one robot:
-
12x springs
-
24x roll
-
24x screw
|
|
VRKP4YYYYY00023
|
All Lexium P robots
|
|

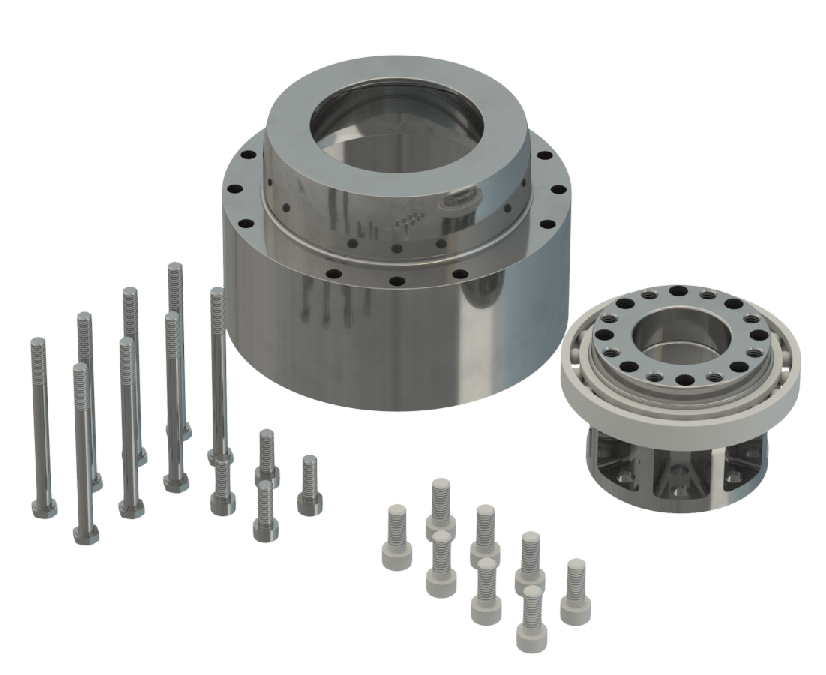

Gearbox Leakage Protection for the main axis with fasteners:
-
1x protection box for gearbox
-
1x output-flange-extension
-
8x screw for output-flange-extension
-
4x screw for protection box / gearbox
-
12x screw for protection box / housing
|
|
VRKPXYYYYY00031
|
VRKP2
VRKP4
VRKP5
VRKP6
|
|

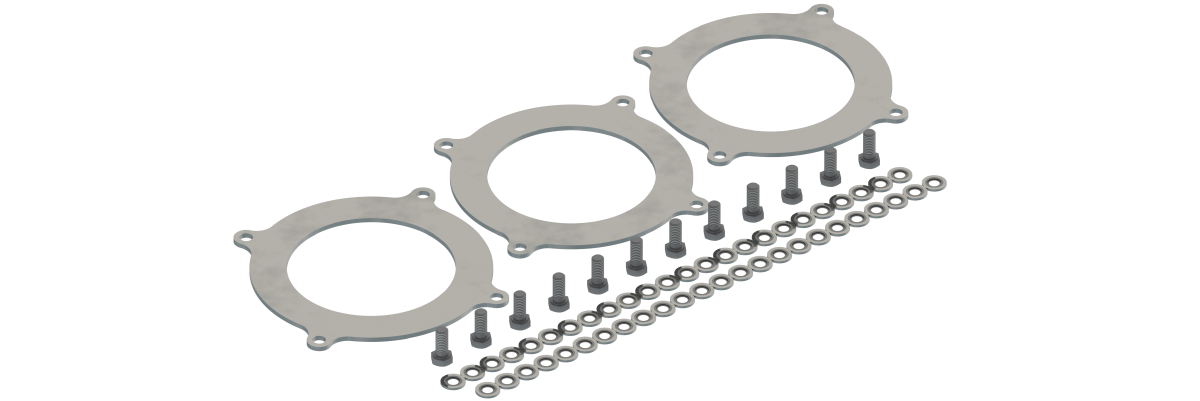

Impact Plate for the main axis with fasteners. Set for one robot:
|
|
VRKP1YYYYY00035
|
VRKP0
VRKP1
|
|
VRKPXYYYYY00035
|
VRKP2
VRKP4
VRKP5
VRKP6
|
|

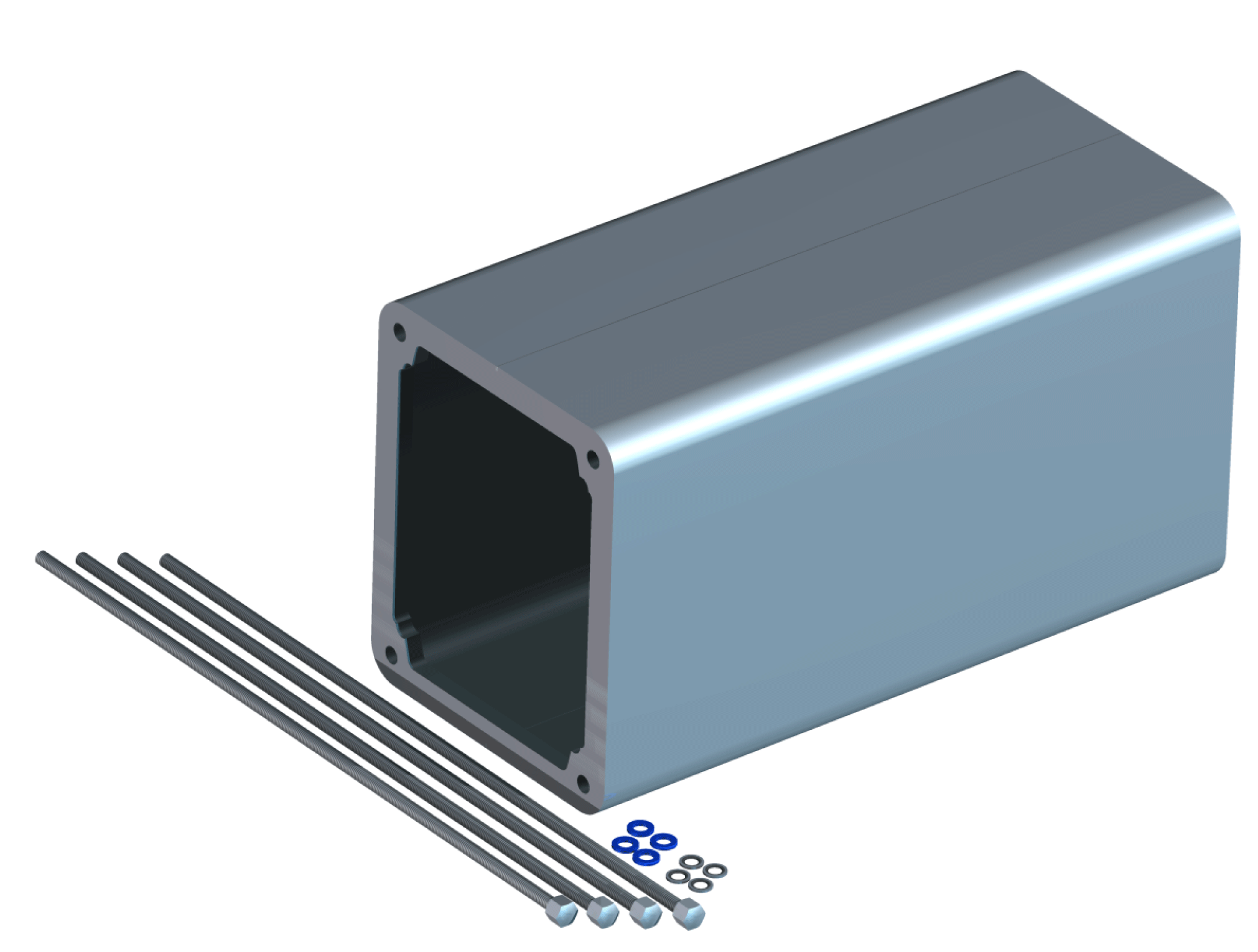

Motor cover extended with fasteners - without sealing:
-
1x motor cover extended
-
4x threaded rod
-
4x sealing washer
-
4x lock washer
|
|
VRKPXYYYYY00036
|
VRKP2•••WD
VRKP4•••WD
VRKP4•••NO
VRKP4•••CW
VRKP4•••WF
VRKP5•••WF
VRKP6•••WF
for robots with Gearbox Leakage Protection
|
|
Lexium P

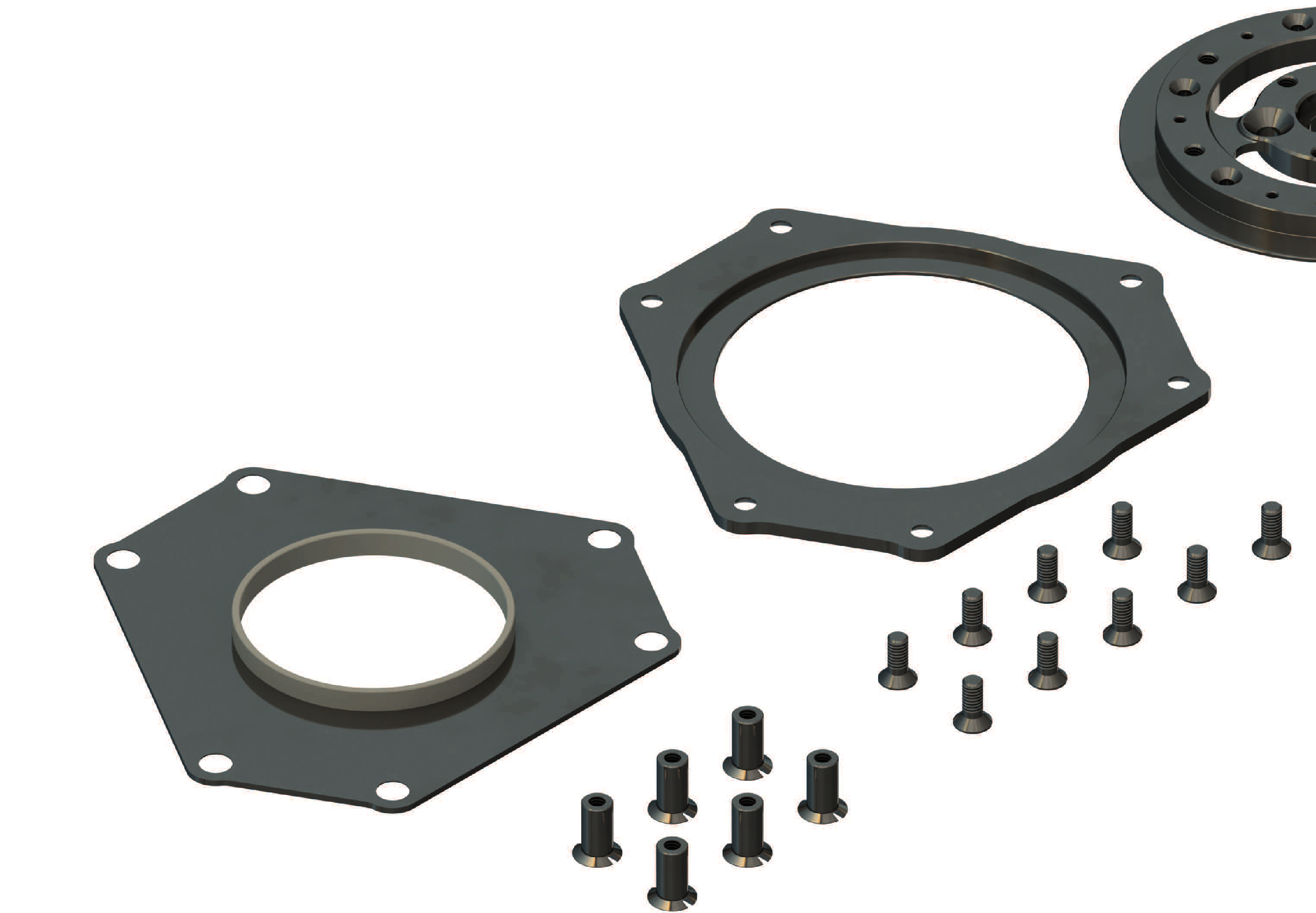

Parallel Plate Bearing Protection:
-
1x cover top side
-
1x flange offset ring
-
1x cover bottom side
-
6x collar nut
-
6x screw for cover bottom side
-
9x screw for flange offset ring
-
1x straight pin flange offset ring
|
|
VRKPXYYYYY00042
|
VRKP•••R
|
|

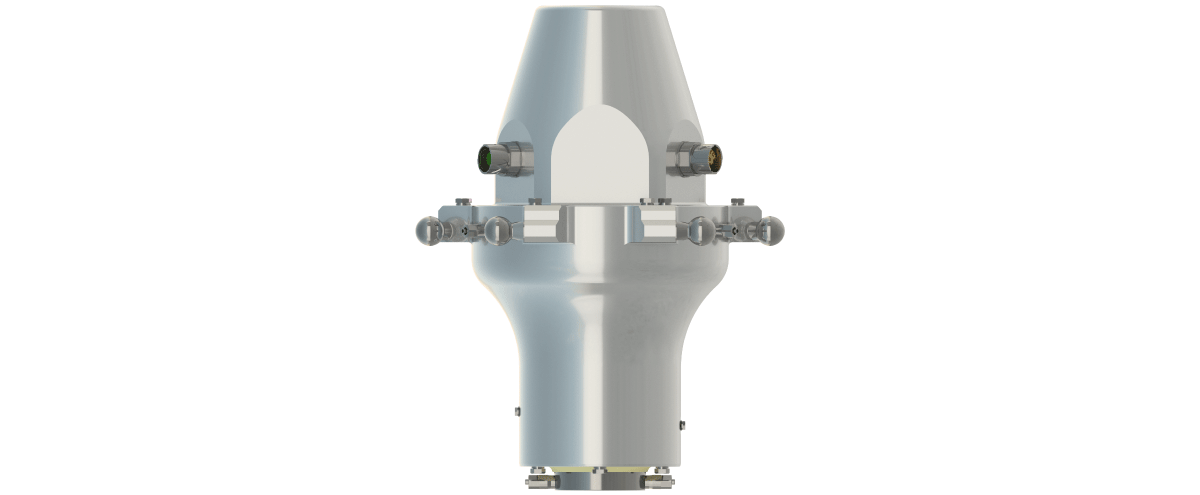

Lexium P Double Rotational Module:
|
|
VRKPXYYYYY00038
|
All Lexium P robots
|
|

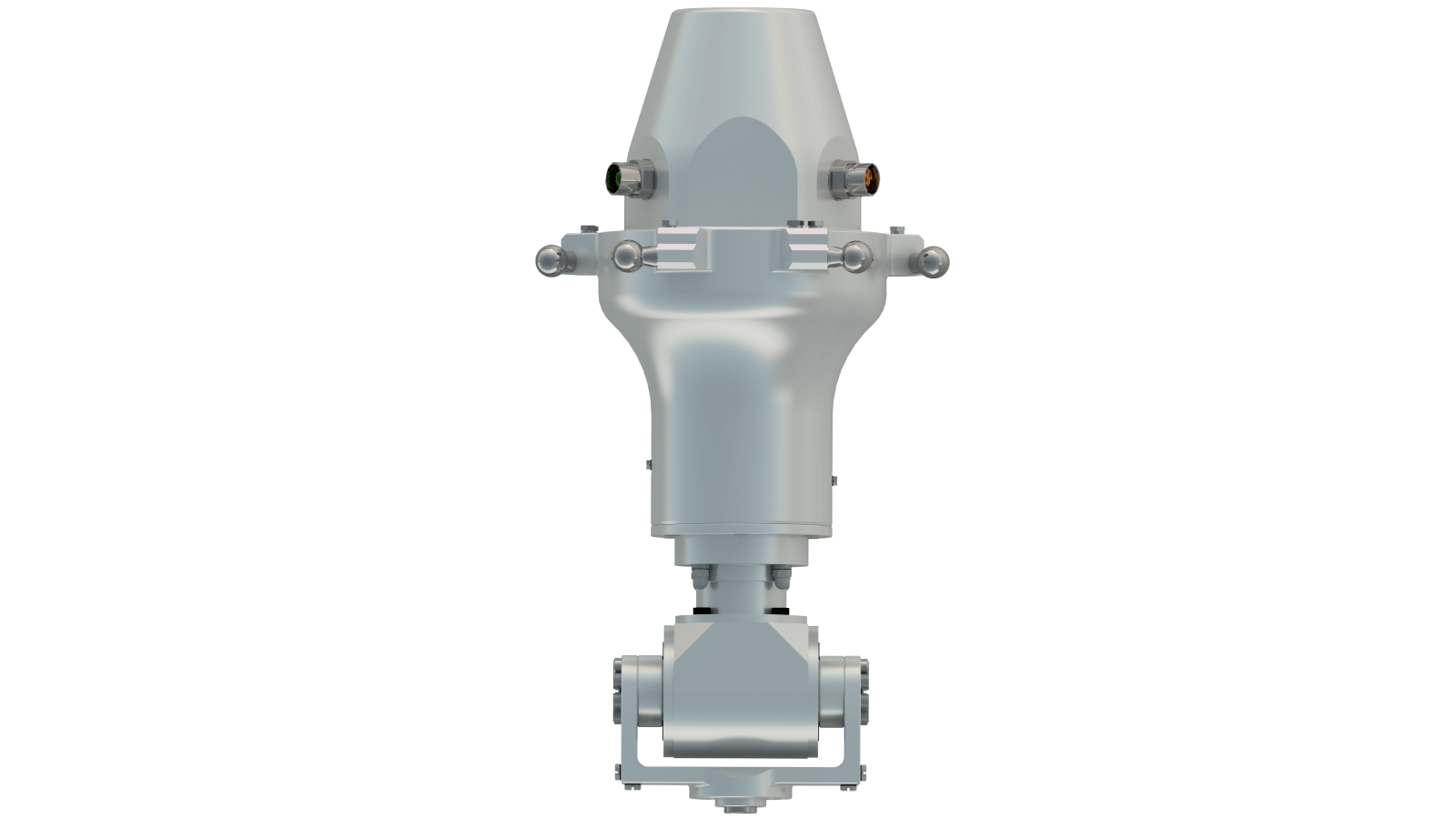

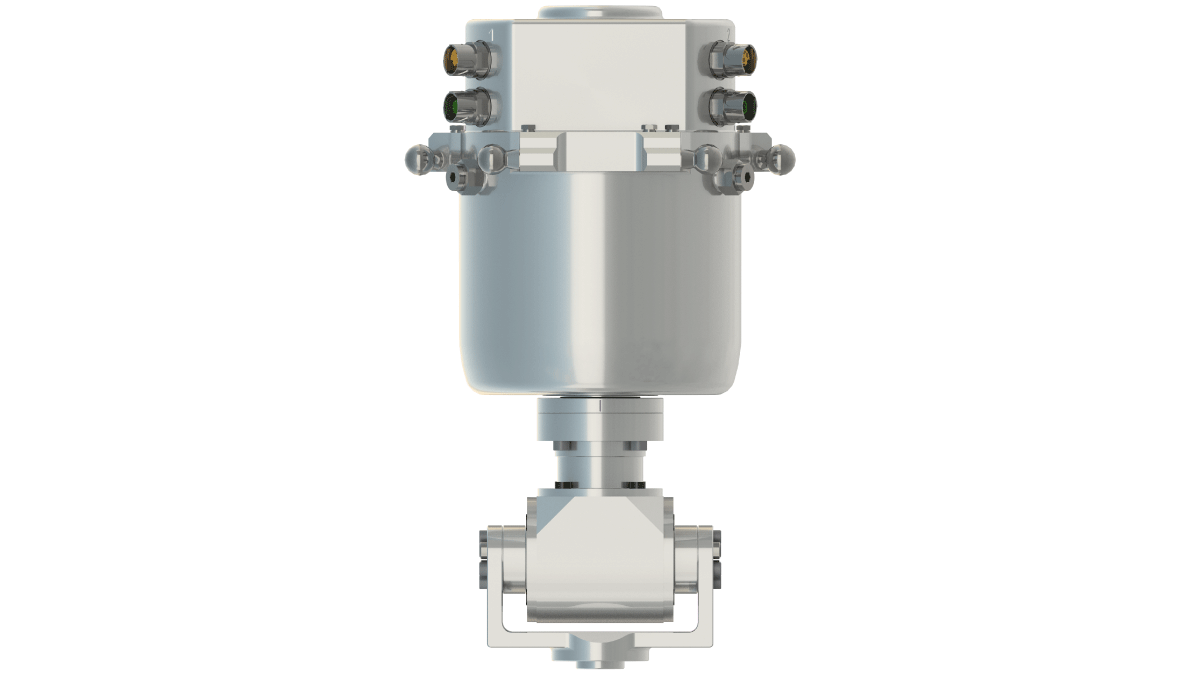

Lexium P Rotational Tilting Module:
|
|
VRKPXYYYYY00039
|
All Lexium P robots
|
|

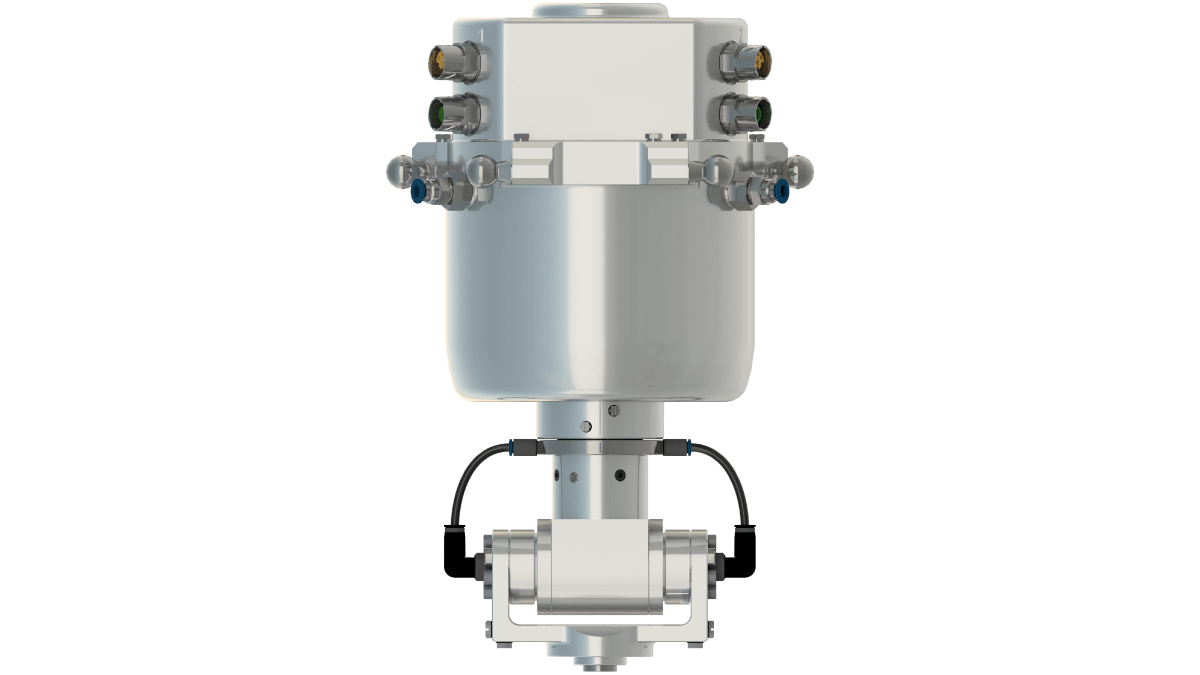

Lexium P Rotational Tilting Module HD:
|
|
VRKPXYYYYY00041
|
All Lexium P robots
|
|

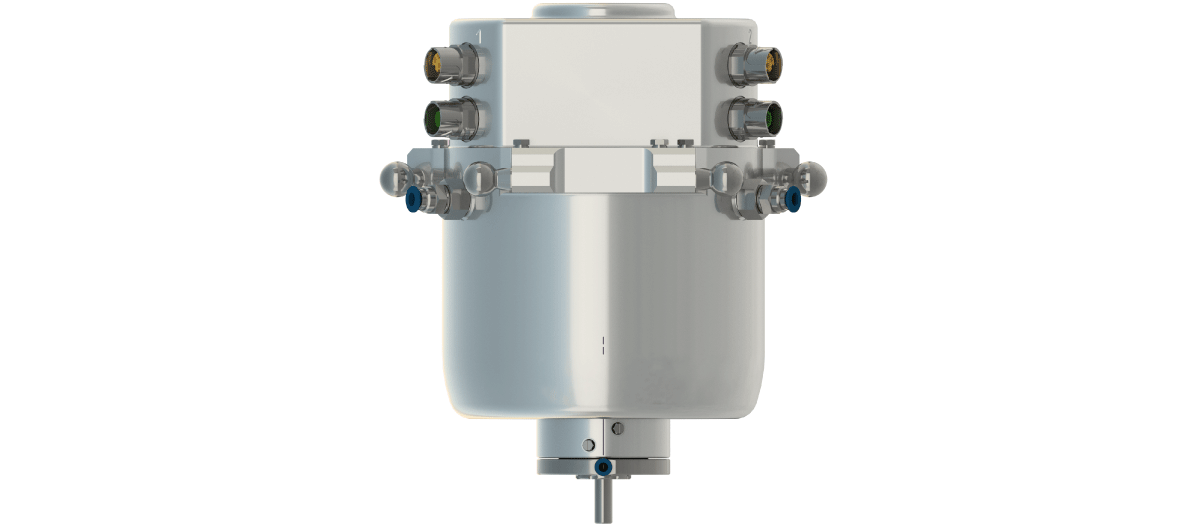

Lexium P Rotational Module B:
|
|
VRKPXYYYYY00045
|
All Lexium P robots
|
|

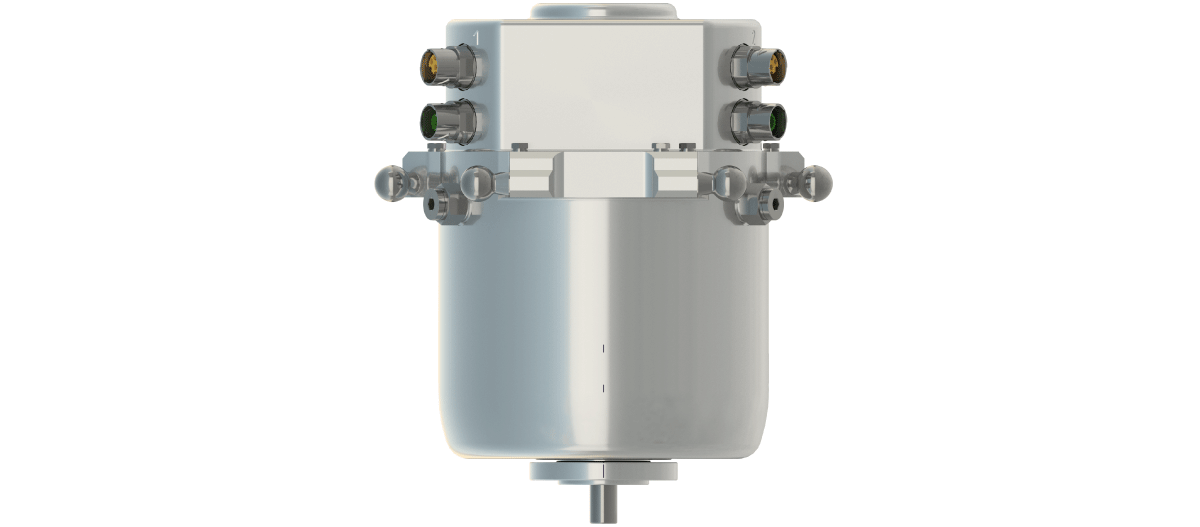

Lexium P Rotational Module HT-B:
|
|
VRKPXYYYYY00046
|
All Lexium P robots
|
|
Lexium P Double Rotational Module HD:
|
|
VRKPXYYYYY00049
|
All Lexium P robots
|
|
Lexium P Rotational Tilting Module HD-B:
|
|
VRKPXYYYYY00050
|
All Lexium P robots
|
|
Lexium P Tilting Module HT-B-HD:
|
|
VRKPXYYYYY00052
|
All Lexium P robots
|
|
Lexium P Tilting Module B:
|
|
VRKPXYYYYY00053
|
All Lexium P robots
|
|

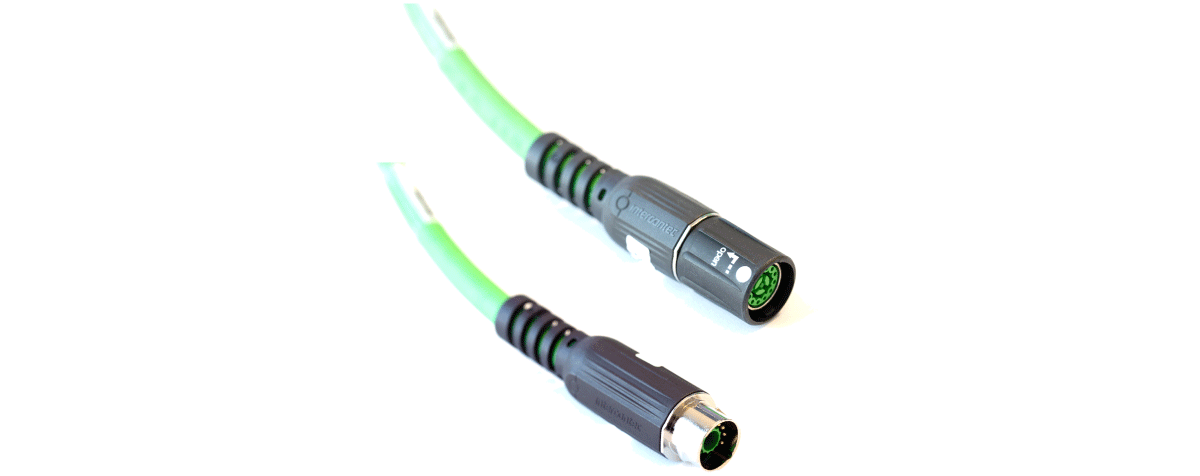

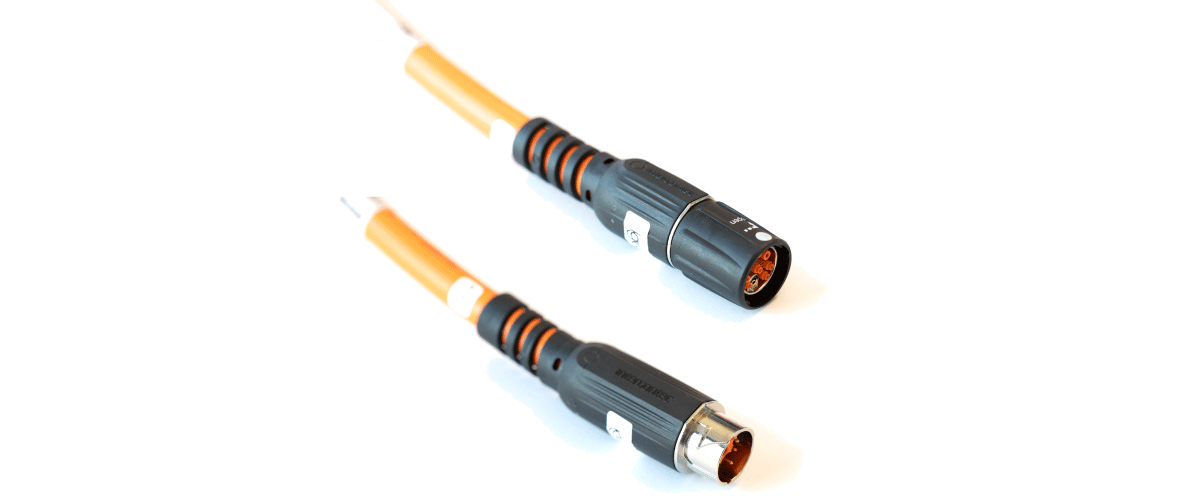

Encoder extension cable for the optional modules:
|
|
VW3E2100R030
|
VRKP0
VRKP1
VRKP2
VRKP4
|
|
VW3E2100R043
|
VRKP5
VRKP6
|
|
Power extension cable for the optional modules:
|
|
VW3E1168R030
|
VRKP0
VRKP1
VRKP2
VRKP4
|
|
VW3E1168R043
|
VRKP5
VRKP6
|
