Dimensions and Drilling Templates

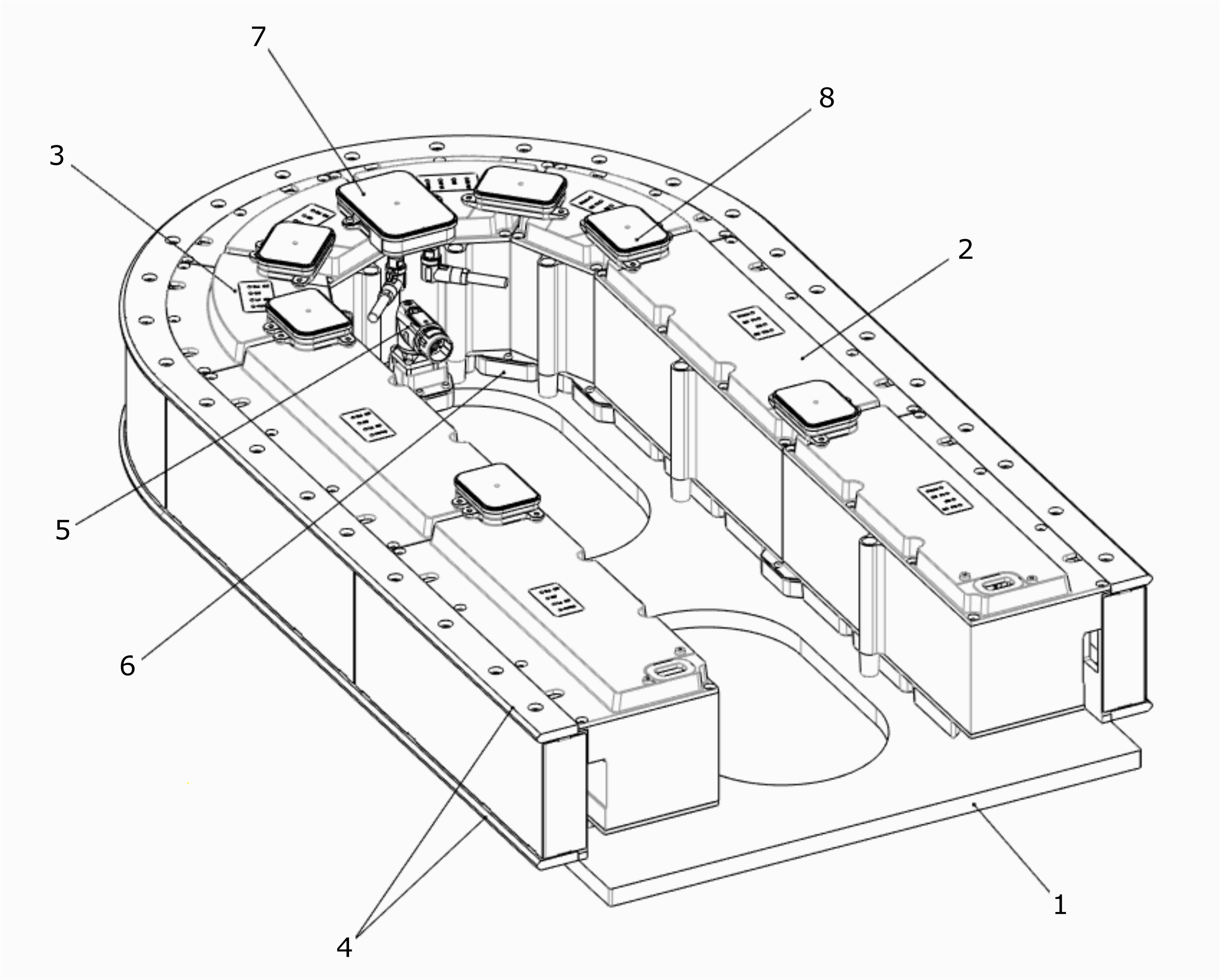

Layout Example – Components Overview

1 Mounting plate

2 Lexium™ MC12 long stator motor segment straight

3 Lexium™ MC12 long stator motor segment arc

4 Lexium™ MC guide rails

5 Lexium™ MC power interconnect (with power infeed connector)

6 Lexium™ MC power interconnect (plain)

7 Lexium™ MC communication interconnect (with two Sercos connectors)

8 Lexium™ MC communication interconnect (plain)

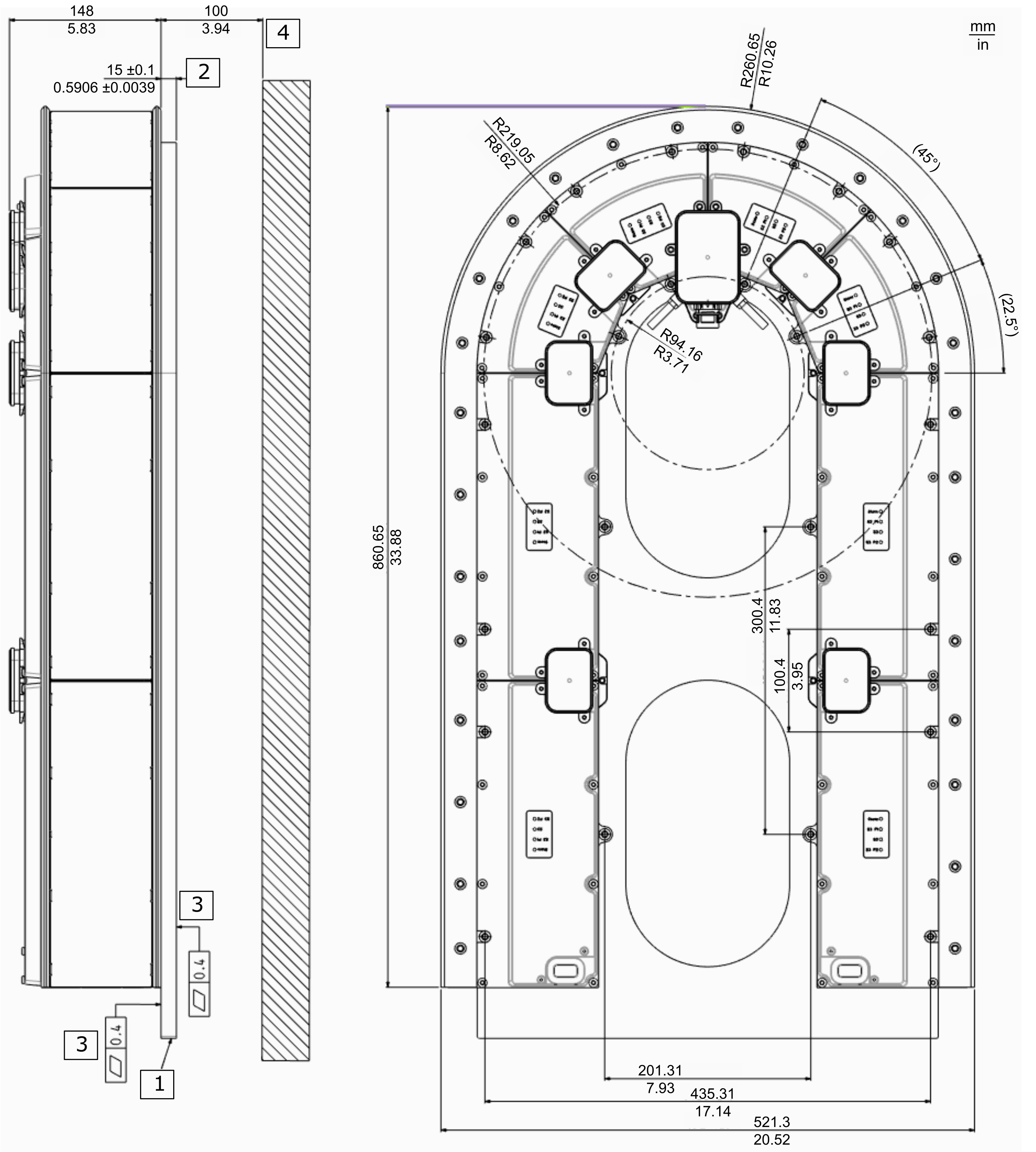

Dimensions

You can download the CAD files of the individual components from the Schneider Electric homepage.

1 Aluminum alloy Al 5754-0 H111 or an alloy with similar mechanical properties

2 Minimum required thickness of the mounting plate (aluminium)

3 Minimum required mounting plate flatness per meter

4 Minimum required free space below the rails

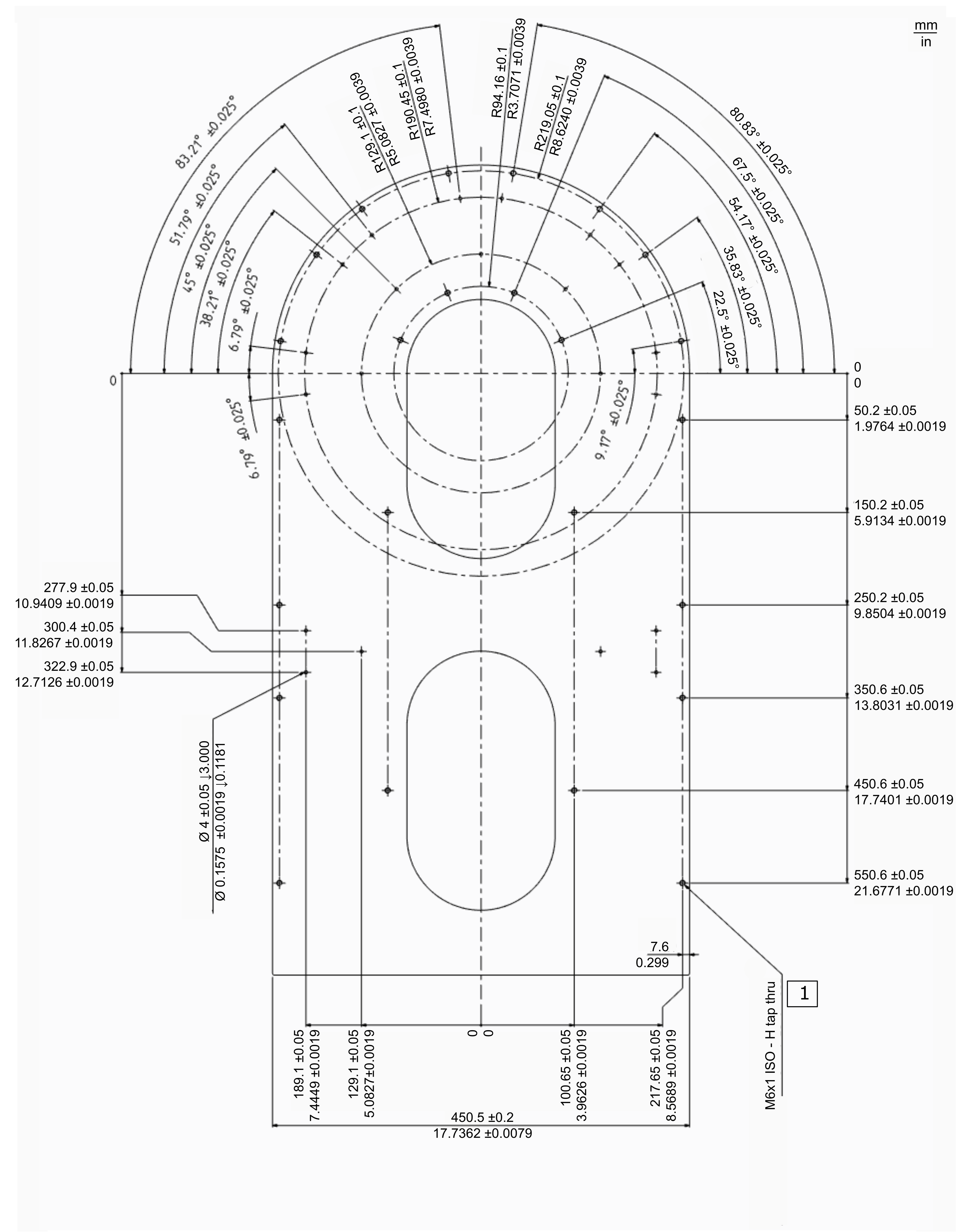

Drilling Template – Mounting Plate

You can download the CAD files of the individual components from the Schneider Electric homepage.

1 Required hole depth = 15 mm (0.59 in)

Drilling Template – Carrier (Side view)

You can download the CAD files of the individual components from the Schneider Electric homepage.

Drilling Template – Carrier (Top view)

You can download the CAD files of the individual components from the Schneider Electric homepage.
