First Commissioning with SoMove
It is a good practice to use the SoMove software for the first commissioning of the ATV340S with a motor. For further information, refer to the Schneider Electric SoMove website.
The parameters FR1 and CD1 are by default set to Embedded ethernet source / Ethernet embedded source.

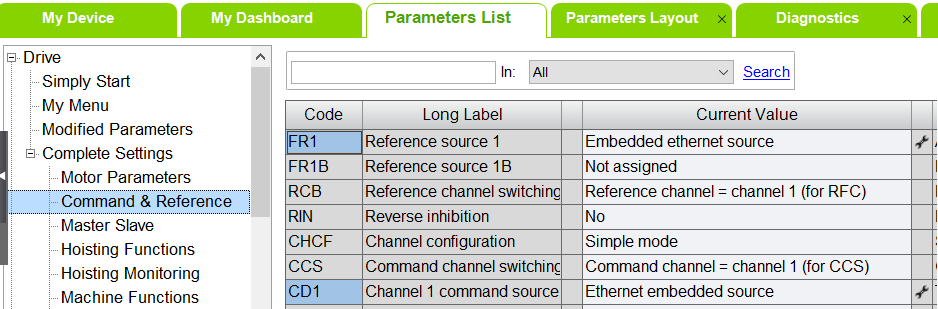

Verify the settings in the Parameters List tab as indicated in the graphic:
